Replacing Heating Element For Rear Seat
WARNING: This page is about a different variant/trim than selected.
- Position heating element -1-
on seat.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

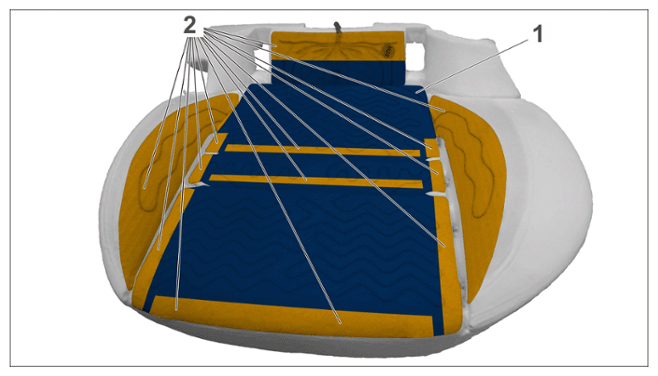

Seat heating element
- Pull protective film in area -2-
off the bonding areas.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

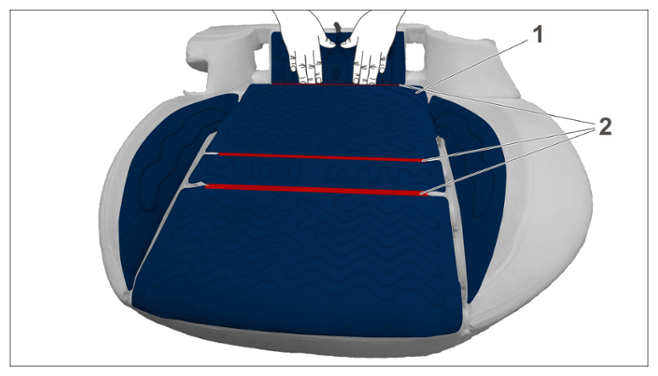

Seat heating element
- Press heating element -1-
on firmly in area -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Seat heating element
- Press heating element -1-
in area -2-
into the grooves.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Seat heating element
