Replacing Heating Element For Front Backrest

WARNING: This page is about a different variant/trim than selected.
  1. Position heating element -1-  on backrest.
    G15874670Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest heating element

  2. Pull protective film in area -2-  off the bonding areas.
    G15874671Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest heating element

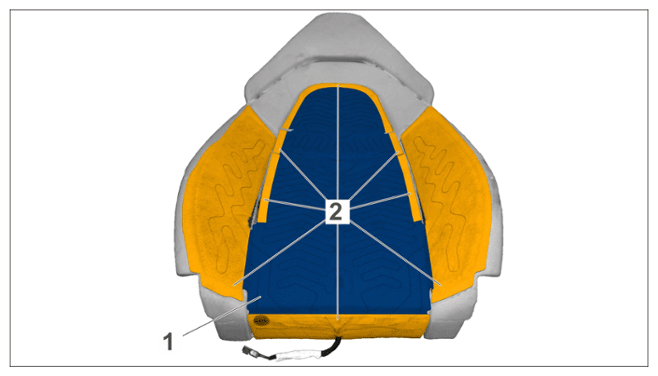

  3. Press heating element -1-  on firmly in area -2-  .
    G15874672Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest heating element

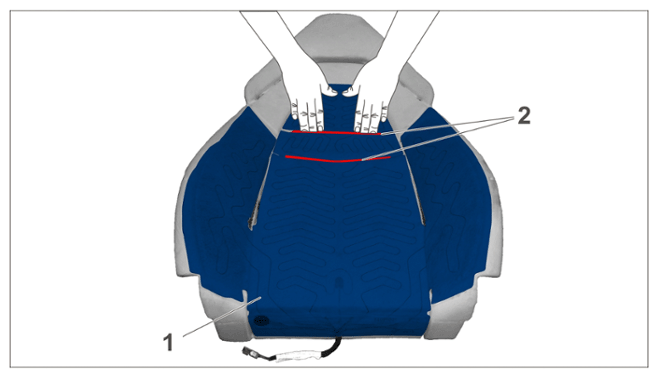

  4. Press heating element -1-  in area -2-  into the grooves.
    G15874673Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest heating element
