Replacing Heating Element For Front Seat

WARNING: This page is about a different variant/trim than selected.

Affix heating element on seat-surface extension.

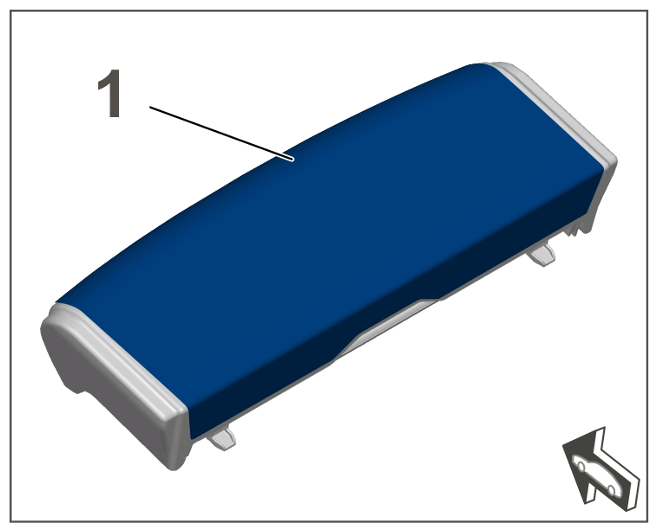

1.1 Position heating element -1- on seat-surface extension.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat-surface extension

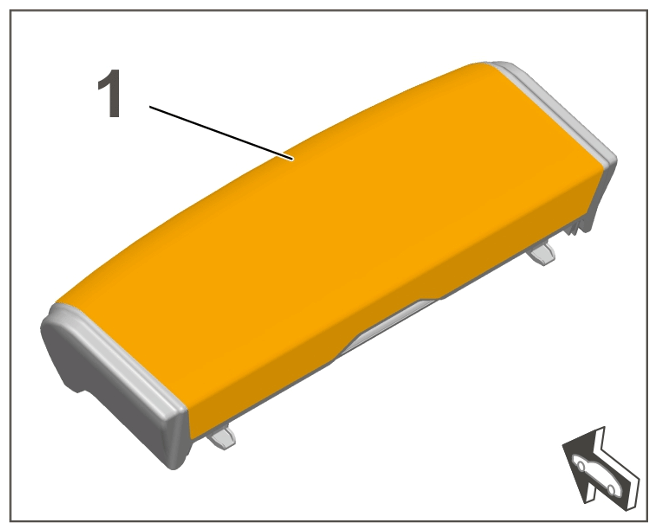

1.2 Pull protective film in area -1- off the bonding area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat-surface extension

1.3 Press heating element on firmly in area -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat-surface extension

Affix heating element on seat surface.

2.1 Position heating element on seat surface -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat surface

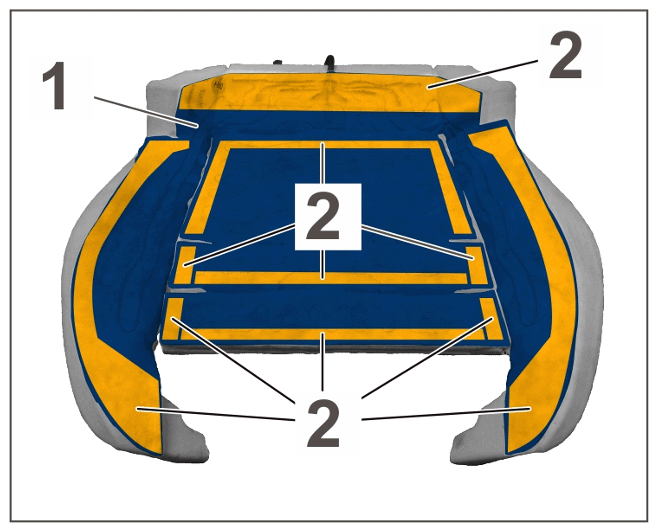

2.2 Pull protective film in area -2- off the bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat surface

2.3 Press heating element on firmly in area -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat surface

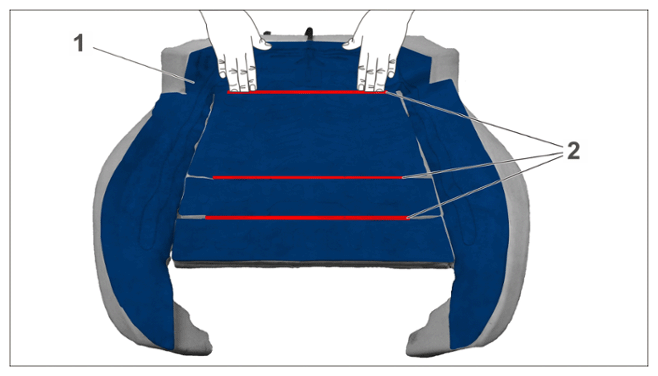

2.4 Press heating element -1- in area -2- into the grooves.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on seat surface
