Removing Backrest Pocket
WARNING: This page is about a different variant/trim than selected.

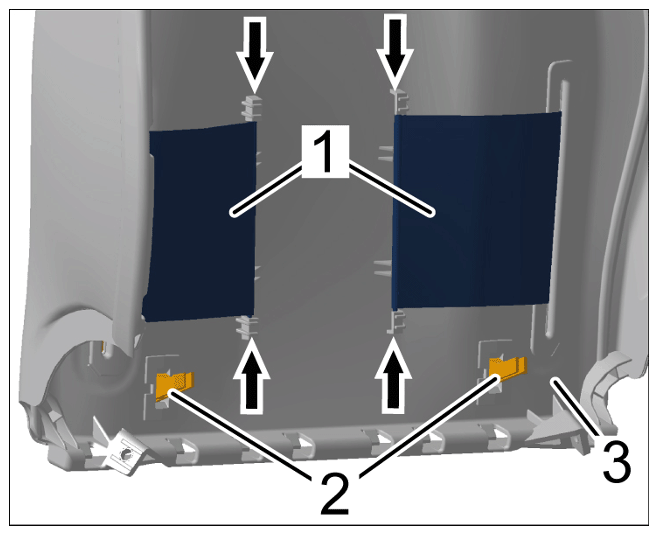

- Disengage support rods -arrows-
and unclip locks -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Disengaging support rods
- Remove backrest pocket -1-
from the backrest cover -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing backrest pocket
