Removing Padding For Front Backrest

Information

The steps required for removal are shown on the left-hand side. The steps required for removal are identical on both sides.

Information

Do not remove or loosen the suction fan.

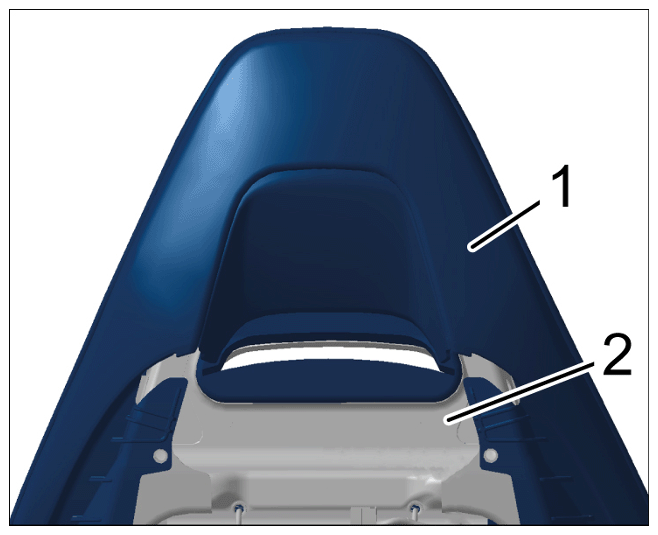

1. Disengage cover for front backrest -1-  from the backrest frame -2-  in the headrest area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging cover for front backrest

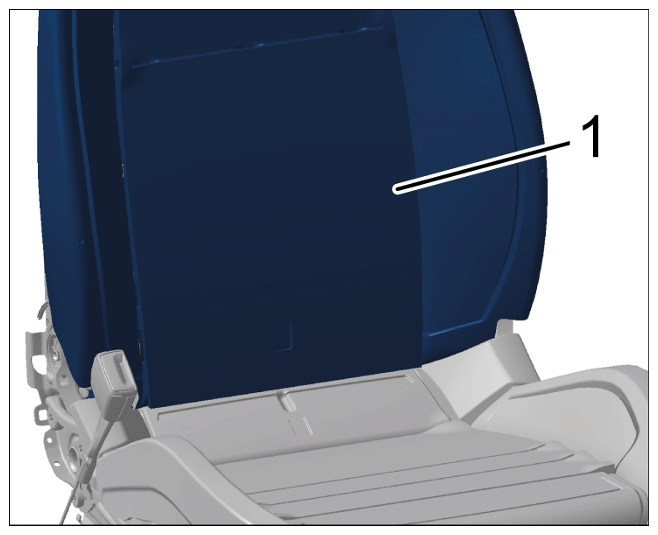

2. Loosen cover for front backrest -1-  between the backrest and front seat.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening cover for front backrest

3. Only for vehicles with seat heating (I-no. 4A3 or 4A4):

   Release and disconnect electric plug connection for backrest heating.

4. Push lower cushion through in a forward direction.
5. Only for vehicles with massage seats (I-no. 4D0, 4D2, 4D4, 4D5, 4D6, 4D7 or 4D9):

   Disconnect and remove hoses.

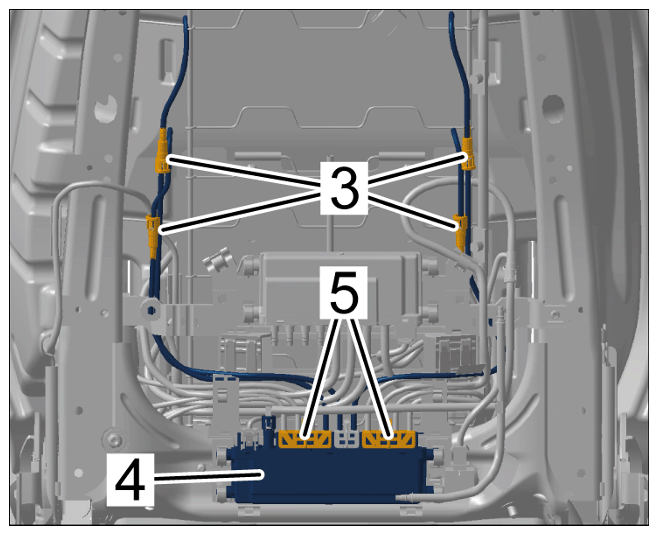

   1. 5.1 Disconnect connections -3-  .
   2. 5.2 Remove tie-wrap.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting and removing hoses

6. Only for vehicles with massage seats (I-no. 4D0, 4D2, 4D4, 4D5, 4D6, 4D7 or 4D9):

   Disengage control valve for air cushion -4-  by pulling it upwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening control valve for air cushion

7. Only for vehicles with massage seats (I-no. 4D0, 4D2, 4D4, 4D5, 4D6, 4D7 or 4D9):

   Disconnect connections -5-  from control valve for air cushion -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting connections

8. Only for vehicles with front 14-way comfort seats (I-no. Q2J) or front 18-way sports seats (I-no. Q1J):

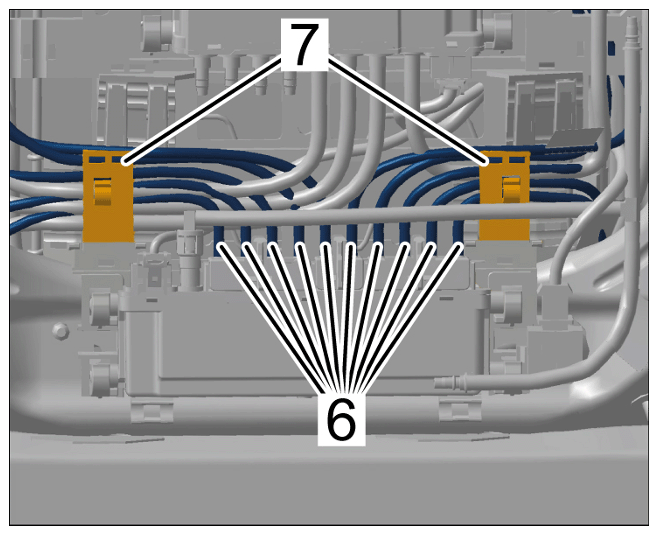

   Disengage hoses -6-  from the holder -7-  and guide them out.

   1. 8.1 Guide blue hoses out to the rear.
   2. 8.2 Guide transparent hoses out to the front.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting hoses

9. Only for vehicles with seat ventilation (I-no. 4D1, 4D2, 4D3, 4D5, 4D6 or 4D9):

   Disengage air duct on suction fan for backrest from the inner spring.

10. Remove padding for front backrest with seat cover.
