Removing Suction Fan For Backrest Surface
WARNING: This page is about a different variant/trim than selected.

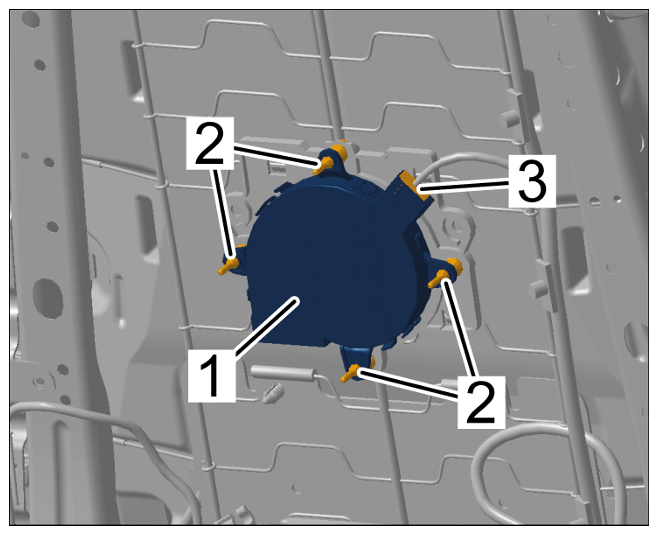

- Release and unplug electric plug connection -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection
- Guide rubber pins -2-
through.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rubber pins
- Remove suction fan for backrest surface -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Suction fan for backrest surface
