Removing Padding For Front Seat

WARNING: This page is about a different variant/trim than selected.
  1. Remove padding for front seat.
  2. Only for comfort seats (I-no. Q2J) or sports seats (I-no. Q1J):

    Pull off padding for seat-surface extension -1-  in the bonding area -2-  .

    G15874631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off padding in seat surface area

  3. Only for comfort seats (I-no. Q2J) or sports seats (I-no. Q1J):

    Remove adhesive residues -1-  from the seat-surface extension.

    G15874632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

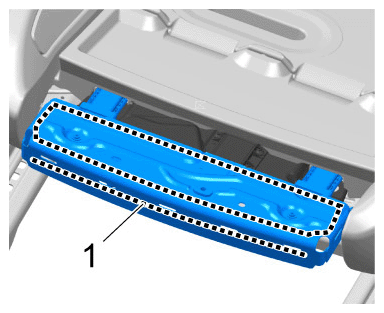

    Removing adhesive from seat-surface extension
