Installing Padding For Front Seat

Information

The sealing surface on the seat frame and seat-surface extension must be clean and free of grease.

1. Only for comfort seats (I-no. Q2J) or sports seats (I-no. Q1J):

   Apply adhesive -1-  to the marked area of the padding for the seat-surface extension -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

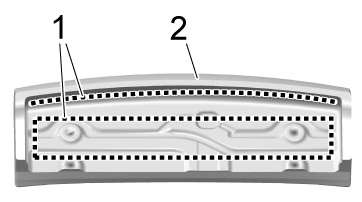

   Applying adhesive on seat-surface extension

2. Only for comfort seats (I-no. Q2J) or sports seats (I-no. Q1J):

   Place padding -1-  on the frame of the seat-surface extension -2-  and align it -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

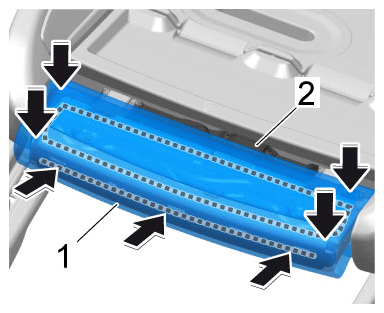

   Installing padding on seat-surface extension

3. Install padding for front seat.
