Removing Front Seat-Surface Extension

WARNING: This page is about a different variant/trim than selected.

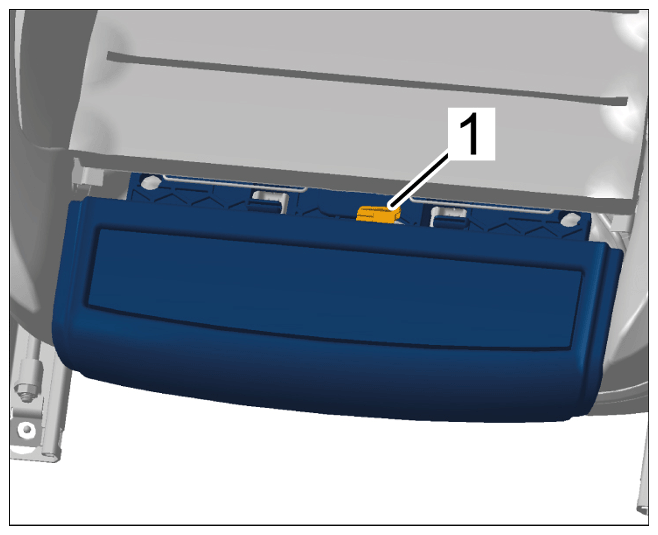

  1. Only for vehicles with seat heating (I-no. 4A4):

    Release and disconnect electric plug connection -1-  .

    G15874609Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection

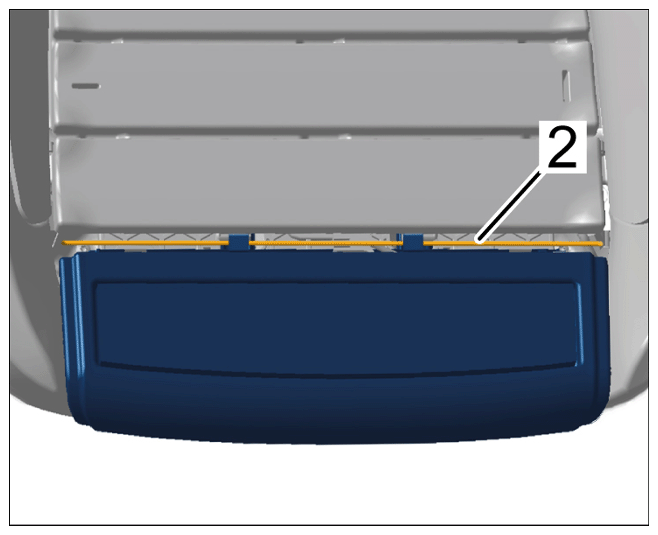

  2. Disengage support rod -2-  .
    G15874610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging support rod

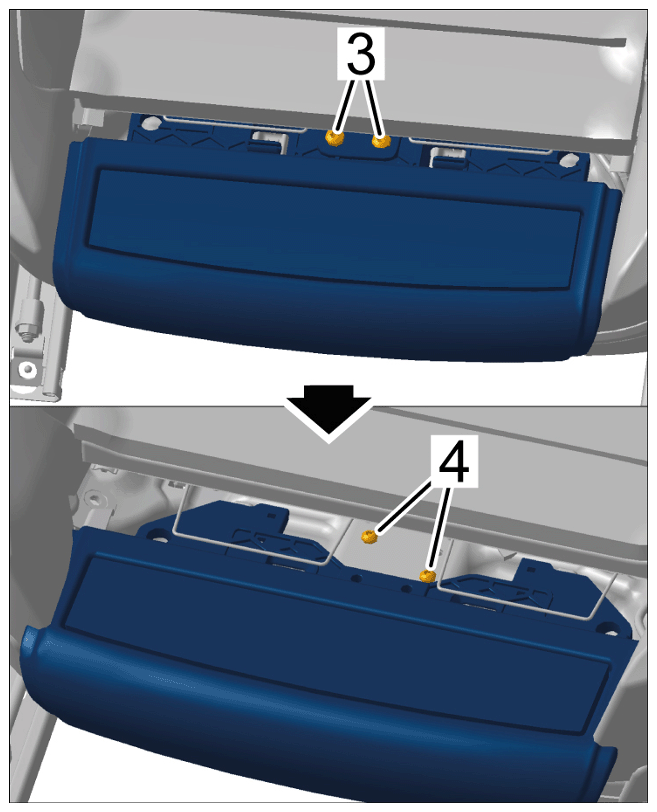

  3. Unscrew and remove screws -3-  .
    G15874611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

  4. Loosen screws -4-  .
    G15874612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

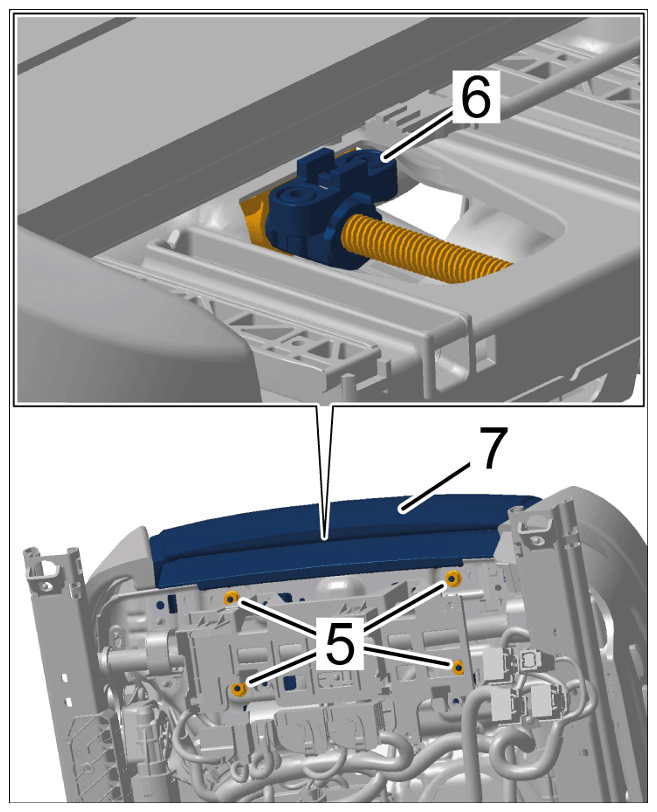

  5. Unscrew nuts -5-  .
    G15874613Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing nuts

  6. Lift seat-surface extension at the front -7-  and disengage and remove it from the slide -6-  .
    G15874614Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front seat-surface extension
