Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance Tolerance

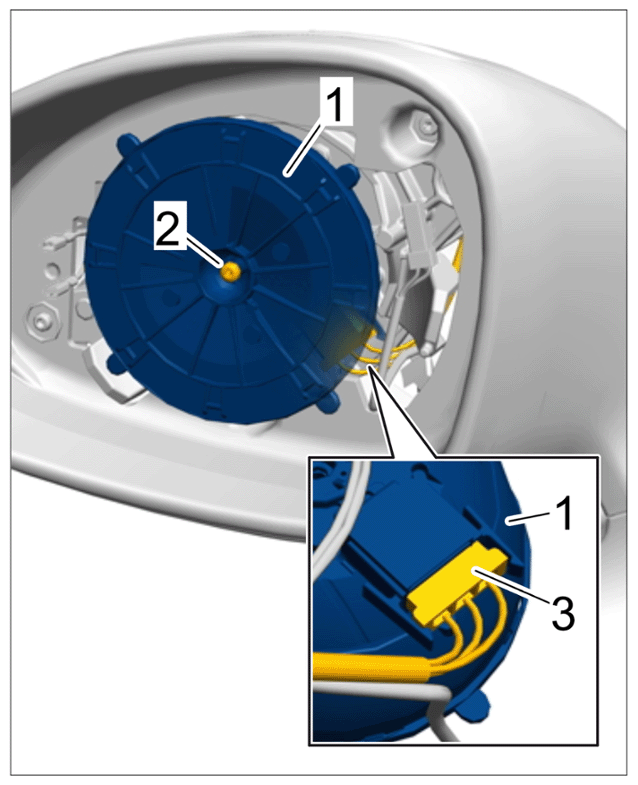

Mirror adjusting motor Item 2 Tightening torque 1 Nm (0.5 ftlb.) +/- 15 %
G15873245Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mirror adjusting motor

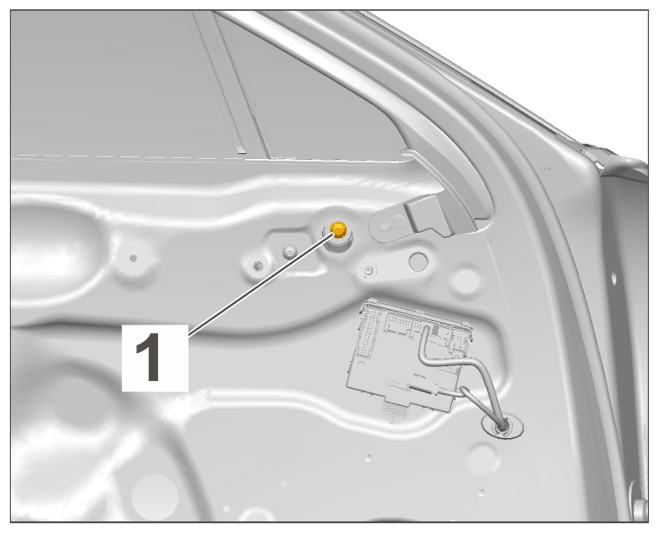

Rear-view mirror to bare door shell Item 1 Tightening torque 23 Nm (17 ftlb.)
G15873246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

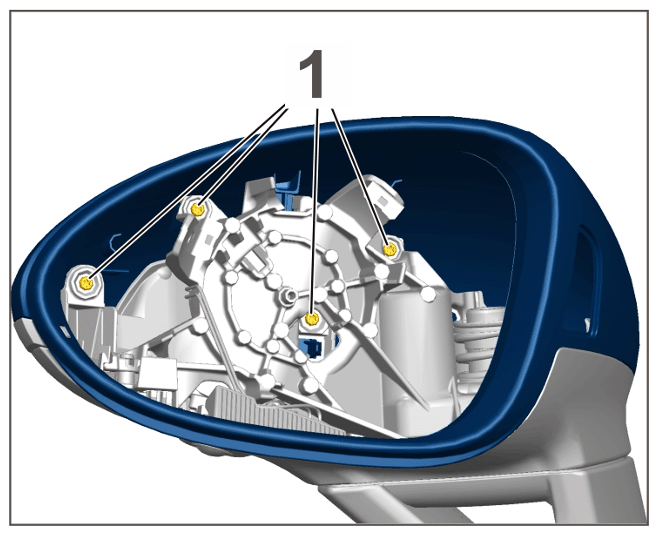

Rear-view mirror housing (upper part) Item 1 Tightening torque 0.55 Nm (0.4 ftlb.) +/- 0.25 Nm (0.15 ftlb.)
G15873247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Trim panel for mirror base Item 1 Tightening torque 0.55 Nm (0.4 ftlb.) +/- 0.25 Nm (0.15 ftlb.)
G15873248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

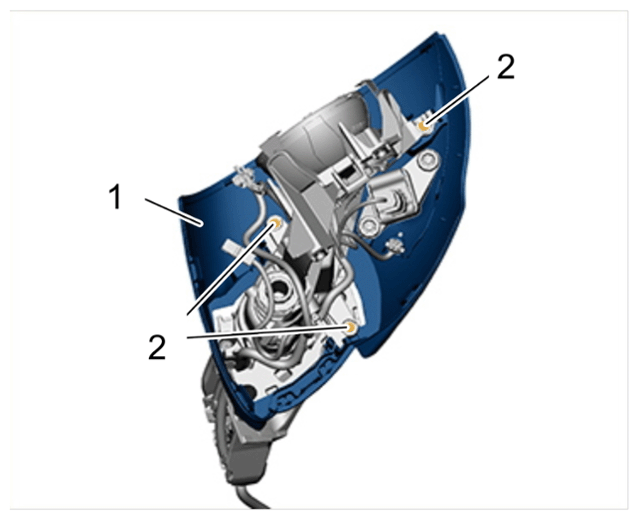

Rear-view mirror housing (lower part) Item 2 Tightening torque 0.55 Nm (0.4 ftlb.) +/- 0.25 Nm (0.15 ftlb.)
G15873249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

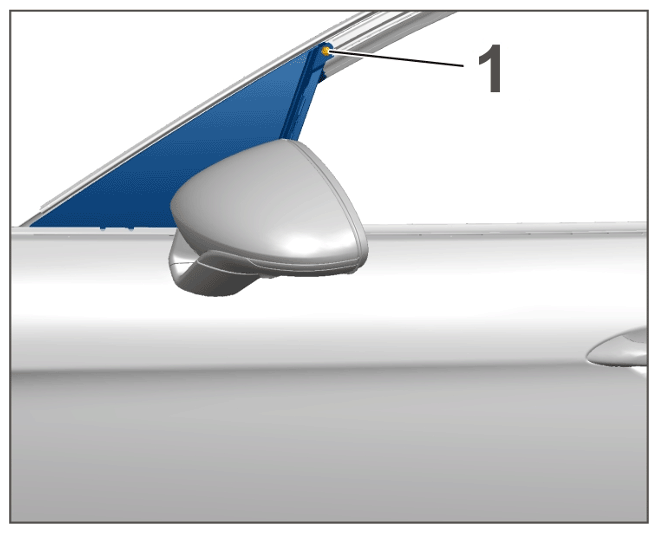

Fastening screw for front corner window pane, outer Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15873250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer fastening screw

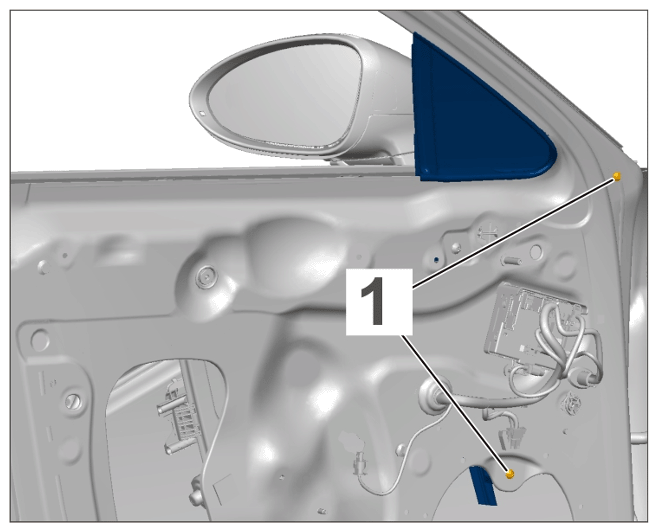

Fastening screws for front corner window pane, inner Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15873251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner fastening screws

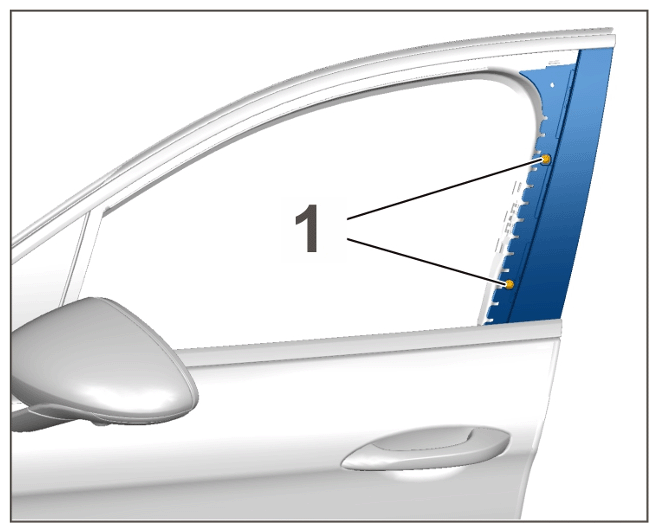

Fastening screws for front window guide, outer Item 1 Tightening torque 2.5 Nm (2 ftlb.)
G15873252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer fastening screws

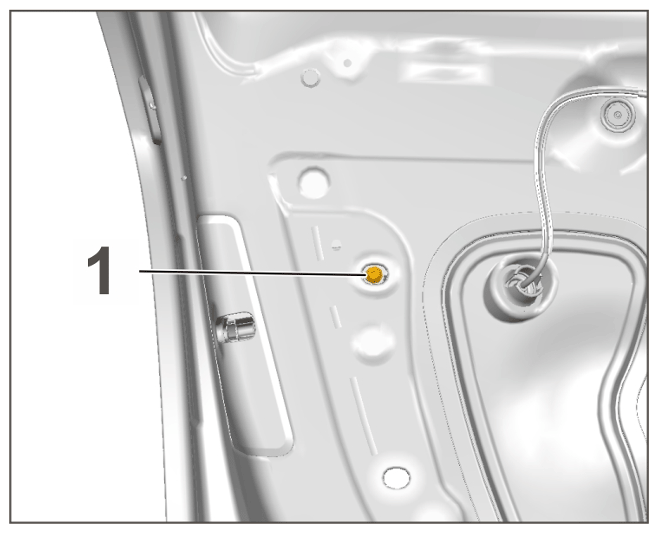

Fastening screw for front window guide, inner Item 1 Tightening torque 2.5 Nm (2 ftlb.)
G15873253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner fastening screw

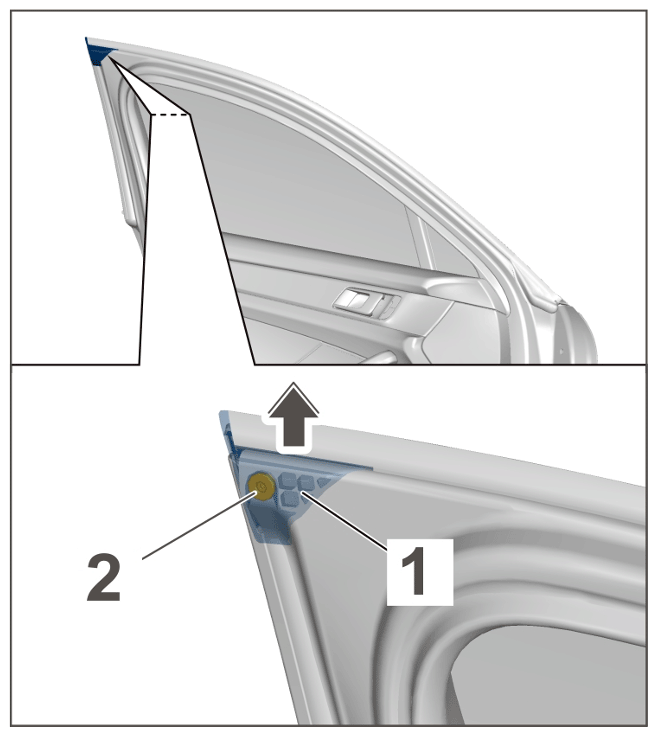

Rear roof trim (front) Item 2 Tightening torque 1 Nm (0.7 ftlb.)
G15873254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

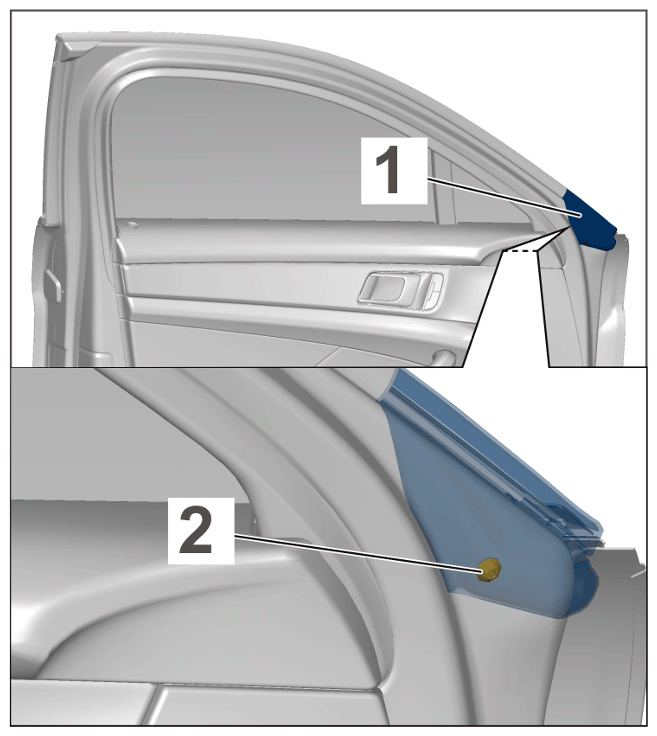

Detach (front) roof trim front Item 2 Tightening torque 4.5 Nm (3.3 ftlb.)
G15873255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

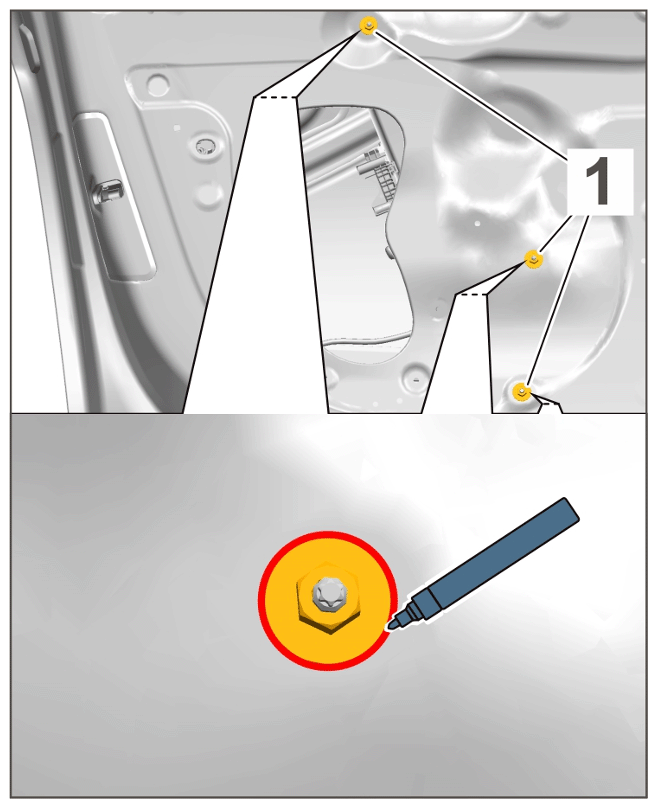

Fastening nut securing front power windows mechanism to basic door frame Item 1 Tightening torque 7.5 Nm (5.5 ftlb.)
G15873256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts

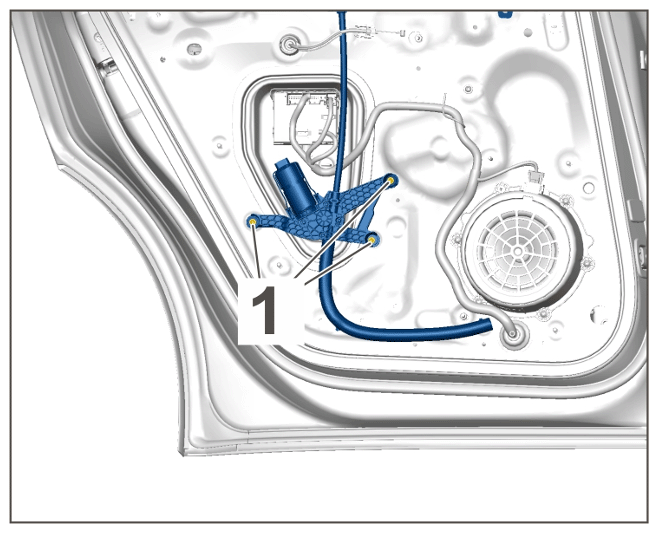

Sun blind motor bracket to door bodyshell Item 1 Tightening torque 3.5 Nm (2.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G15873257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

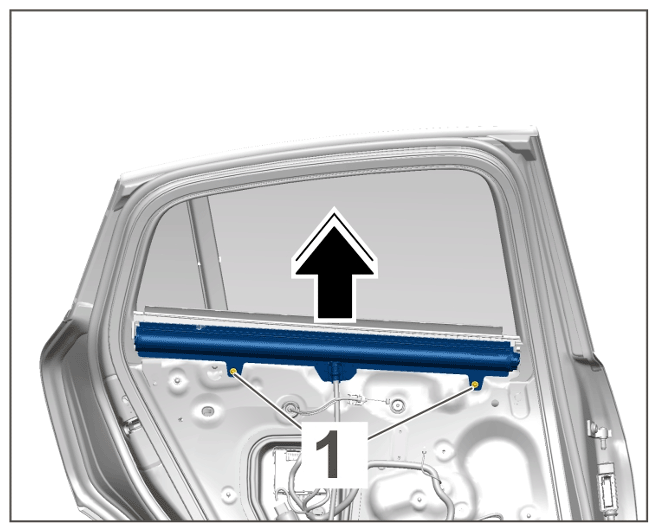

Sun blind to door bodyshell Item 1 Tightening torque 3.5 Nm (2.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G15873258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sun blind

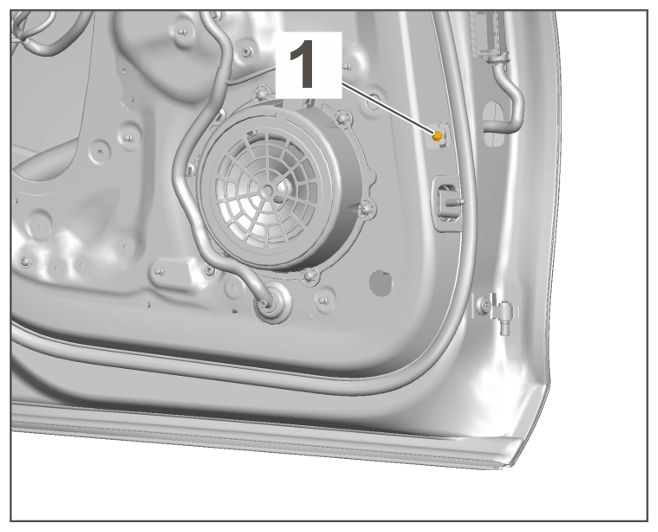

Fastening screw for rear window guide, lower Item 1 Tightening torque 2.5 Nm (2 ftlb.)
G15873259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

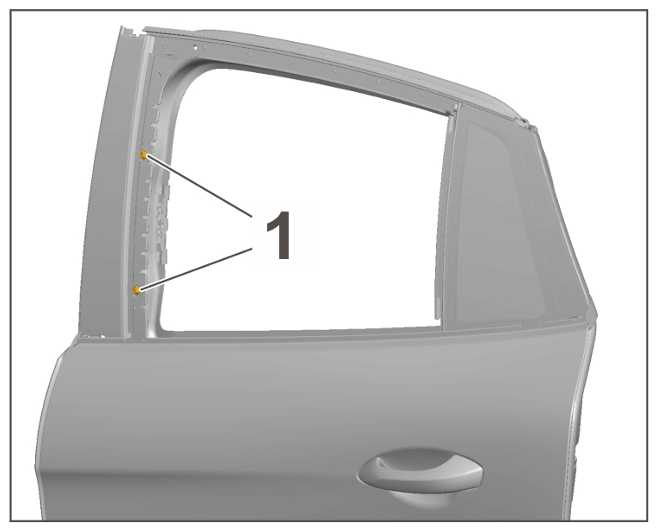

Fastening screws for rear window guide, outer Item 1 Tightening torque 2.5 Nm (2 ftlb.)
G15873260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

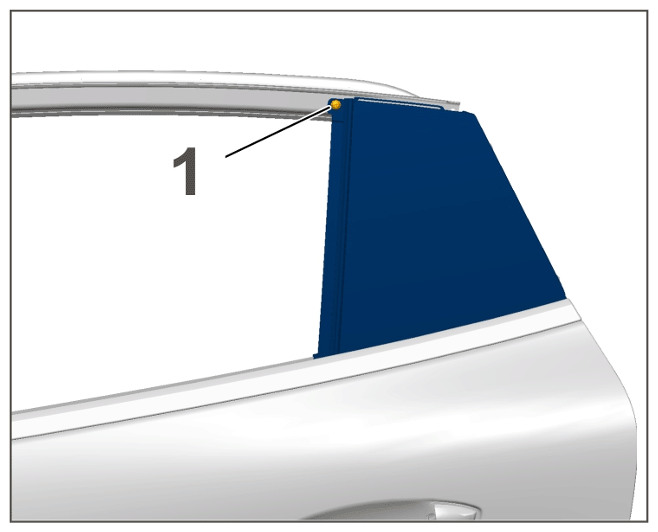

Fastening screw for door window glass (corner piece), outer Item 1 Tightening torque 4 Nm (3 ftlb.)
G15873261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door window (corner piece)

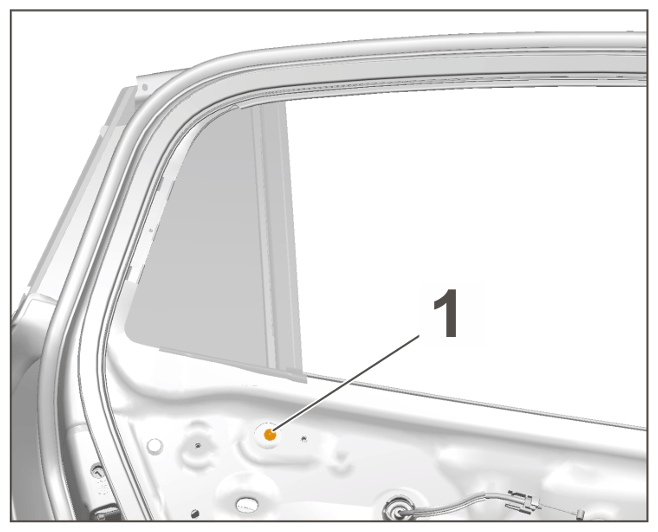

Fastening screw for door window glass (corner piece), inner Item 1 Tightening torque 4 Nm (3 ftlb.)
G15873262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

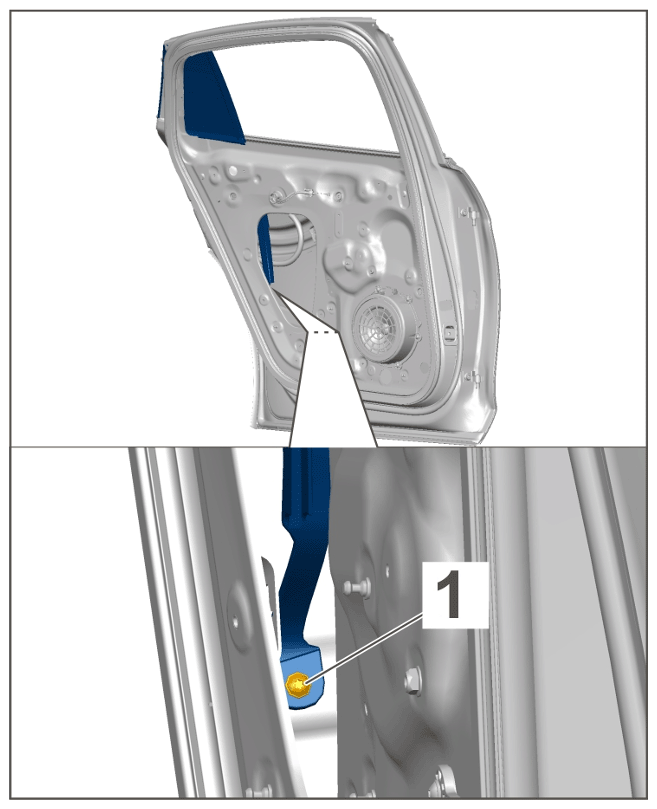

Fastening screw for door window glass (corner piece), inner Item 1 Tightening torque 4 Nm (3 ftlb.)
G15873263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw
Fastening nut securing front power windows mechanism to basic door frame Item 1 Tightening torque 7.5 Nm (5.5 ftlb.)
G15873264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts

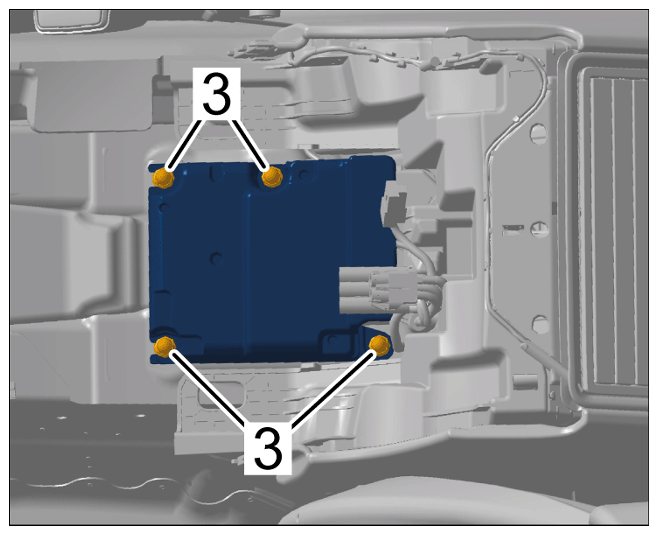

Nuts securing airbag triggering unit to centre console Item 3 Tightening torque 9 Nm (6.5 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G15873265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nuts

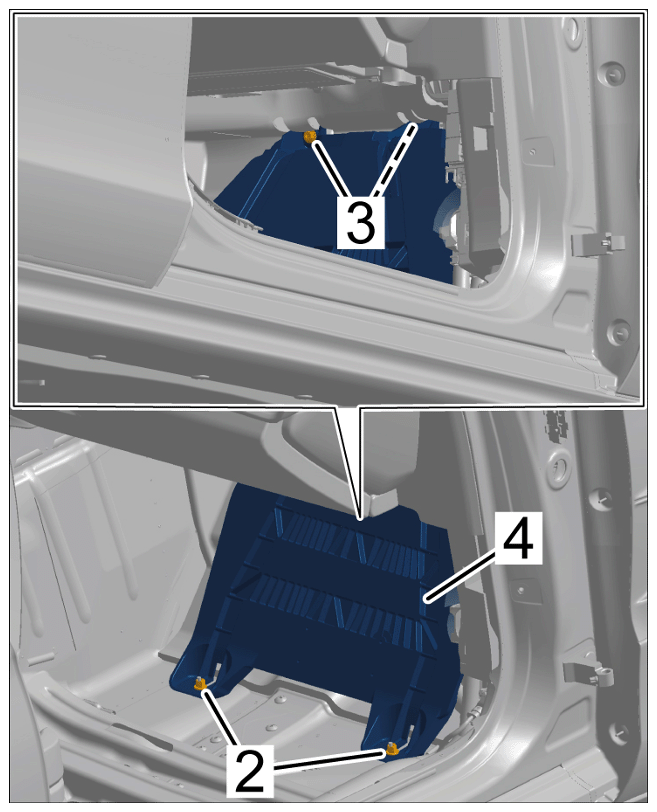

Screw for floor plate Item 3 Tightening torque 8 Nm (6 ftlb.) +/- 0.5 Nm (0.25 ftlb.)
G15873266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for floor plate
Nut for floor plate Item 2 Tightening torque 2.5 Nm (1.75 ftlb.) +/- 0.25 Nm (0.1 ftlb.)
G15873267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut for floor plate

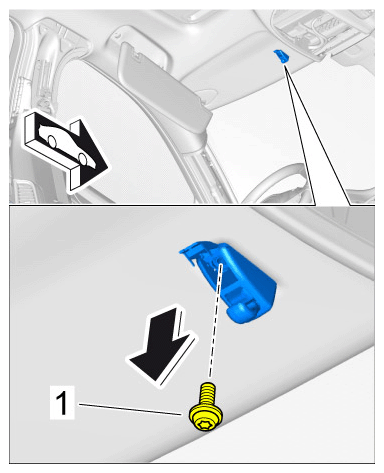

Screw for sun visor bearing Item 1 Tightening torque 5.6 Nm (4 ftlb.)
G15873268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for sun visor bearing

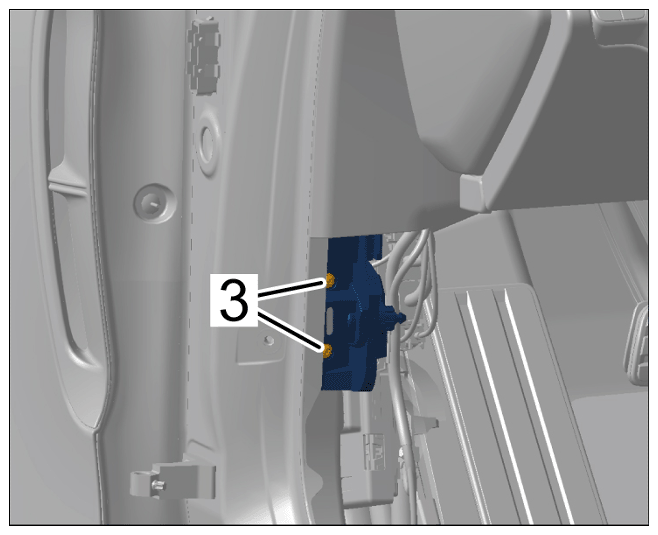

Screw securing mounting saddle for actuating lever to A-pillar Item 3 Tightening torque 2 Nm (1.5 ftlb.)
G15873269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

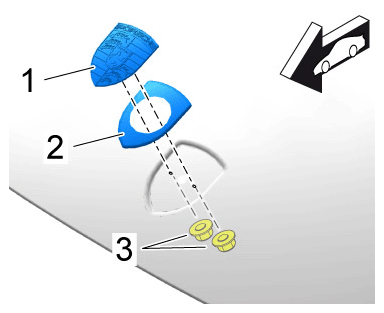

Nut for front logo Item 3 Tightening torque 1.3 Nm (1 ftlb.) - 0.2 Nm (0.1 ftlb.)
G15873270Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut for front logo
Screw for front bumper Item 4 Tightening torque 50 Nm (37 ftlb.) +/- 15 %
G15873271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front bumper

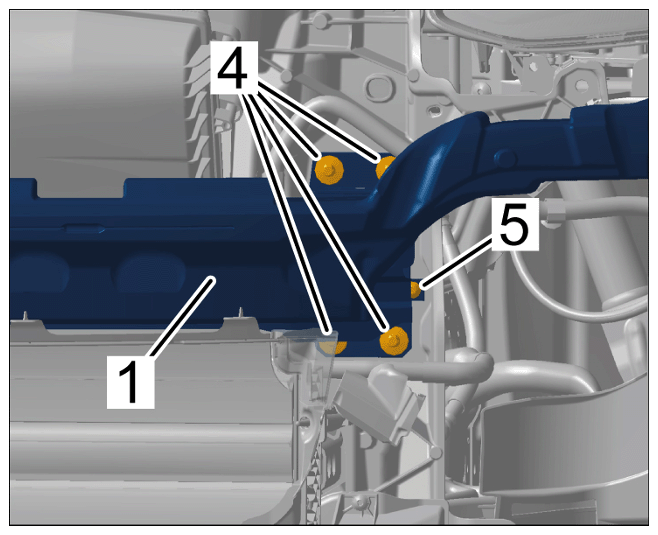

Screw for front bumper Item 5 Tightening torque 6 Nm (4.5 ftlb.)
G15873272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front bumper

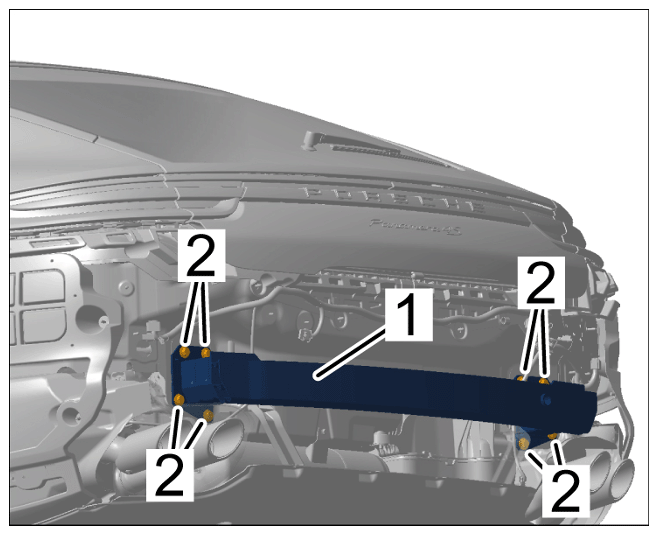

Screw for rear bumper Item 2 Initial tightening 20 Nm (15 ftlb.)
Screw for rear bumper Item 2 Final tightening + 45°
G15873273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear bumper

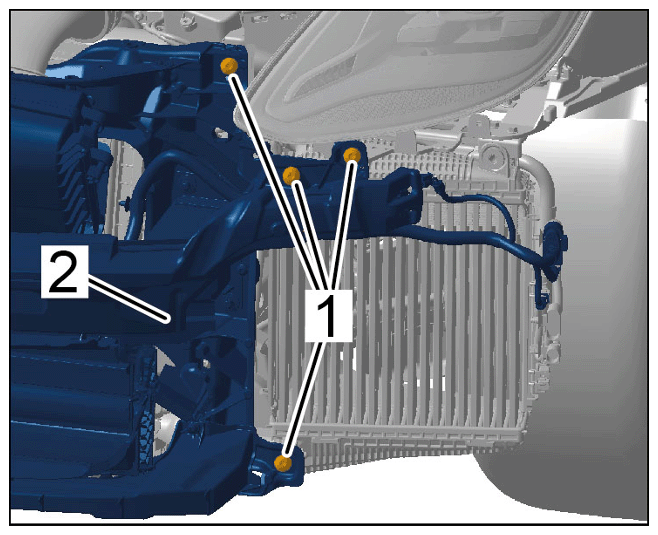

Screw for lock carrier Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15873274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for lock carrier

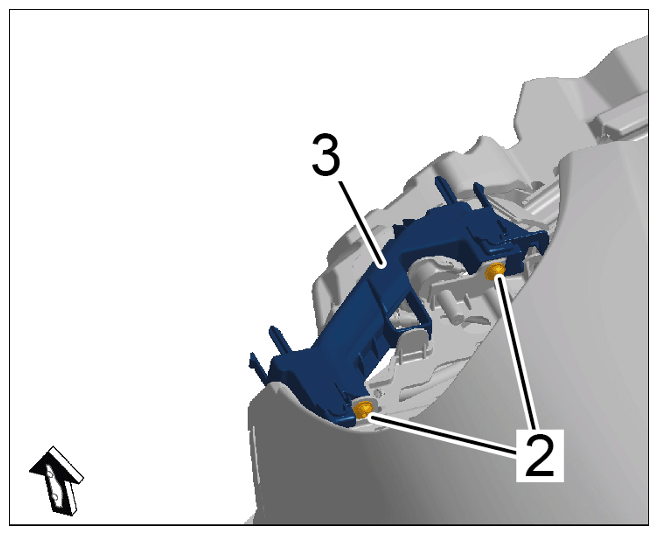

Screws for headlight mounting point Item 2 Tightening torque 5.5 Nm (4 ftlb.)
G15873275Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for headlight mounting point

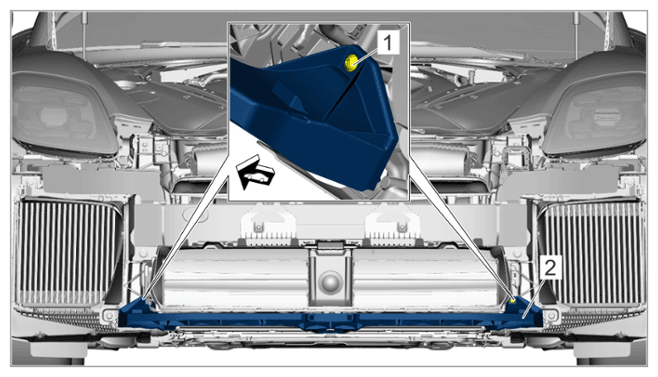

Screw securing pedestrian protection to front module Item 1 Tightening torque 9.7 Nm (7.2 ftlb.)
G15873276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

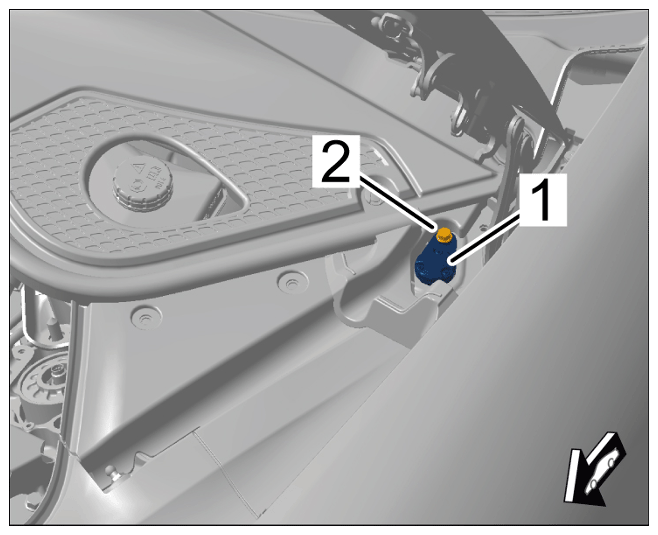

Screw securing ignition module to body Item 2 Tightening torque 8 Nm (5.9 ftlb.)
G15873277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for ignition module

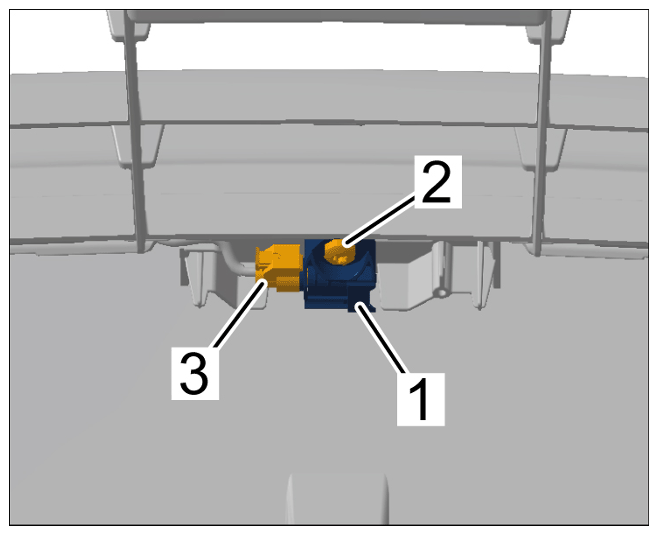

Screw securing pedestrian-protect. sensor to front bumper Item 2 Tightening torque 6 Nm (4.4 ftlb.)
G15873278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing pedestrian-protect. sensor to front bumper

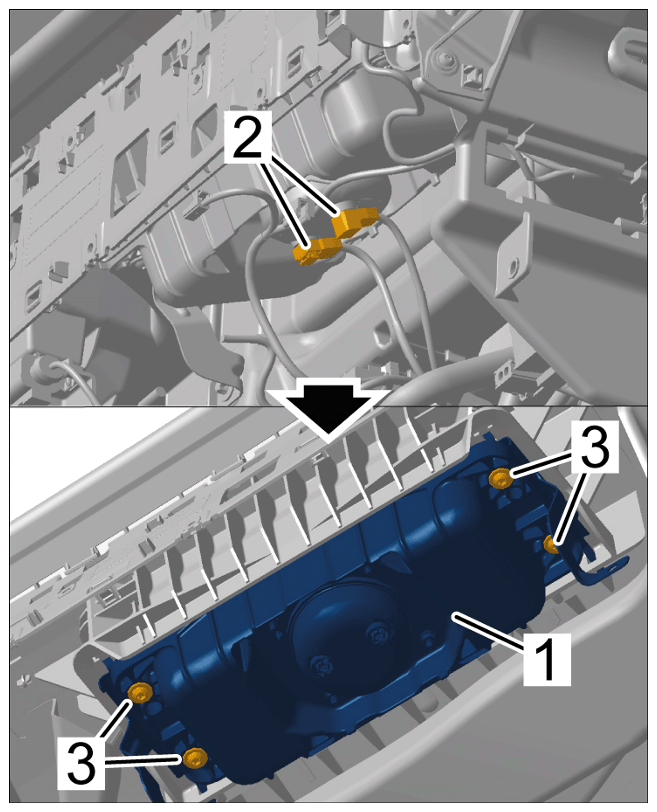

Screws securing passenger airbag unit to cross member Position 3, screws must be replaced Tightening torque 9.7 Nm (7.2 ftlb.)
G15873279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag unit

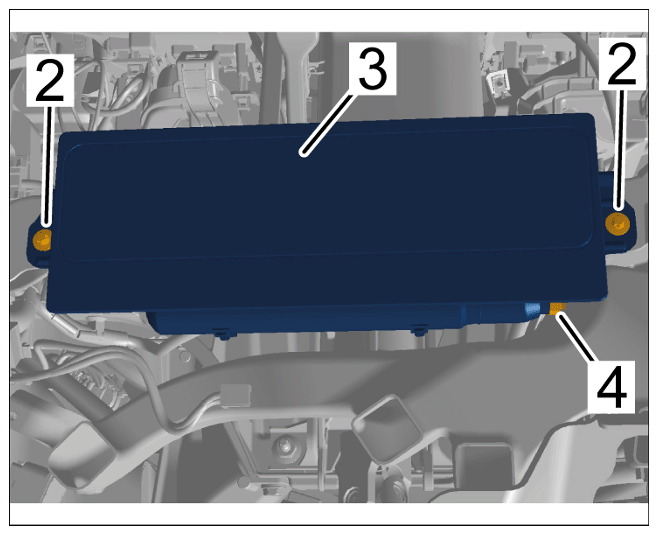

Screws securing knee airbag on driver's side to cross member Item 2, screws must be replaced Tightening torque 13 Nm (9.6 ftlb.)
G15873280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for knee airbag

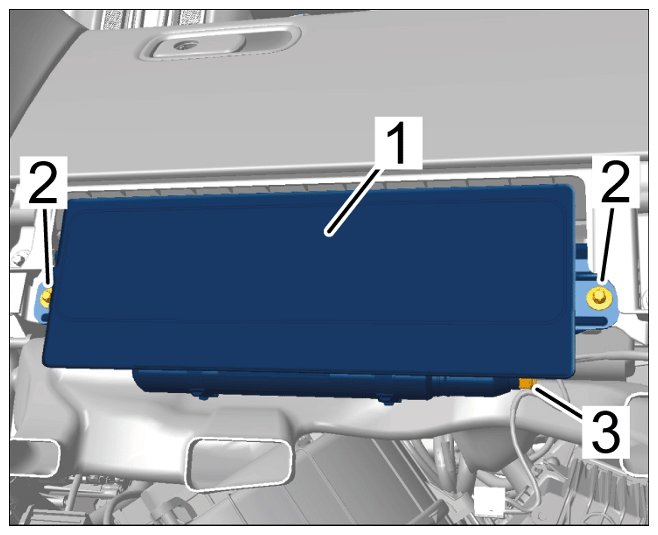

Screws securing knee airbag on passenger's side to cross member item 2, screws must be replaced Tightening torque 13 Nm (9.6 ftlb.)
G15873281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knee airbag

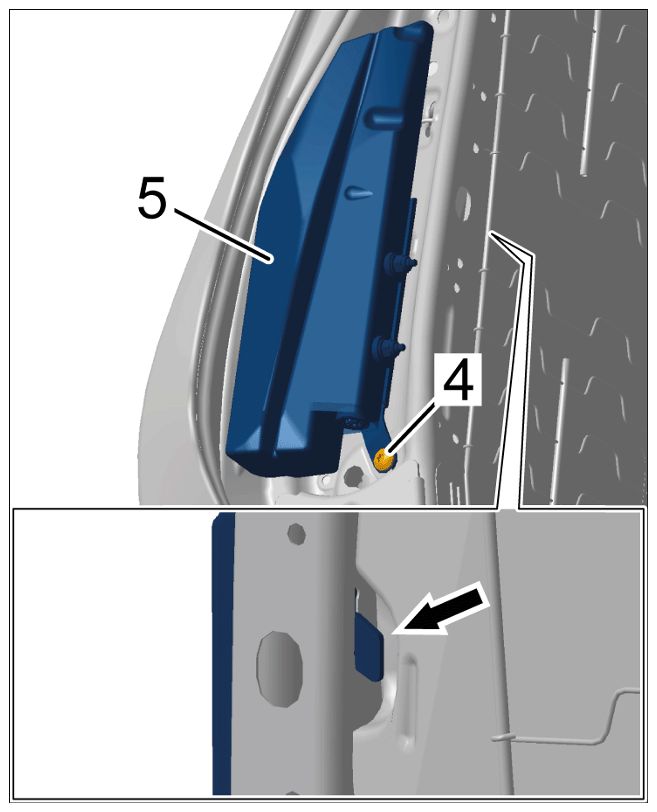

Front side airbag to seat frame Item 4 Tightening torque 9.7 Nm (7.2 ftlb.)
G15873282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw

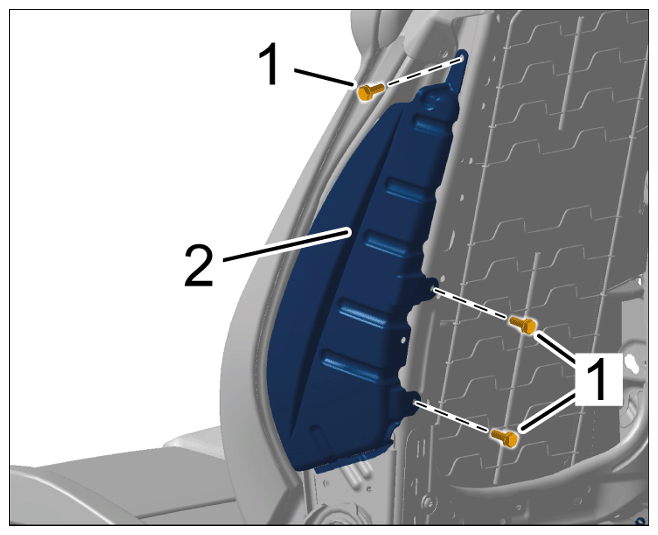

Screws securing trim panel over side airbag Position 1 Tightening torque 5.6 Nm (4.1 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15873283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing trim panel over side airbag

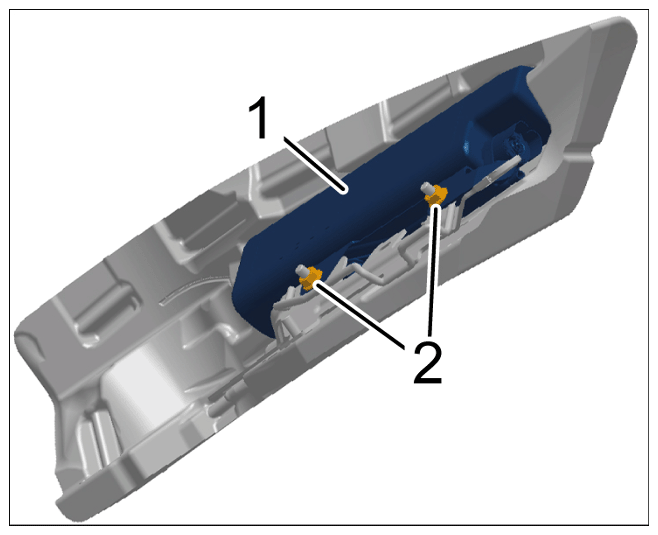

Nut on rear seat airbag Item 2 Tightening torque 9.7 Nm (7.2 ftlb.)
G15873284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat airbag

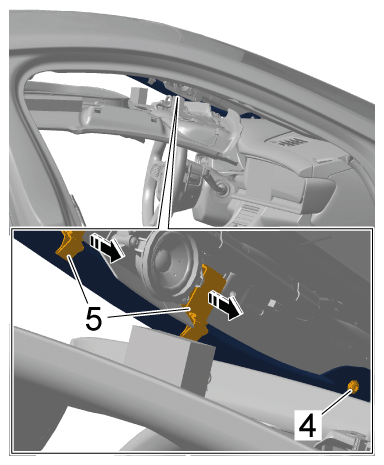

Screw securing head airbag to A-post Position 4 Tightening torque 5.6 Nm (4.1 ftlb.)
G15873285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing head airbag to A-post

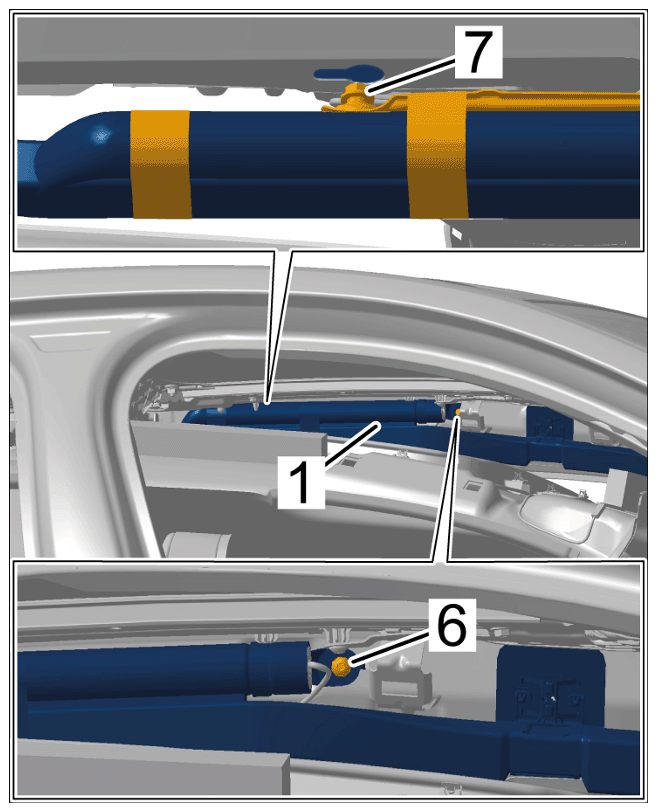

Screw securing head airbag to roof frame Position 6 Tightening torque 5.6 Nm (4.1 ftlb.)
G15873286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing head airbag to roof frame

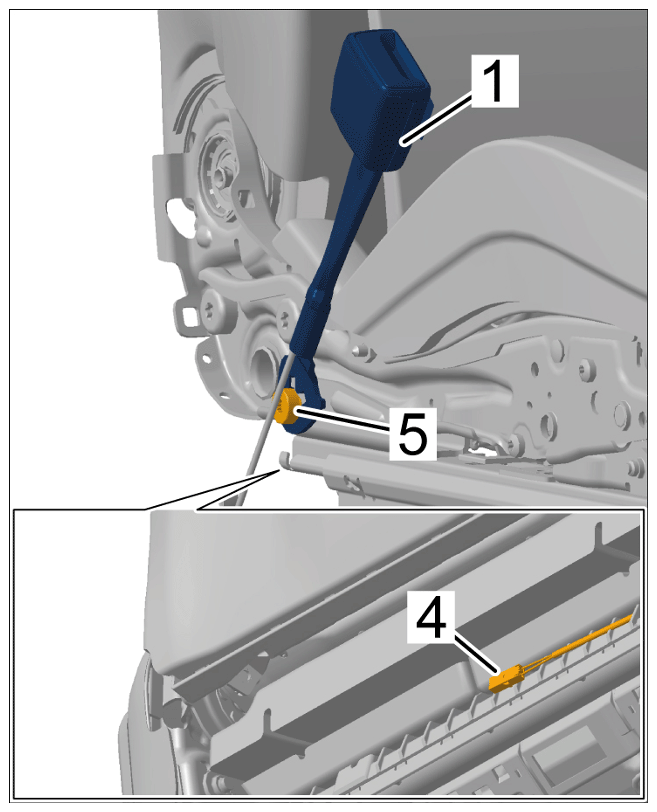

Screw securing front belt lock Position 5 Tightening torque 50 Nm (36.9 ftlb.)
G15873287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front belt lock
Screw securing centre and left rear belt lock   Tightening torque 50 Nm (36.9 ftlb.)
G15873288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear belt lock

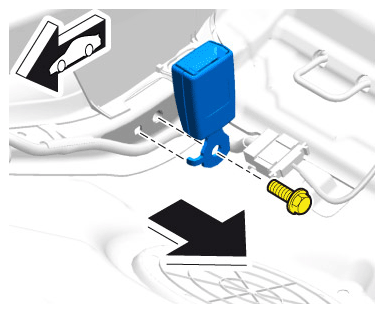

Screw securing right rear belt lock   Tightening torque 55 Nm (40.6 ftlb.)
G15873289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear belt lock

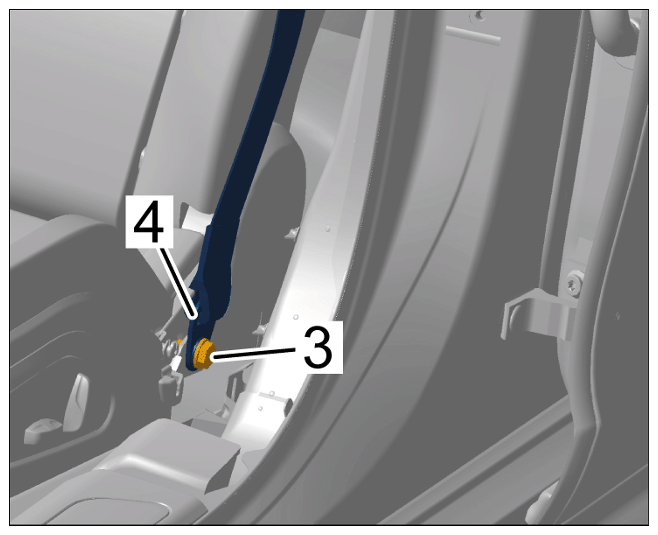

Screw securing seat belt mount to front seat Position 3 Tightening torque 50 Nm (36.9 ftlb.)
G15873290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat belt mount

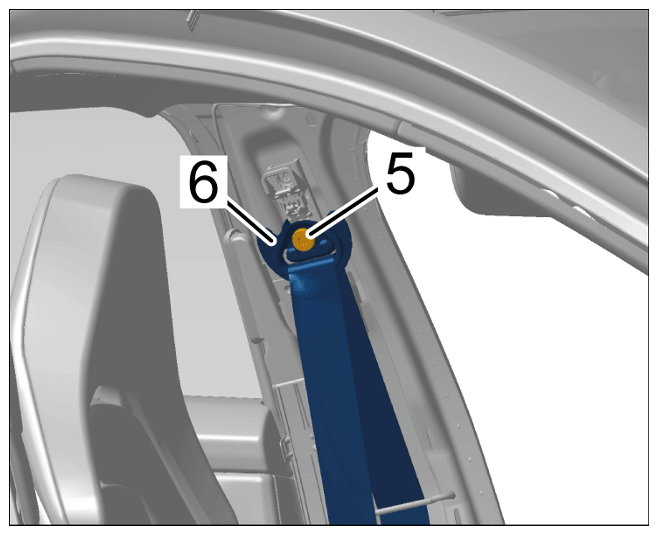

Screw securing belt deflector on B-pillar Position 5 Tightening torque 50 Nm (36.9 ftlb.)
G15873291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt deflector

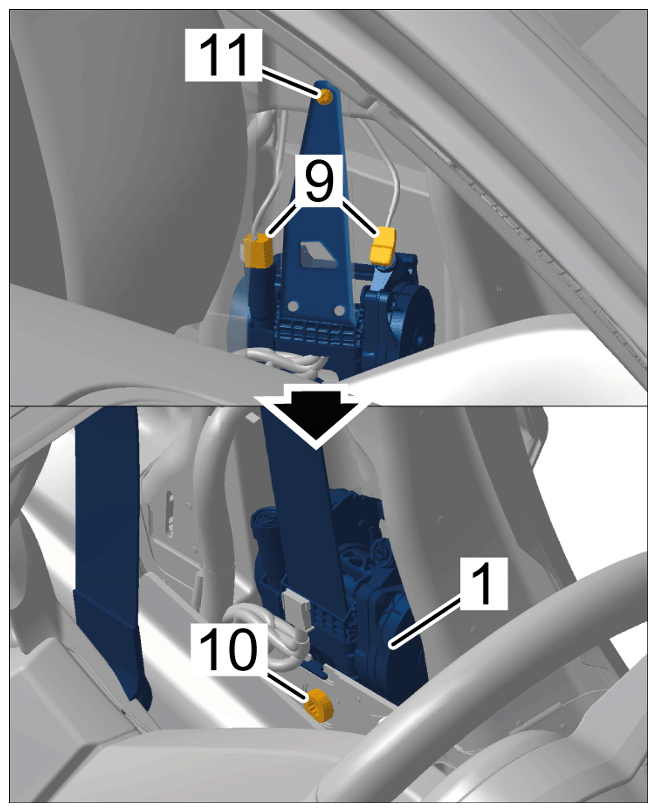

Upper screw on front automatic belt device Item 11 Tightening torque 5.6 Nm (4.1 ftlb.)
G15873292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt reel
Lower screw on front automatic belt device Item 10 Tightening torque 50 Nm (36.9 ftlb.)
G15873293Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt reel

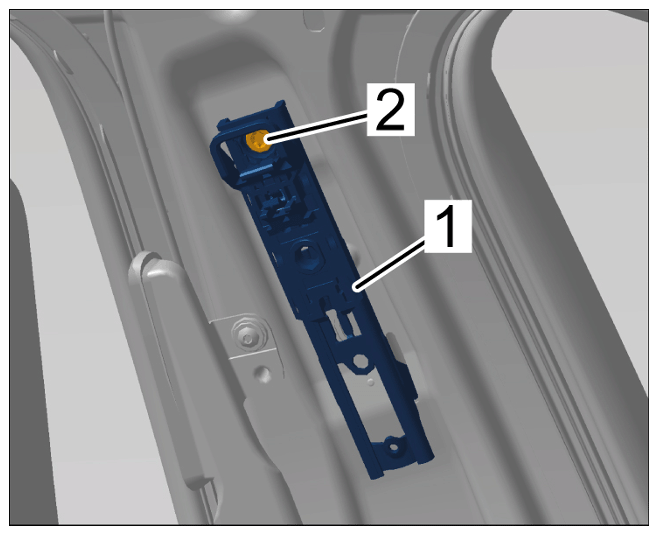

Screw securing seat belt height adjuster Position 2 Tightening torque 33 Nm (24.3 ftlb.)
G15873294Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjustment fitting

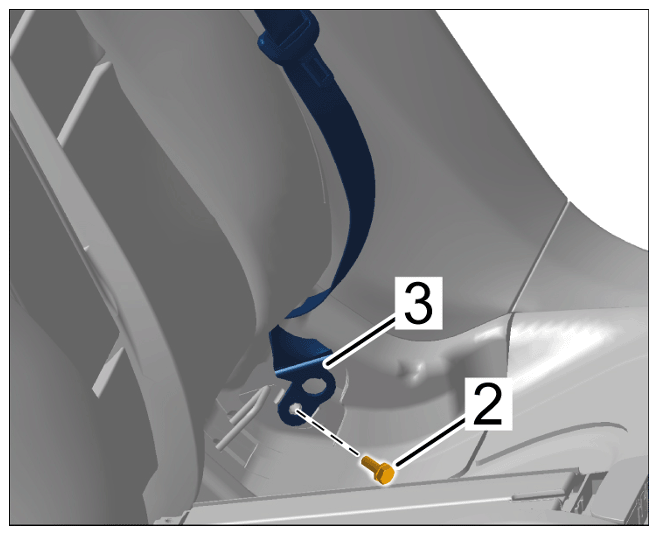

Screw securing rear seat belt mount Position 2 Tightening torque 50 Nm (36.9 ftlb.)
G15873295Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat belt mount

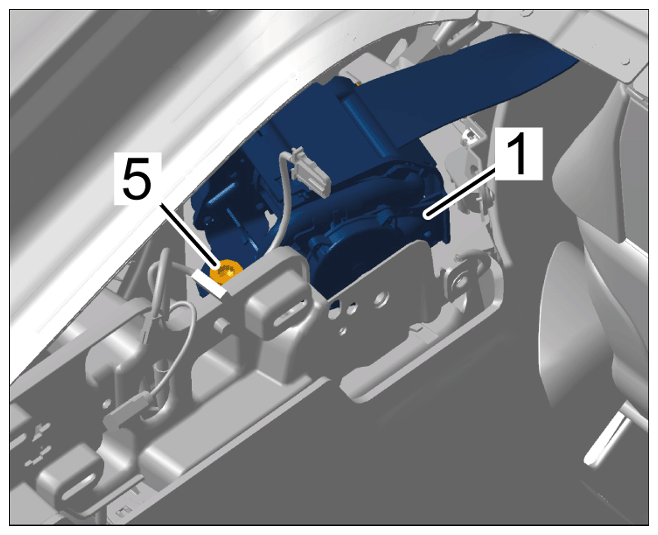

Screw securing rear automatic belt device Position 5 Tightening torque 50 Nm (36.9 ftlb.)
G15873296Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear belt reel

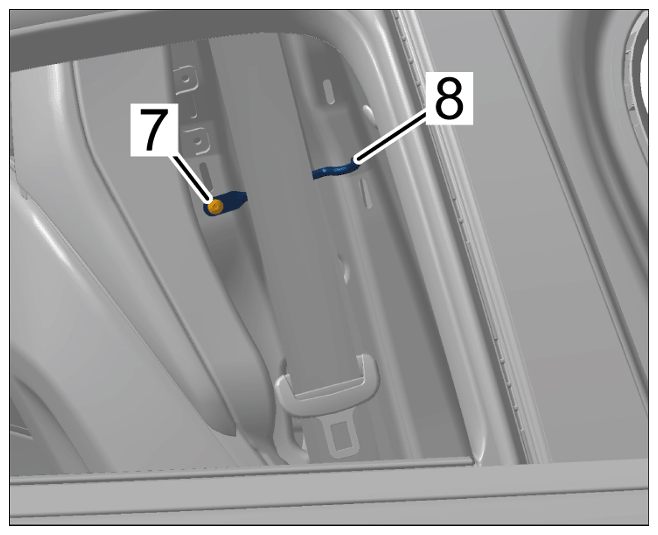

Screw securing retaining bar to B-pillar Position 7 Tightening torque 5.6 Nm (4.1 ftlb.)
G15873297Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing retaining bar to B-pillar

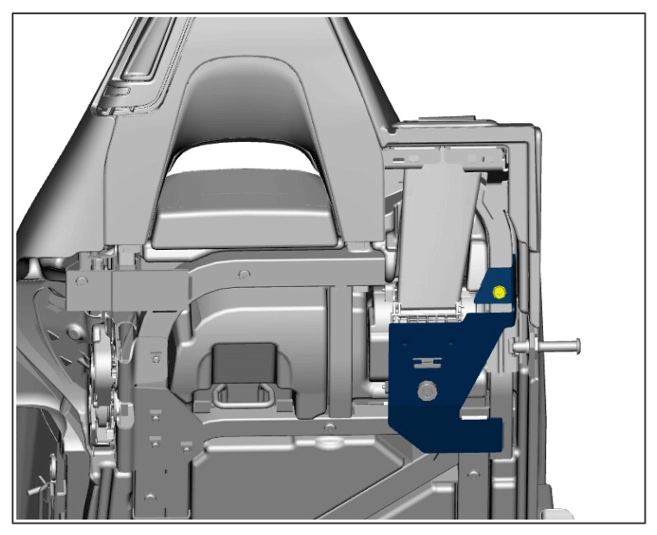

Screw securing cover for three-point belt, rear at the centre to seat backrest   Tightening torque 9.5 Nm (7 ftlb.)
G15873298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing cover for three-point belt, rear at the centre

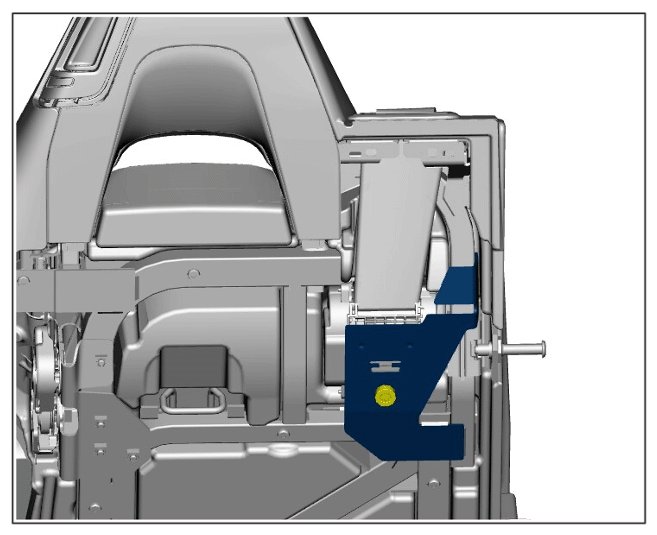

Screw securing three-point belt, rear centre to seat backrest Screw must be replaced Tightening torque 50 Nm (36.9 ftlb.)
G15873299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing three-point belt, rear centre to left rear seat backrest
Nuts on rear spoiler Item 5 Tightening torque 8 Nm (5.9 ftlb.)
G15873300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on spoiler drive

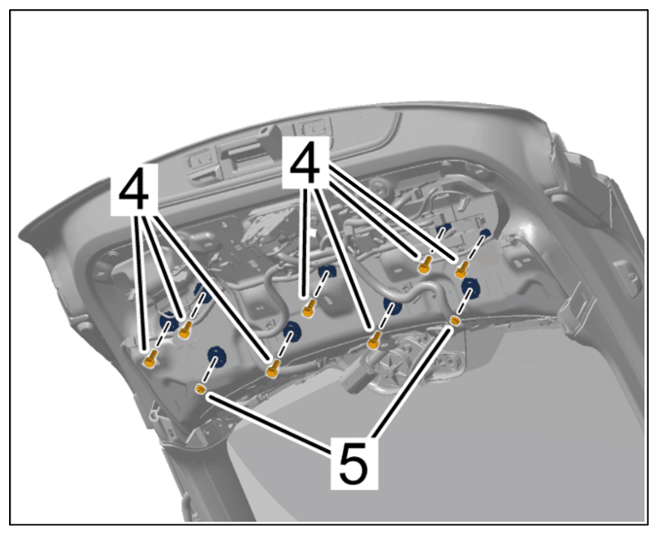

Screws on rear spoiler Item 4 Tightening torque 8 Nm (5.9 ftlb.)
G15873301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on spoiler drive

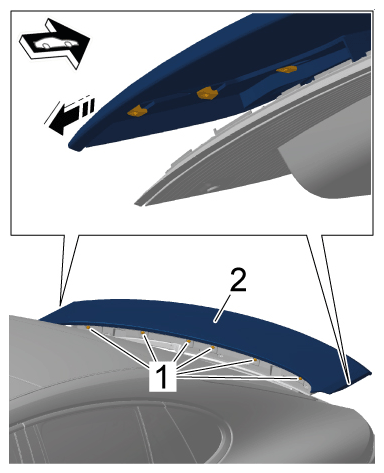

Screws securing trim to rear spoiler Item 1 Tightening torque 1.5 Nm (1.1 ftlb.)
G15873302Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing trim to rear spoiler

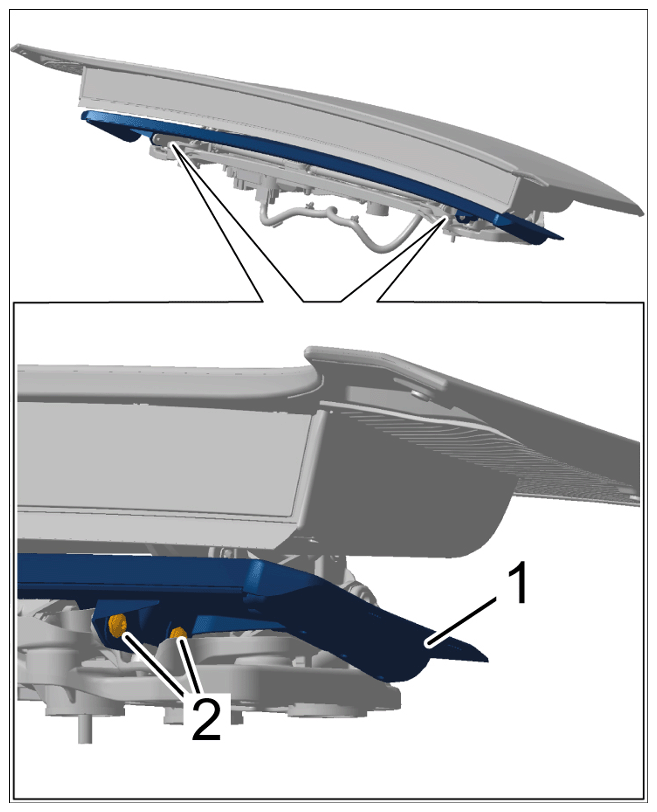

Screws securing rear spoiler closing element to spoiler drive Item 2 Tightening torque 4.5 Nm (3.3 ftlb.)
G15873303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear spoiler closing element to bracket

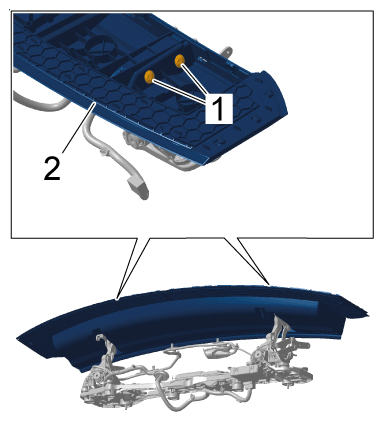

Screws securing lower part of spoiler to spoiler drive Item 1 Tightening torque 5.6 Nm (4.1 ftlb.)
G15873304Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing lower part of spoiler to bracket

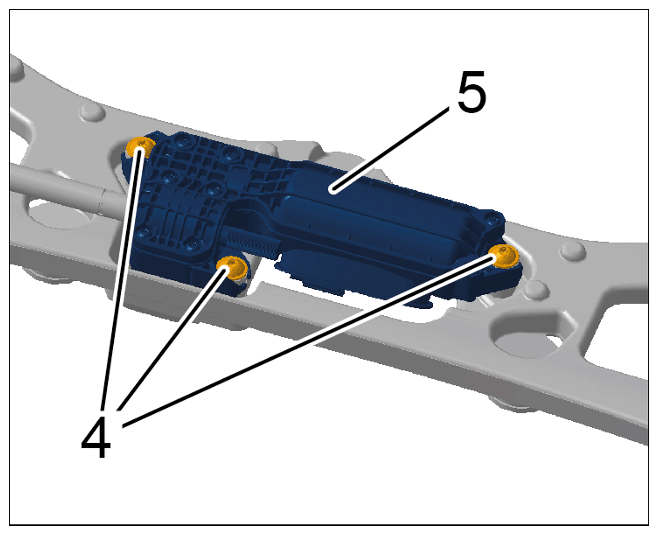

Screw securing rear spoiler motor to bracket Item 4 Tightening torque 0 Nm (0 ftlb.)
G15873305Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew screws.

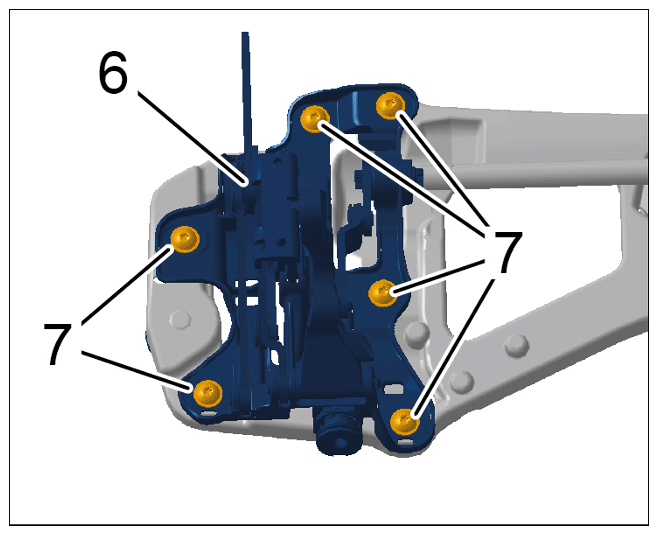

Screws securing spoiler drive to bracket Item 7 Tightening torque 0 Nm (0 ftlb.)
G15873306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing spoiler drive to bracket

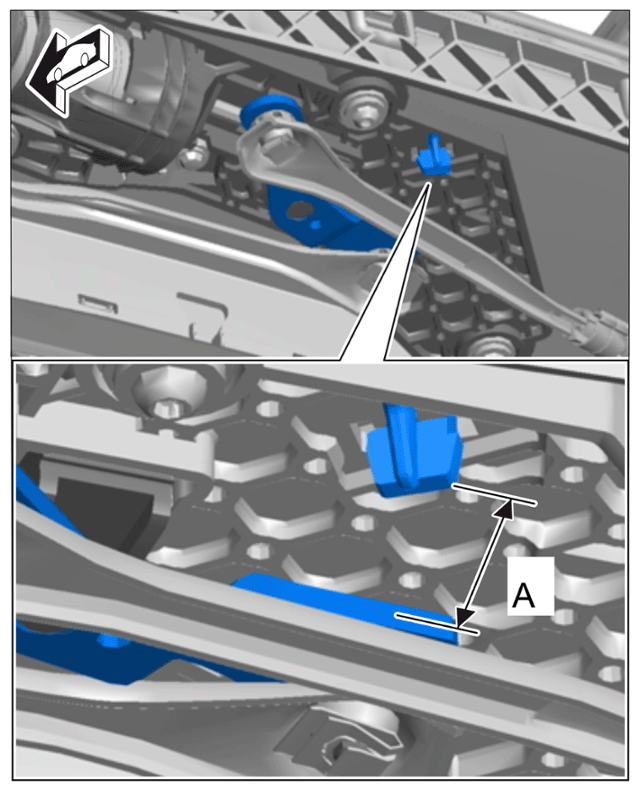

Gap between deflection lever and limit stop Dimension A Gap 20 mm
G15873307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moving motor for spoiler drive into adjustment position

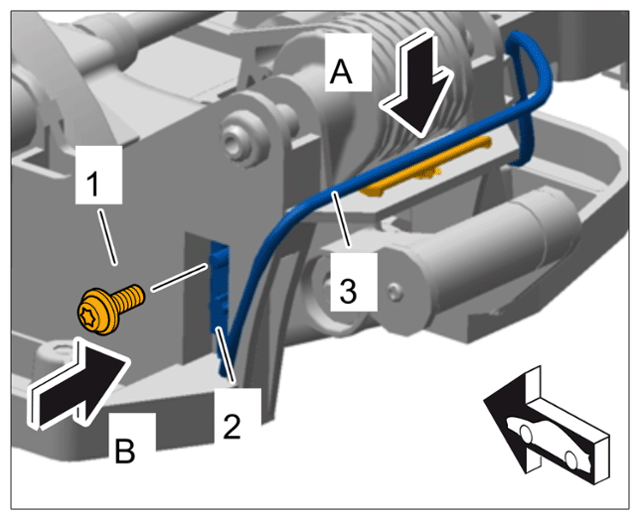

Screw securing rear-spoiler microswitch to spoiler drive Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15873308Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing rear spoiler microswitch to spoiler drive

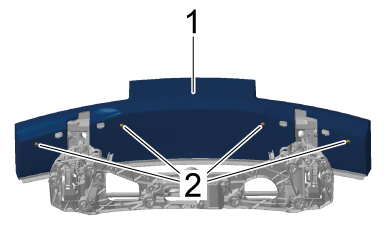

Screw securing trim to lower part of spoiler (wing) Item 2 Tightening torque 1.3 Nm (1 ftlb.)
G15873309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing trim to lower part of spoiler (wing)

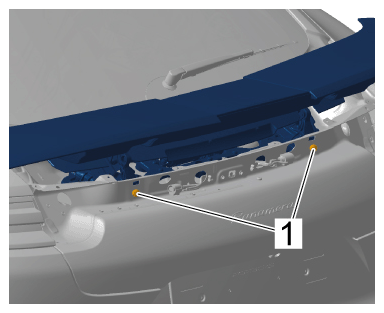

Screw securing rear spoiler to bracket M6 x 32 Tightening torque 8 Nm (5.9 ftlb.)
G15873310Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing rear spoiler to bracket

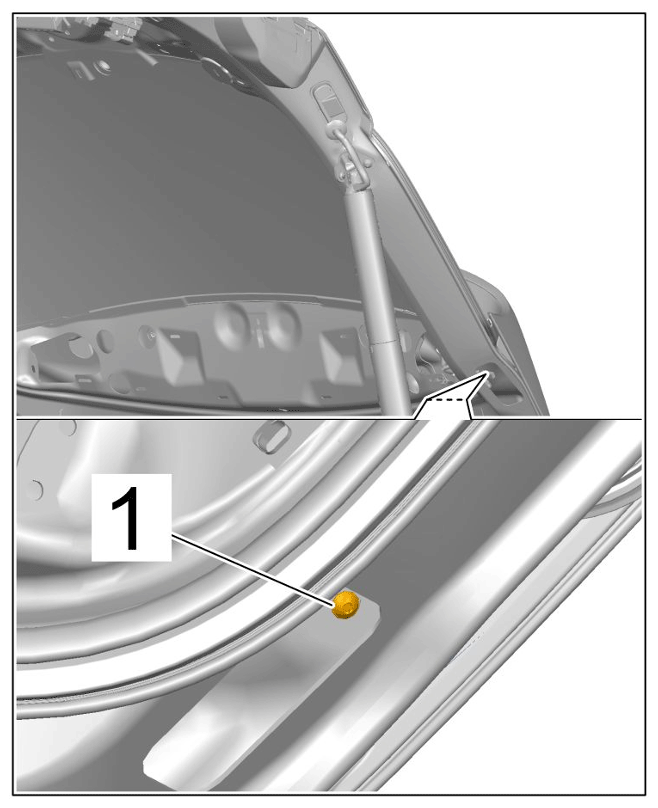

Screws securing rear spoiler to rear lid, side Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15873311Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

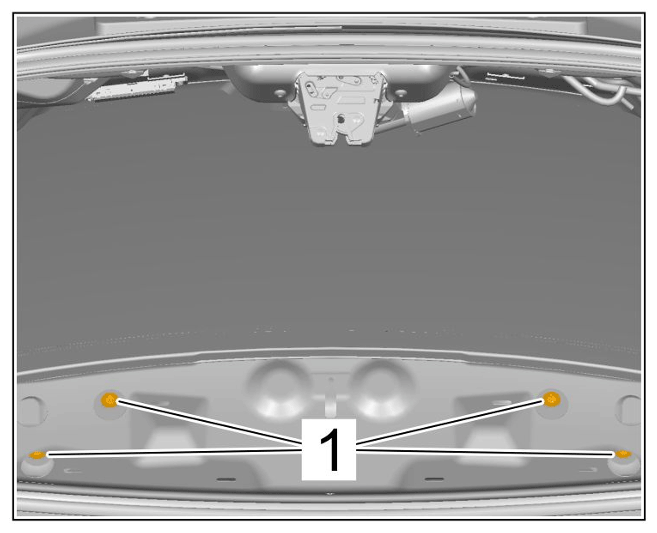

Screws securing rear spoiler to rear lid Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15873312Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

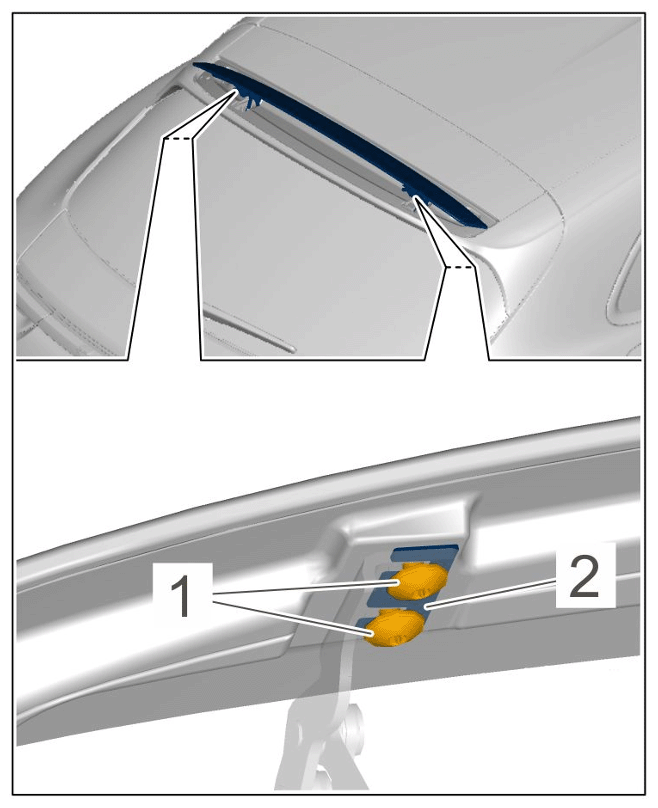

Rear spoiler (wing) Item 1 Tightening torque 6 Nm (4.4 ftlb.)
G15873313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler (wing)

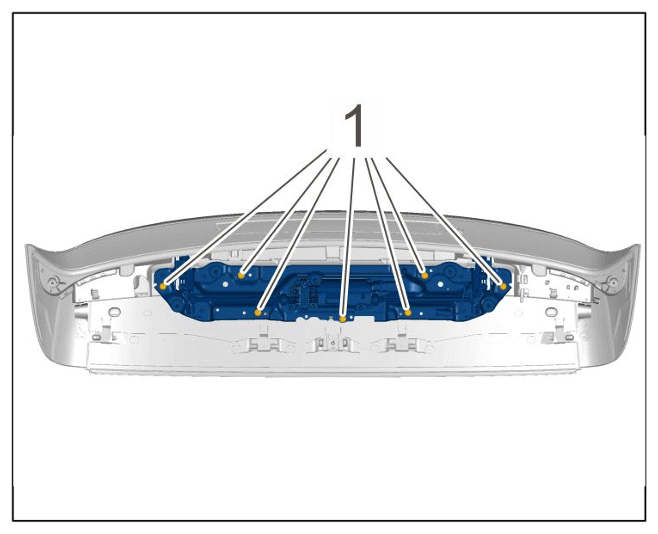

Spoiler drive Item 1 Tightening torque 8 Nm (5.9 ftlb.)
G15873314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

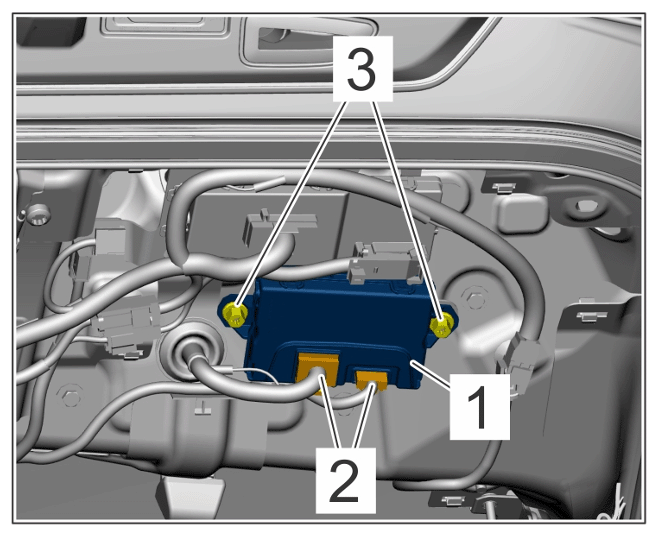

Nuts securing control unit for rear spoiler to rear lid Item 3 Tightening torque 1.5 Nm (1.1 ftlb.)
G15873315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for rear spoiler

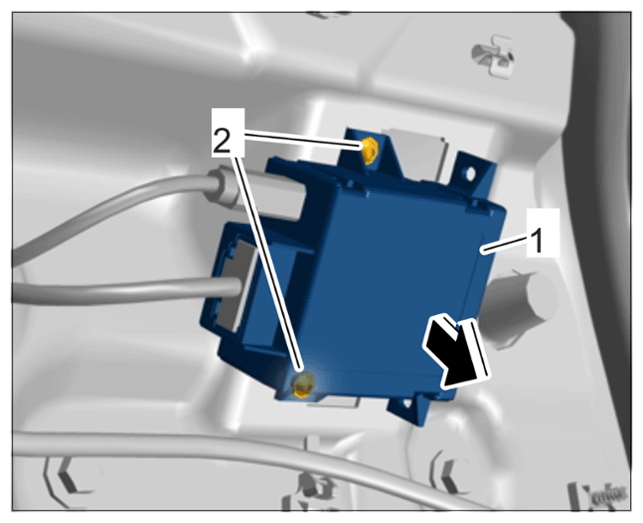

Screws securing Auxiliary heater control unit to rear lid Item 2 Tightening torque 2 Nm (1.5 ftlb.)
G15873316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Auxiliary heater control unit

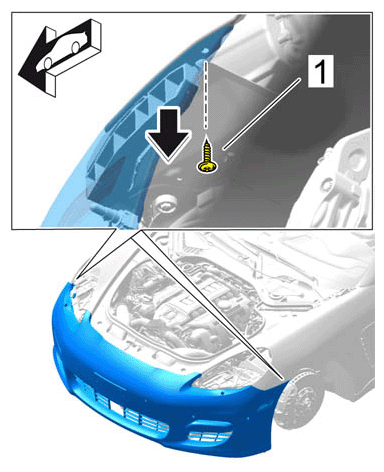

Screw securing front apron to wing Item 1 Tightening torque 2.8 Nm (2 ftlb.) (2.1 ftlb.)
G15873317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw on fender

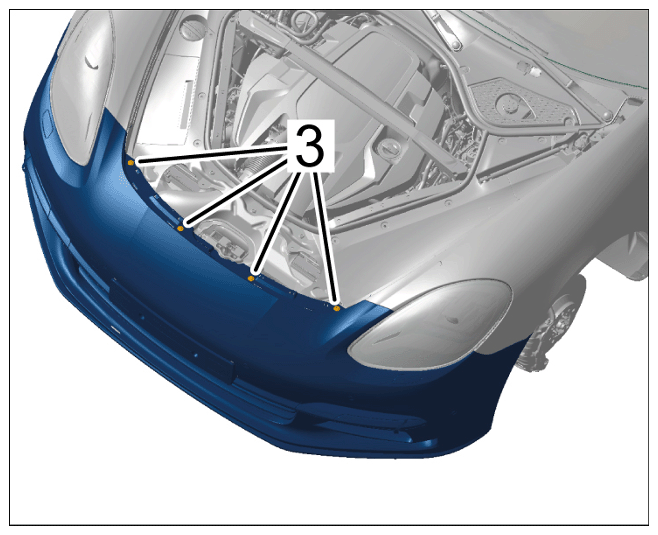

Screw securing front bumper to mounting bracket Item 3 Tightening torque 5.5 Nm (4.1 ftlb.)
G15873318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw on fender

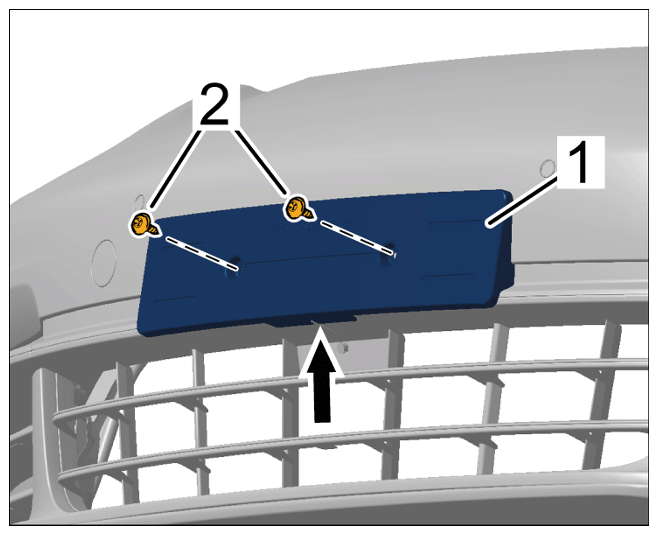

Screws for number plate trim ECE/USA Item 2 Tightening torque 2.5 Nm (1.8 ftlb.) (1.8 ftlb.)
G15873319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for number plate cover, ECE/USA

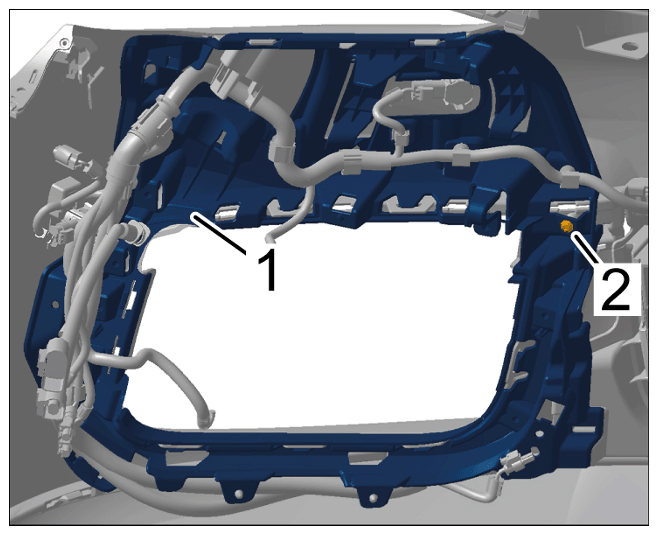

Screw securing frame to front bumper Item 2 Tightening torque 2.5 Nm (1.8 ftlb.) (1.8 ftlb.)
G15873320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening frame
Screws for number plate trim Japan/China   Tightening torque 0.6 Nm (0.44 ftlb.) (0.4 ftlb.)

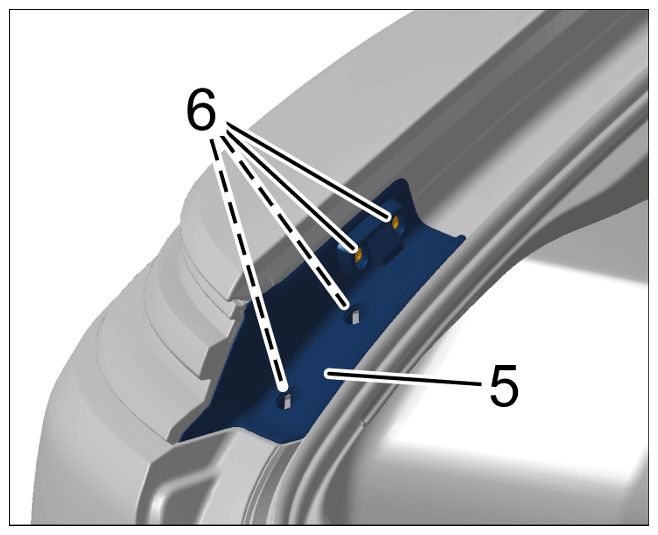

Screws on tail light trim panel Item 6 Tightening torque 6 Nm
G15873321Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on tail light trim panel

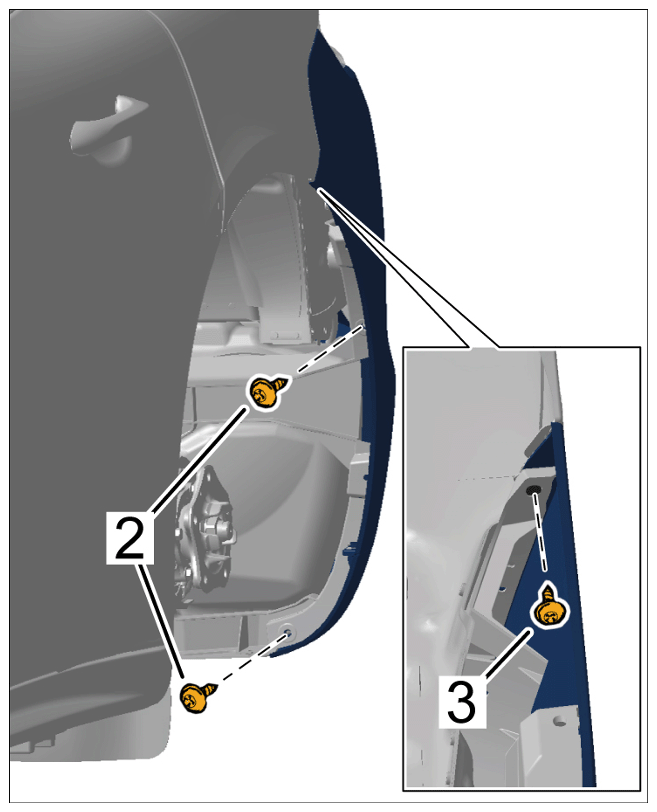

Screws securing rear apron to retaining frame Item 2 Tightening torque 3 Nm
G15873322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear apron to retaining frame
Screw securing rear apron to side panel Item 3 Self-locking screw, must always be replaced Tightening torque 7 Nm
G15873323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing rear apron to side panel

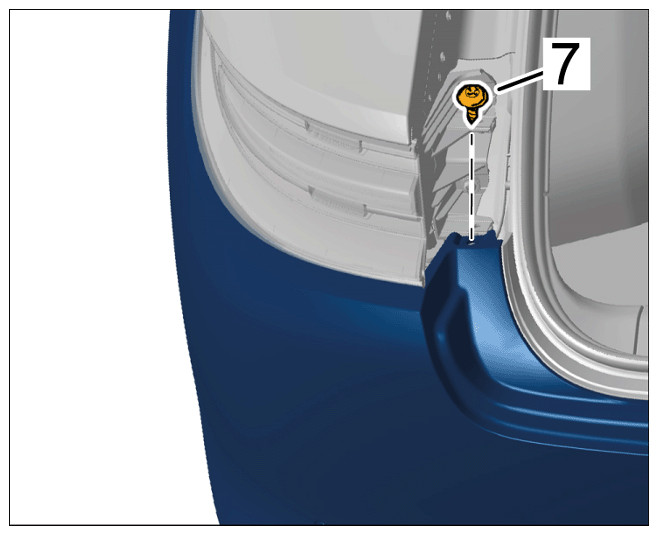

Screw securing rear apron to frame for light Item 7 Tightening torque 3 Nm
G15873324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing rear apron to frame for light

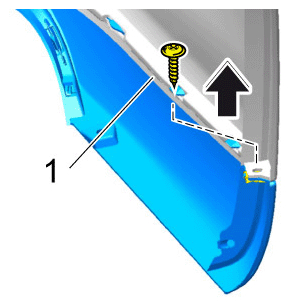

Screw securing rear skirt to rear apron Item 1 Tightening torque 2.5 Nm
G15873325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing rear skirt to rear apron

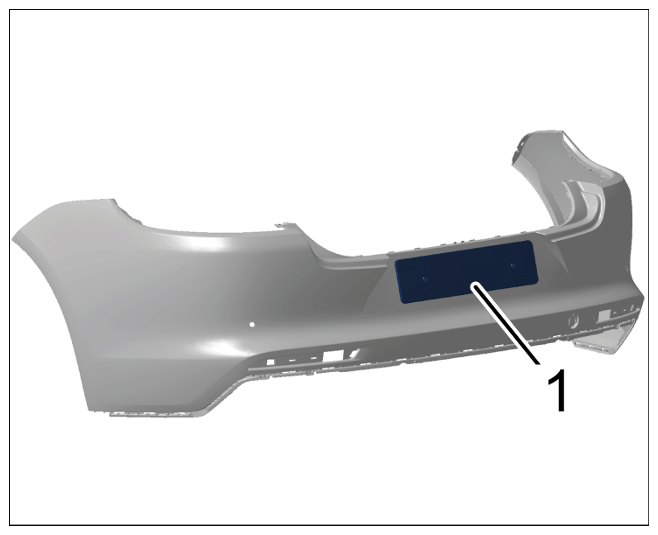

Screws for number plate cover   Tightening torque 0.7 Nm
G15873326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for number plate trim

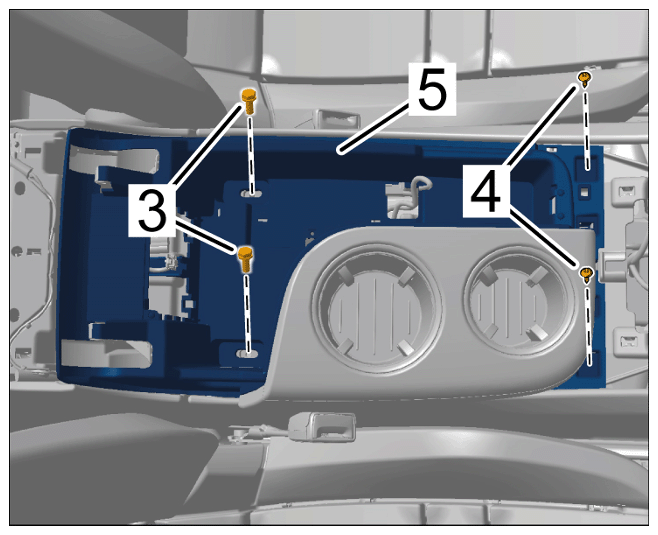

Screws for centre console oddments tray Item 3 Tightening torque 8 Nm (6 ftlb.) +/- 0.5 %
G15873327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for oddments tray

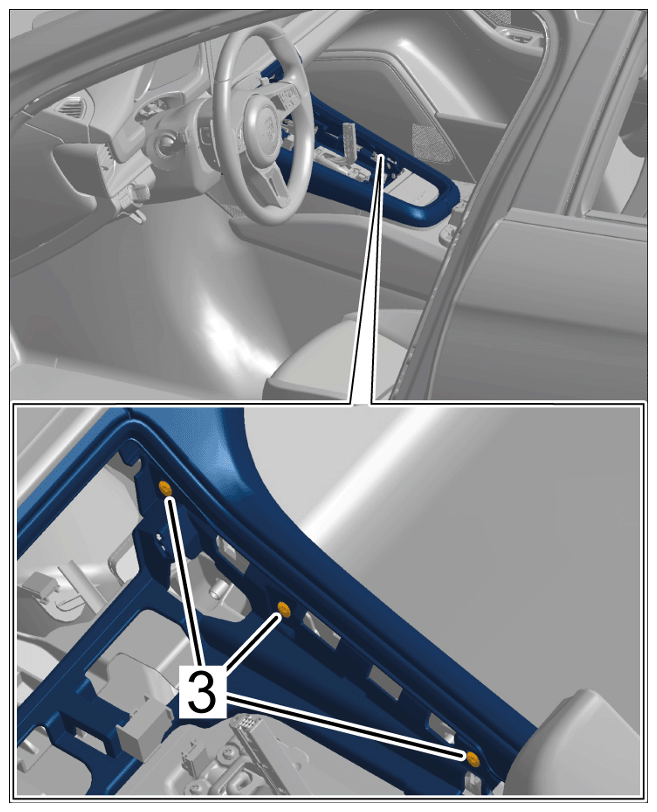

Screw for upper part of front centre console Item 3 Tightening torque 1.5 Nm (1 ftlb.)
G15873328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for upper part of front centre console

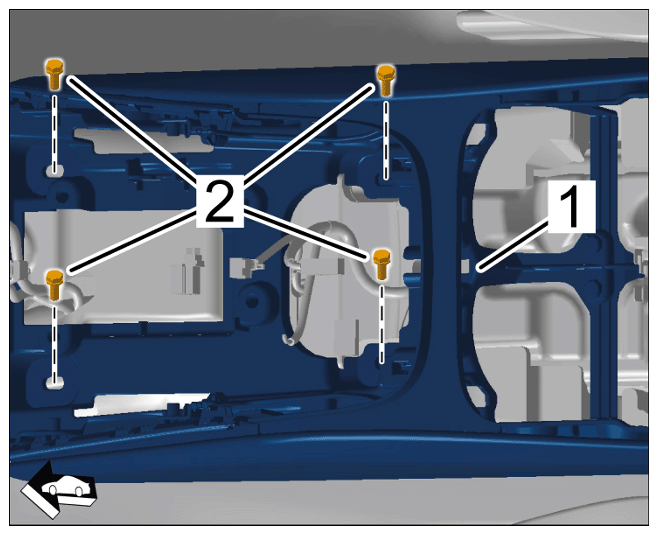

Screw for centre console Item 2 Tightening torque 8 Nm (6 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15873329Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console screw

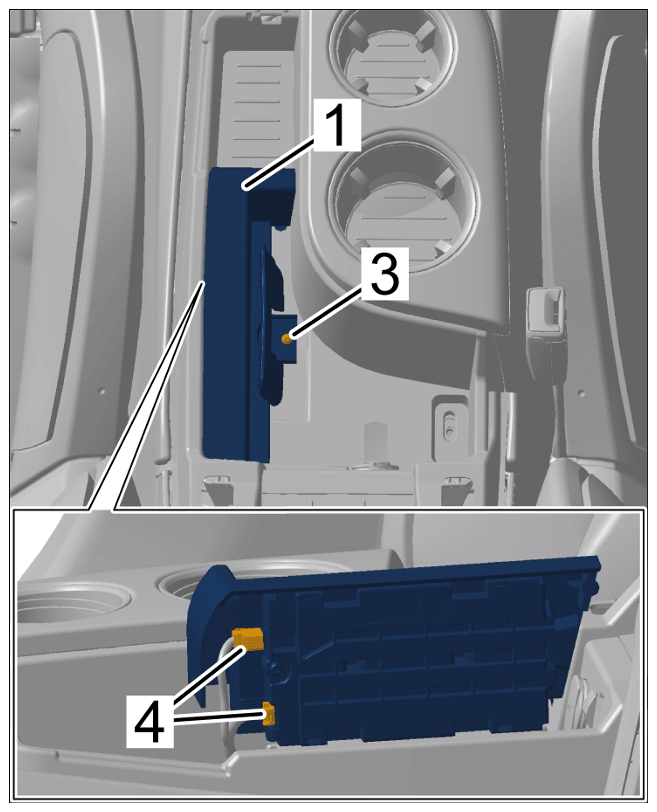

Screw for telephone bracket Item 3 Tightening torque 1.5 Nm (1 ftlb.)
G15873330Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for telephone bracket

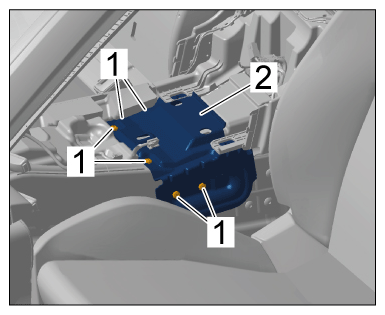

Screws securing centre console holder to centre console Item 1 Tightening torque 8 Nm (6 ftlb.) +/- 0.5 Nm (0.4 ftlb.)
G15873331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing centre console holder to centre console

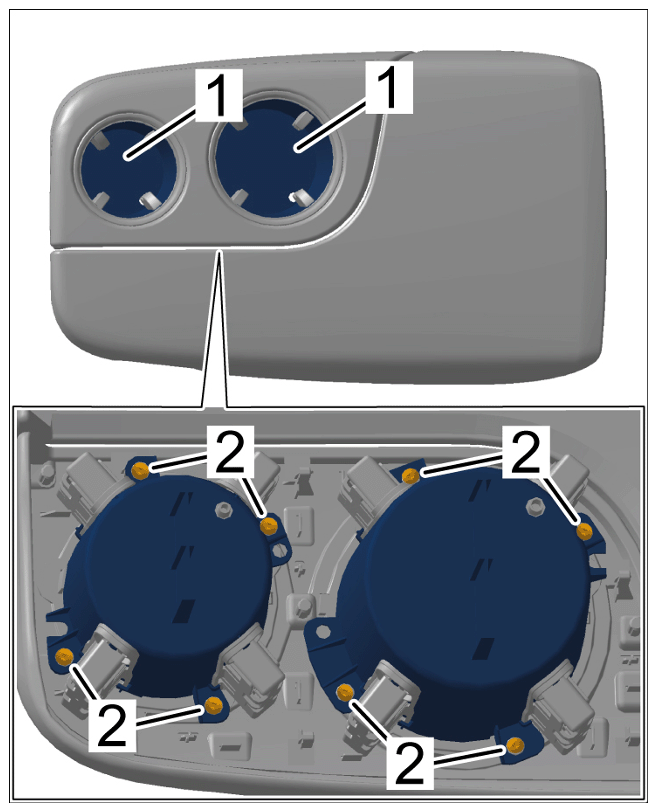

Screws for front cupholder Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15873332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front cupholder

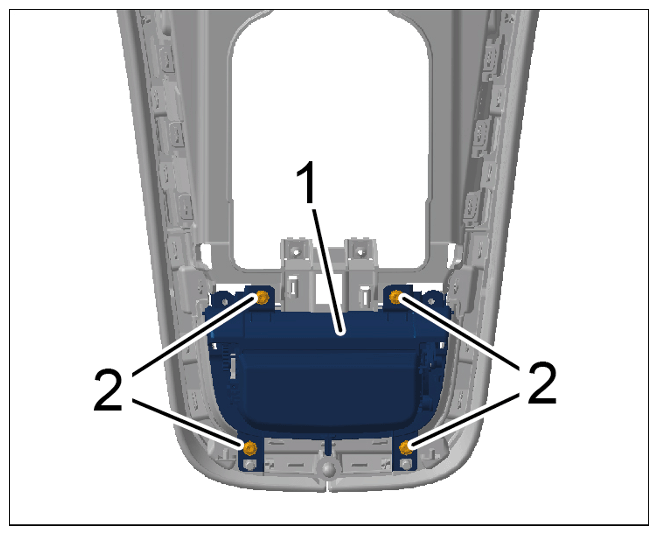

Screws for front ashtray/tray Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15873333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for front ashtray/tray

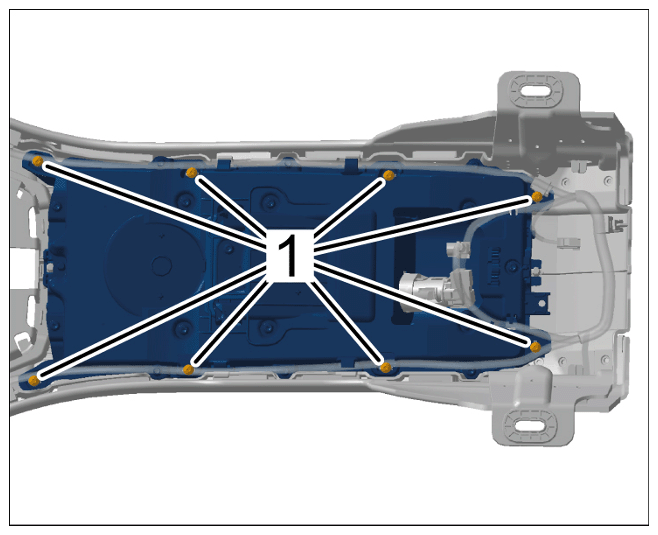

Screw securing cupholder to rear centre console Item 1 Tightening torque 1.2 Nm (0.8 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
G15873334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing cupholder to rear centre console

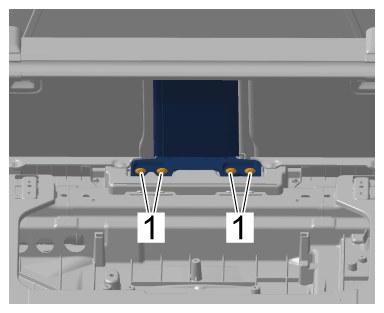

Screws for rear centre console (Business) Item 1 Tightening torque 12 Nm (9 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
G15873335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear centre console (Business)

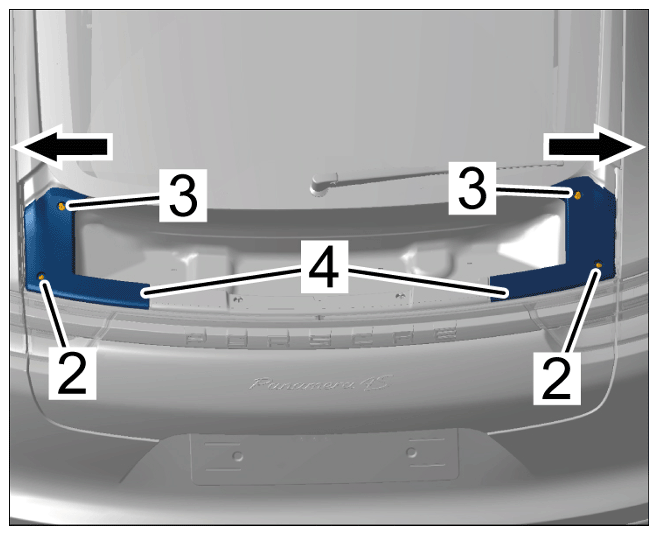

Screw for tailgate cover Item 2 Tightening torque 4 Nm (3 ftlb.)
G15873336Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for tailgate cover

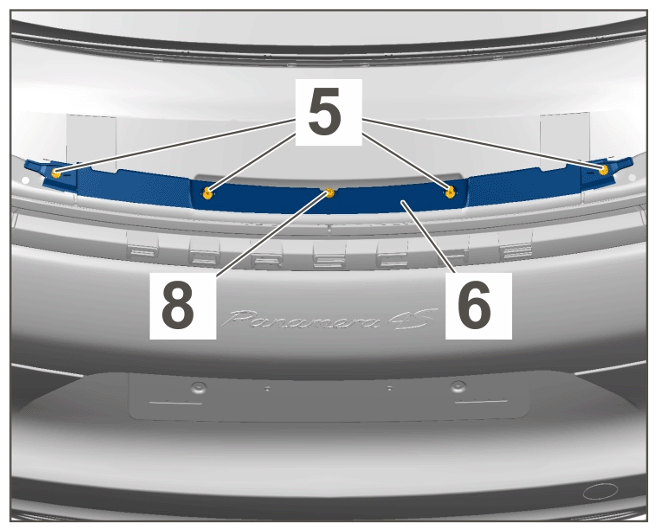

Screw for centre cover Item 8 Tightening torque 4 Nm (3 ftlb.)
G15873337Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove centre cover

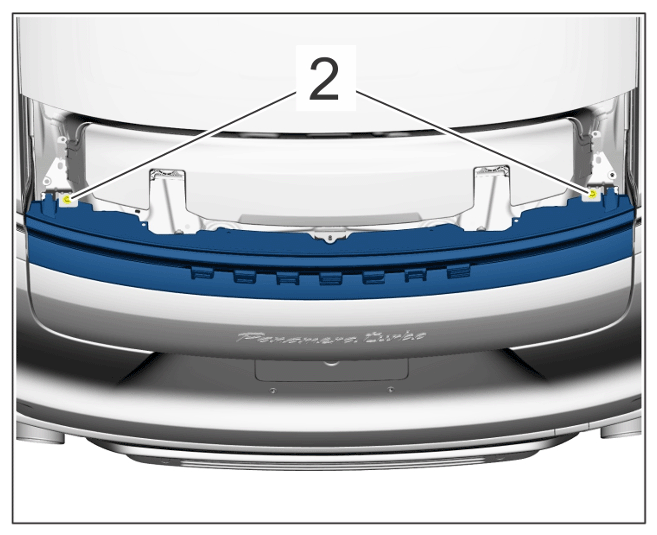

Screws for trim strip on rear lid Item 2 Tightening torque 6 Nm (4.4 ftlb.)
G15873338Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for trim strip on rear lid

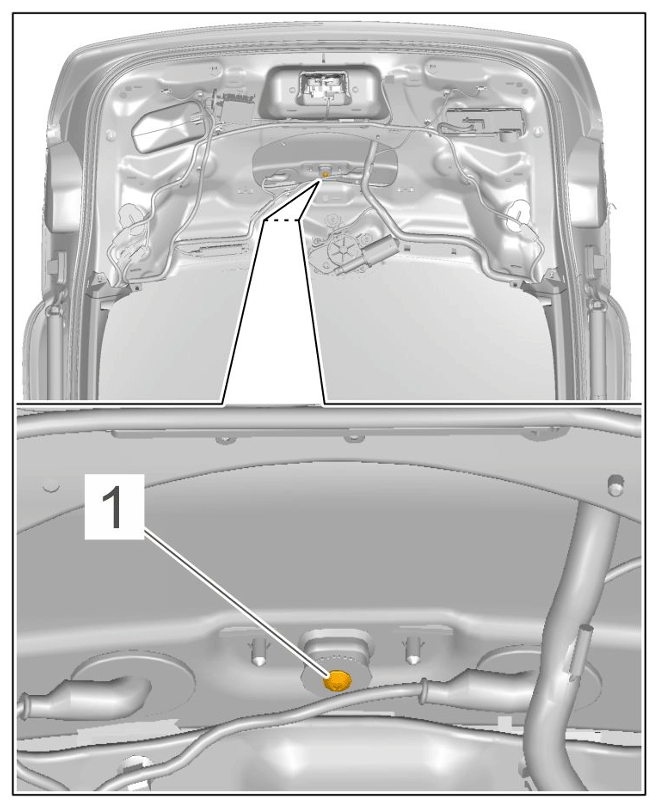

Screw for moulding Item 1 Tightening torque 4 Nm (3 ftlb.)
G15873339Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

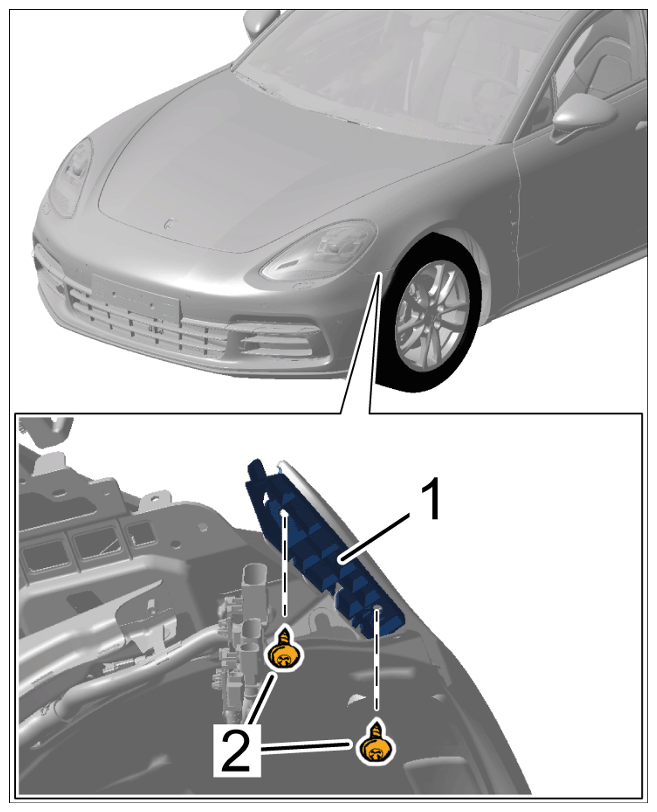

Screw securing retaining strip to wing Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)
G15873340Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing retaining strip to wing

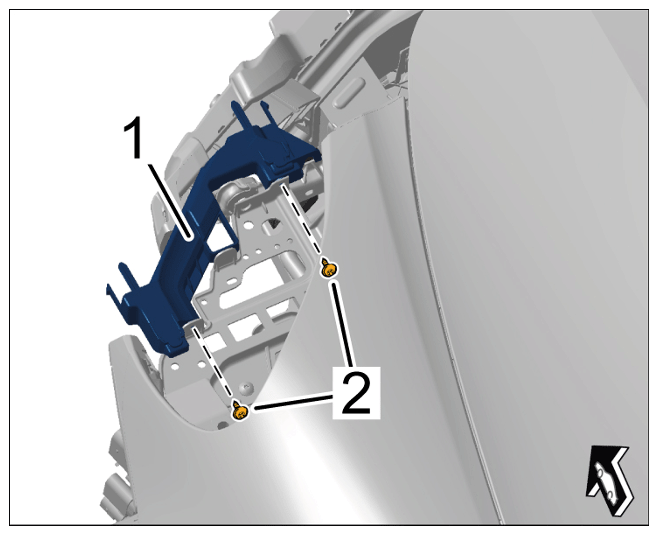

Screws for retaining strip under headlight Item 2 Tightening torque 5.5 Nm (4.1 ftlb.)
G15873341Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for retaining strip under headlights

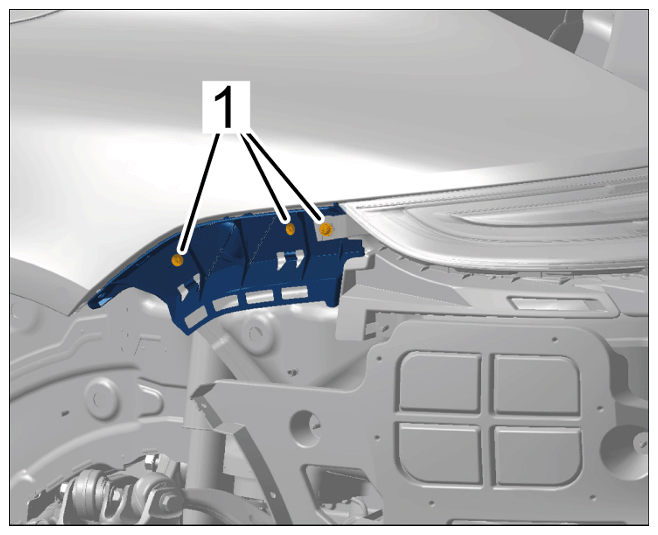

Screws for rear retaining strip side Item 1 Tightening torque 3.5 Nm (2.6 ftlb.)
G15873342Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear retaining strip at the sides

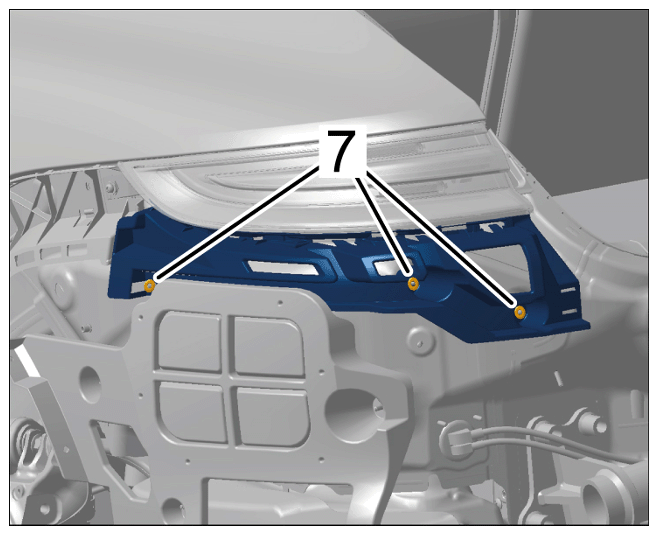

Nut on retaining strip for tail light Item 7 Tightening torque 3.5 Nm (2.6 ftlb.)
G15873343Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for holder with heat protection

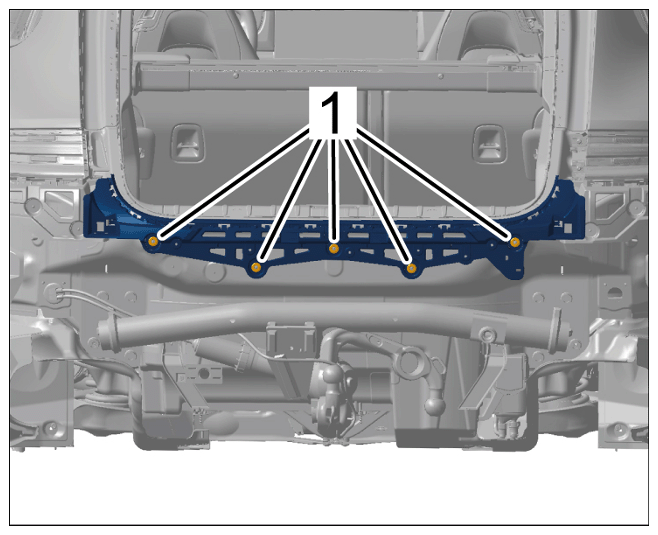

Nuts on centre retaining strip Item 1 Tightening torque 6 Nm (4.4 ftlb.)
G15873344Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on centre retaining strip

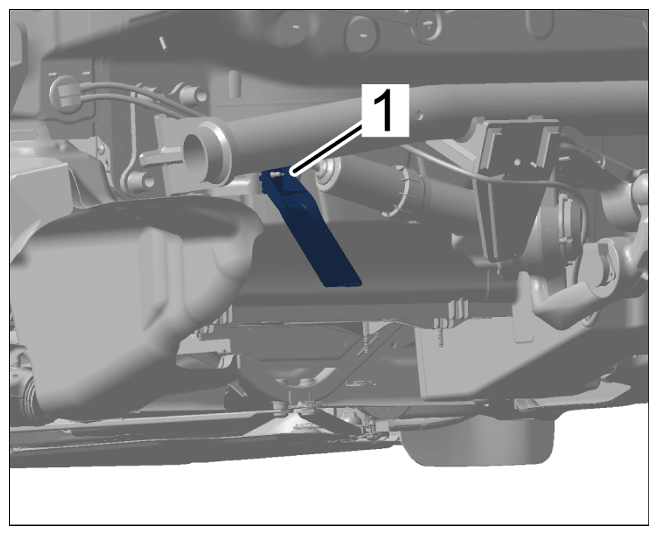

Nut on centre retaining strip bottom Item 1 Tightening torque 3.5 Nm (2.6 ftlb.)
G15873345Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on centre retaining strip at the bottom

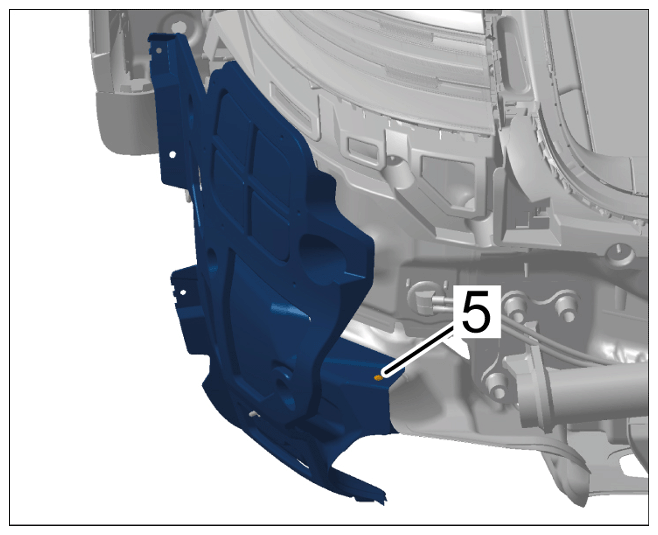

Screw for retaining strip with heat protection Item 5 Tightening torque 2.5 Nm (1.8 ftlb.)
G15873346Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for retaining strip on rear light

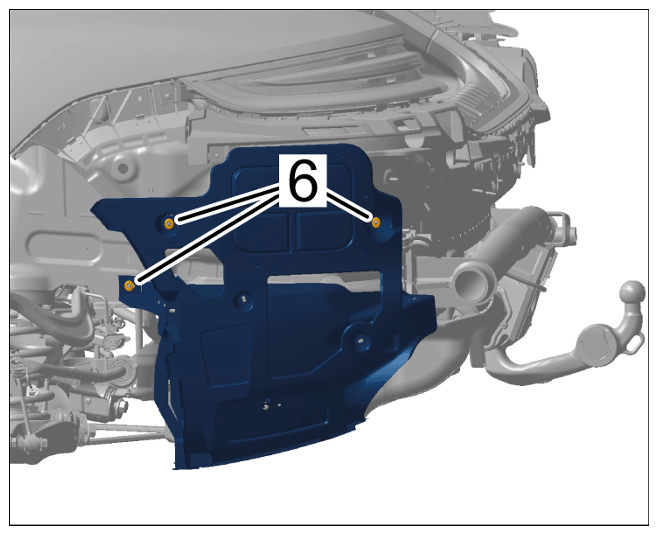

Nut on retaining strip with heat protection Item 6 Tightening torque 9 Nm (6.6 ftlb.)
G15873347Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for holder with heat protection

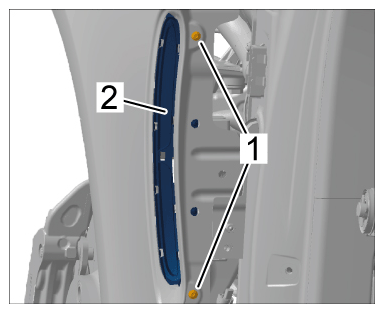

Screw on side air intake grille Item 2 Tightening torque 2.8 Nm (1.8 ftlb.)
G15873348Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on side air intake grille

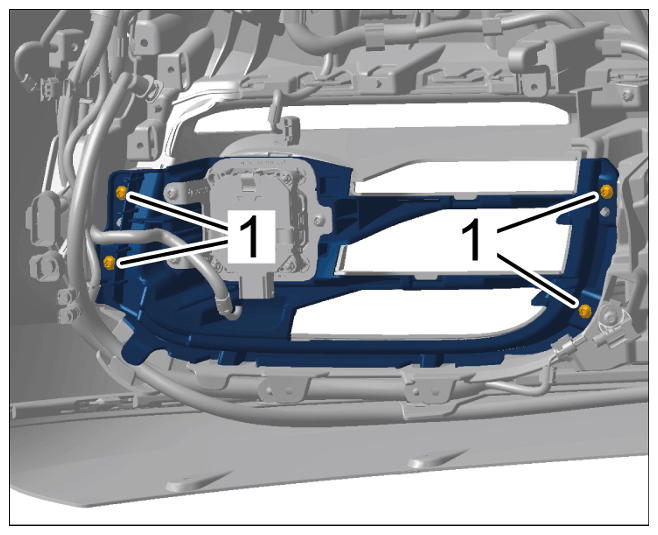

Screws securing air grille to front apron Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15873349Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing air grille to front apron

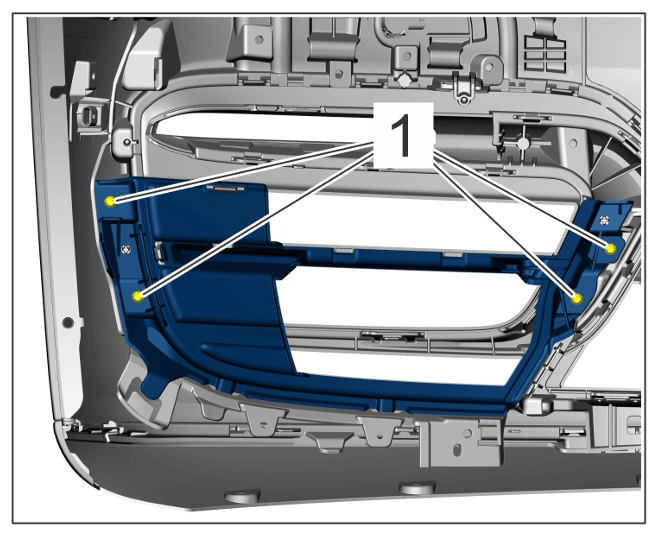

Screws for air grille Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15873350Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

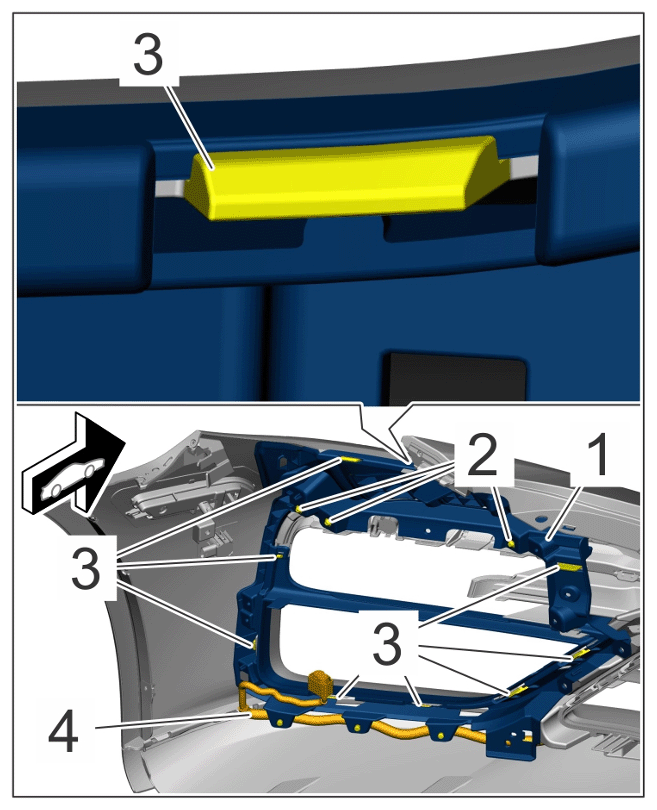

Front air grille (retaining frame) Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15873351Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front air grille (retaining frame)

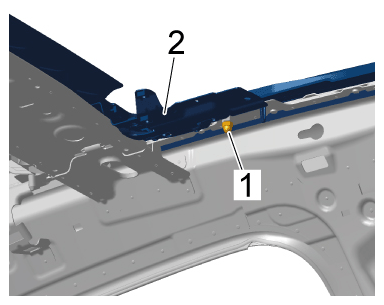

Cap nut for panoramic roof Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15873352Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing off cap nut

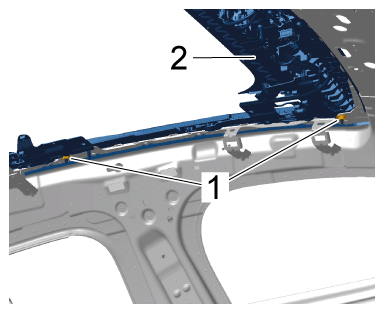

Nut for panoramic roof Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15873353Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nuts

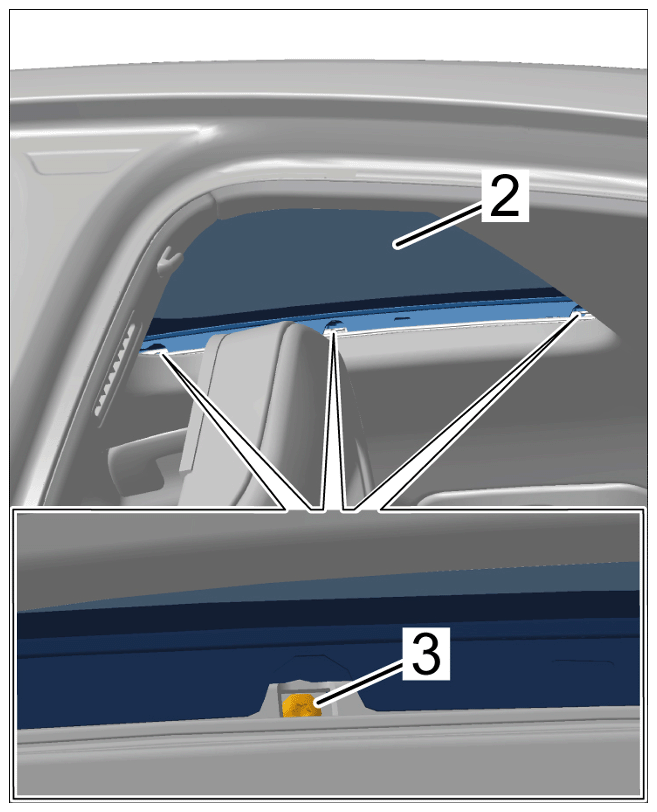

Screw on sliding-roof panel Item 3 Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G15873354Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on sliding-roof panel
Nut on sliding roof element Item 1 Tightening torque 2.4 Nm (1.8 ftlb.) +/- 0.1 Nm (0.07 ftlb.)
G15873355Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on sliding roof element
Screw on sliding roof element Item 2 Tightening torque 2.5 Nm (1.8 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15873356Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on sliding roof element

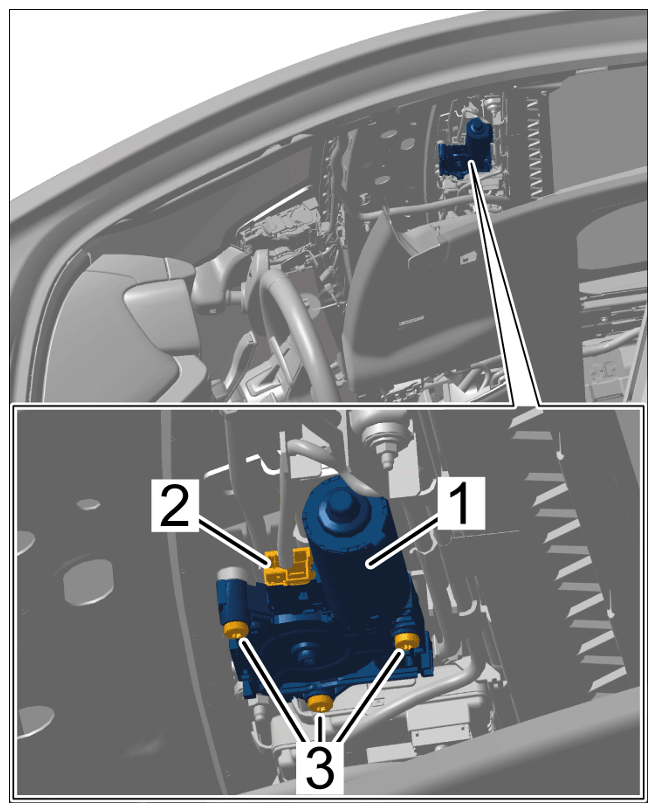

Screws for sun blind motor (front) Item 3 Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15873357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for sun blind motor (front)

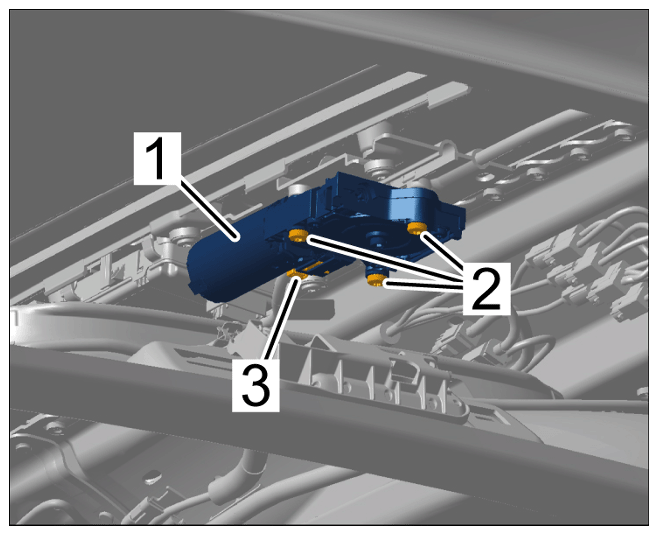

Screws for sun blind motor (rear) Item 2 Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15873358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for sun blind motor (rear)

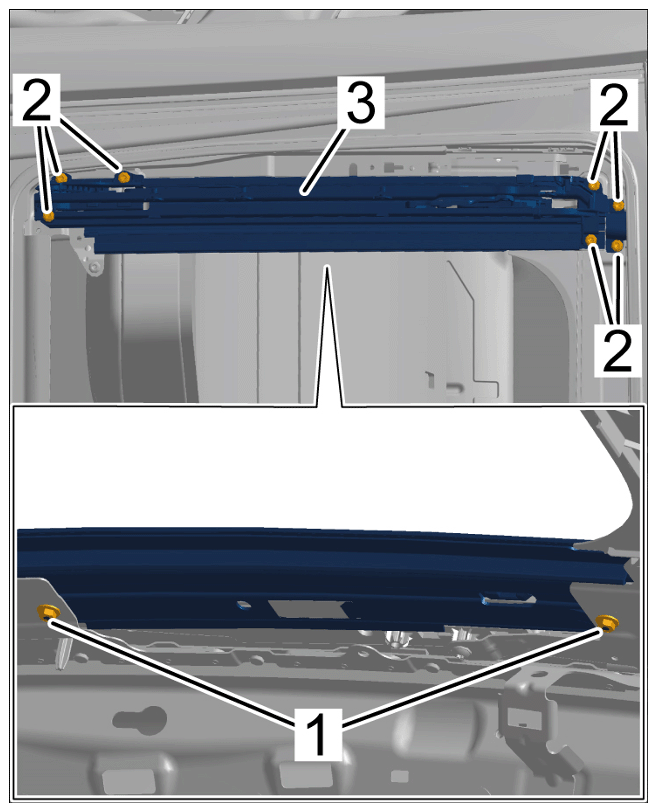

Screw securing front roof sun blind to guide rail on roof frame Item 4 Tightening torque 2 Nm (1.5 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15873359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing sun blind to guide rail on roof frame

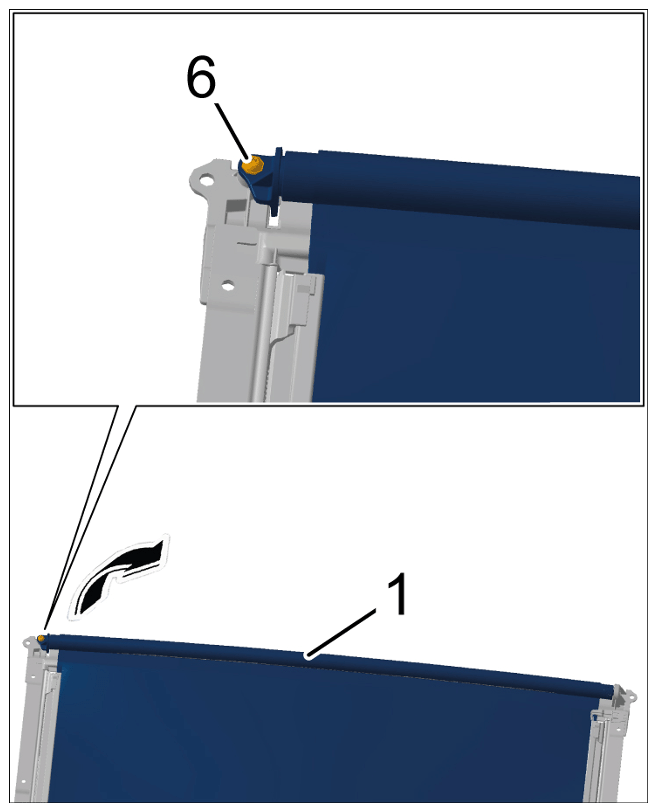

Screw securing rear roof sun blind to frame Item 6 Tightening torque 2.5 Nm (1.8 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15873360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear roof sun blind

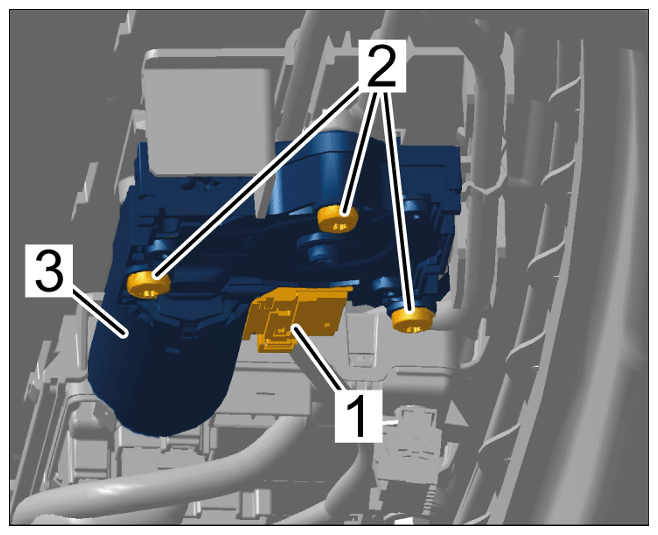

Screw on motor for glass sliding roof Item 2 Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15873361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on motor for glass sliding roof

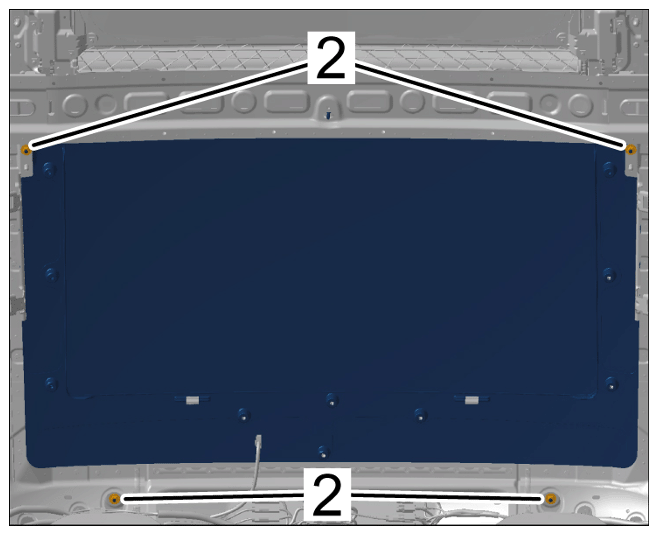

Nut securing rear panoramic roof glass panel to body Item 2 Tightening torque 6 Nm (4.5 ftlb.)
G15873362Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut securing rear panoramic roof glass panel to body

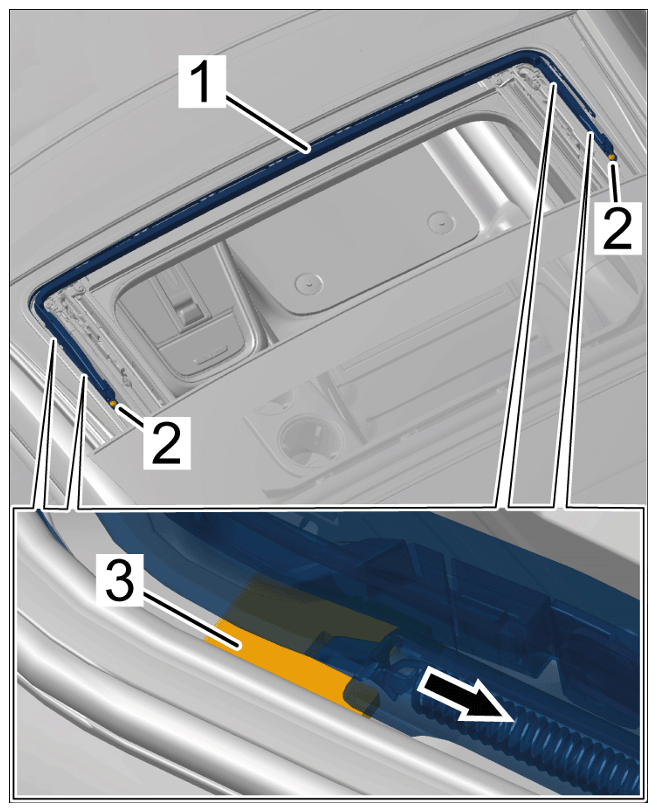

Screws securing air deflector to panoramic roof Item 2 Tightening torque 1.3 Nm (0.8 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15873363Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing air deflector

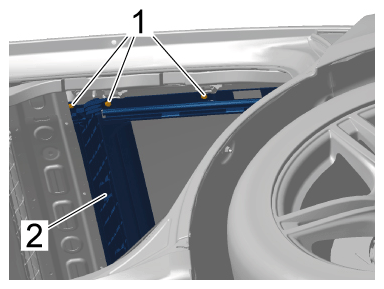

Screws for rear roof sun blind mechanism Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15873364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear sun blind mechanism
Screws for bracket for rear roof sun blind motor Item 1 Tightening torque 2.5 Nm (2 ftlb.)
G15873365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for motor

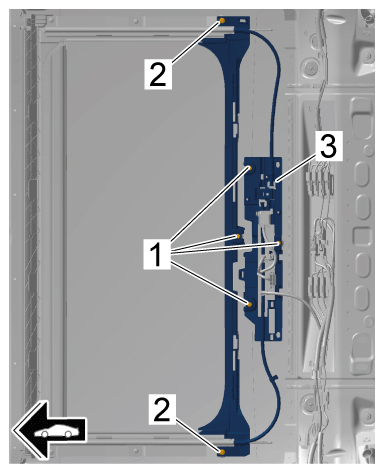

Screws on mechanism for bracket for rear roof sun blind motor Item 2 Tightening torque 2 Nm (1.5 ftlb.)
G15873366Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for motor

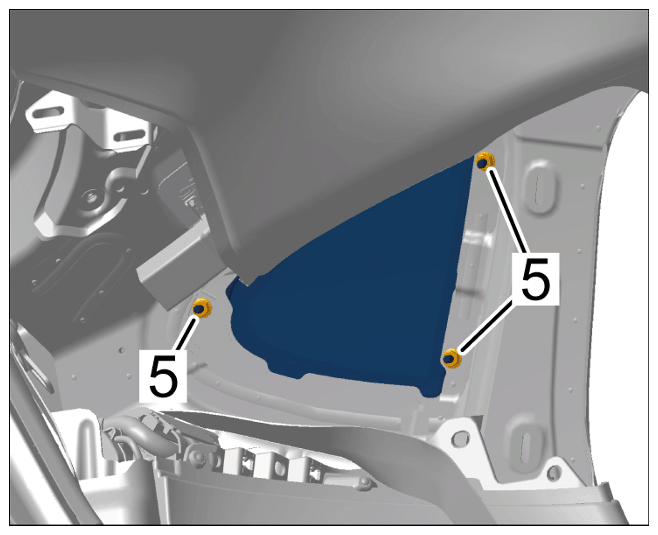

Nut securing rear side window to body Item 5 Tightening torque 8 Nm (6 ftlb.)
G15873367Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut securing rear side window to body
Screw on trailer hitch Item 1, always replace following removal Initial tightening 50 Nm (37 ftlb.)
G15873368Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch
Screw on trailer hitch Item 1, always replace following removal Final tightening + 120°
G15873369Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch
Screw on trailer hitch Item 2, always replace following removal Initial tightening 16 Nm (12 ftlb.)
G15873370Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch

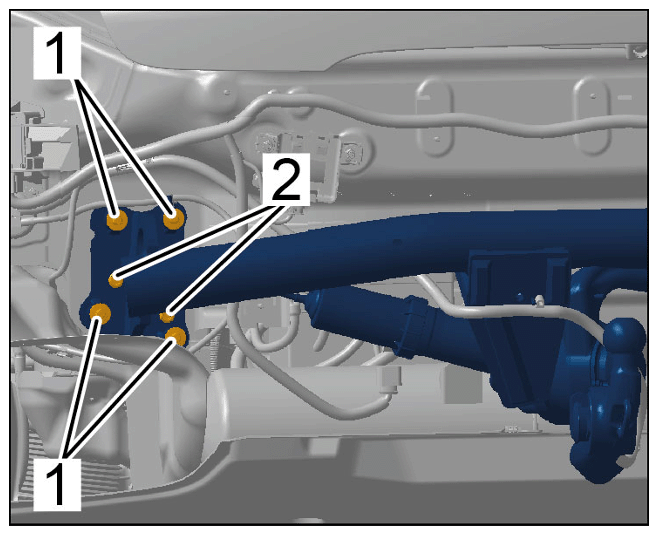

Screw on trailer hitch Item 2, always replace following removal Final tightening + 90°
G15873371Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch

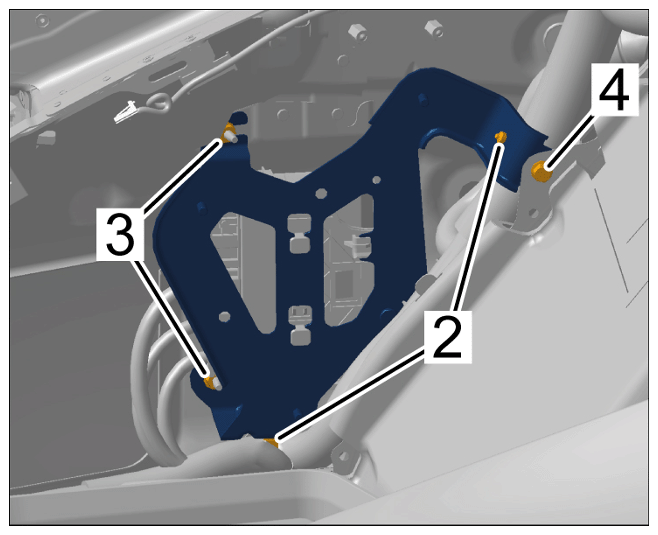

Nuts for trailer hitch control unit holder Item 3 Tightening torque 4.7 Nm (3.5 ftlb.)
Screw for trailer hitch control unit holder Item 4 Tightening torque 4.7 Nm (3.5 ftlb.)
G15873372Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trailer hitch control unit holder

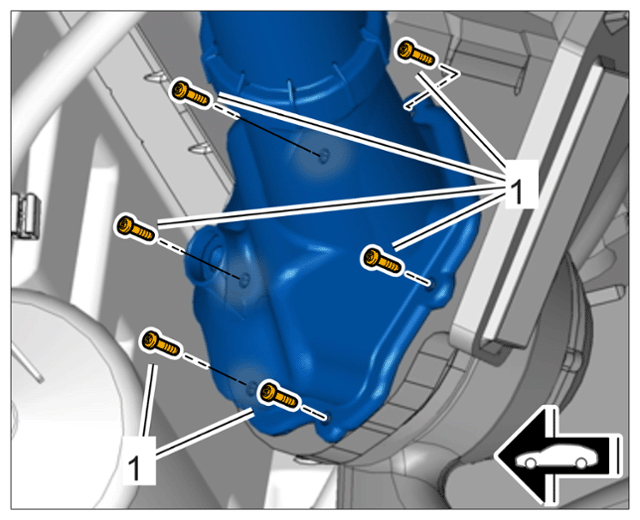

Screw on trailer hitch housing Item 1 Tightening torque 5 Nm (3.5 ftlb.)
G15873373Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trailer hitch housing

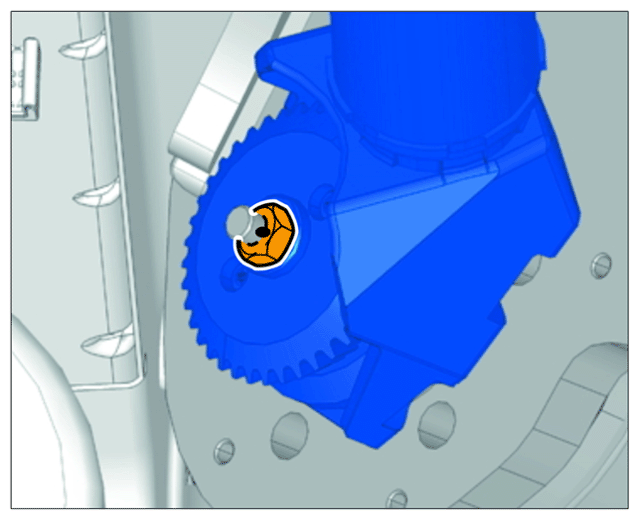

Nut on trailer hitch bevel gear bolt   Tightening torque 6 Nm (4.5 ftlb.)
G15873374Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on trailer hitch bevel gear bolt

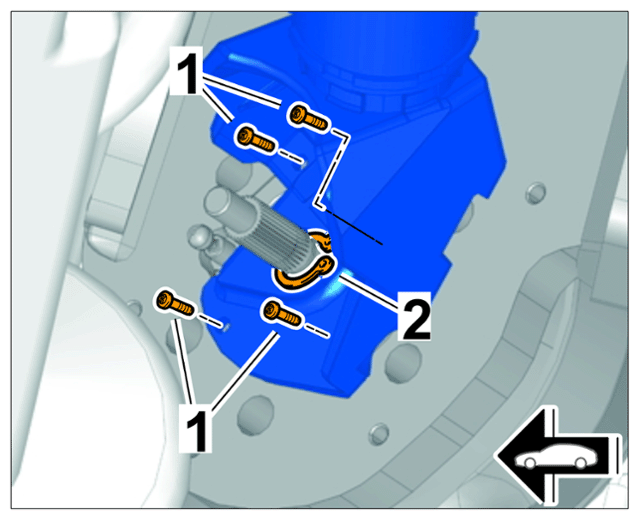

Screw on trailer hitch motor Item 1 Tightening torque 3 Nm (2 ftlb.)
G15873375Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing off motor
scientia non olet · About LEMON Manuals
