Technical Values - Retaining Strips

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

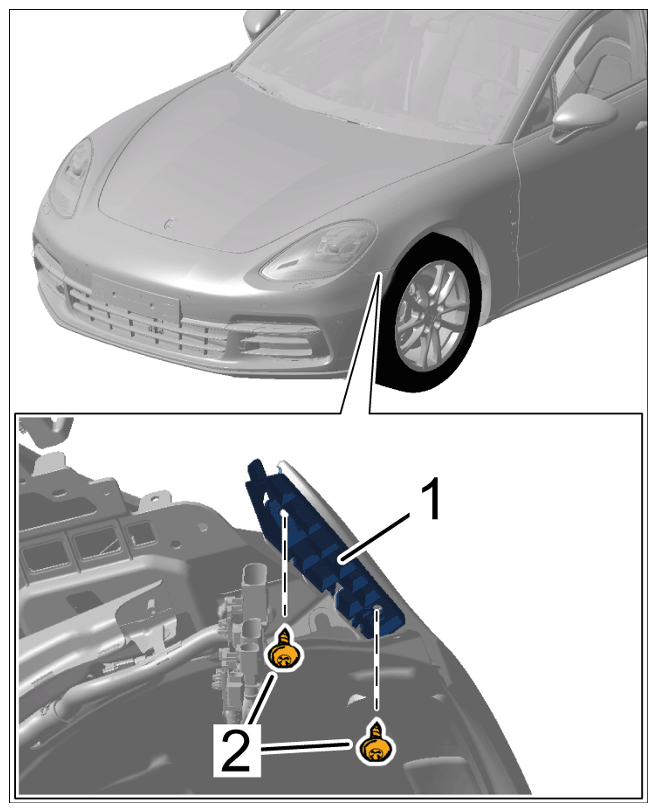

Screw securing retaining strip to wing	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing retaining strip to wing

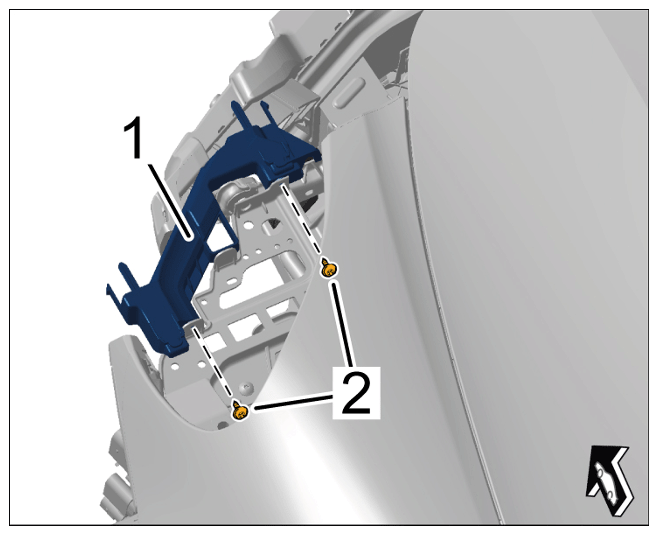

Screws for retaining strip under headlight	Item 2	Tightening torque	5.5 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for retaining strip under headlights

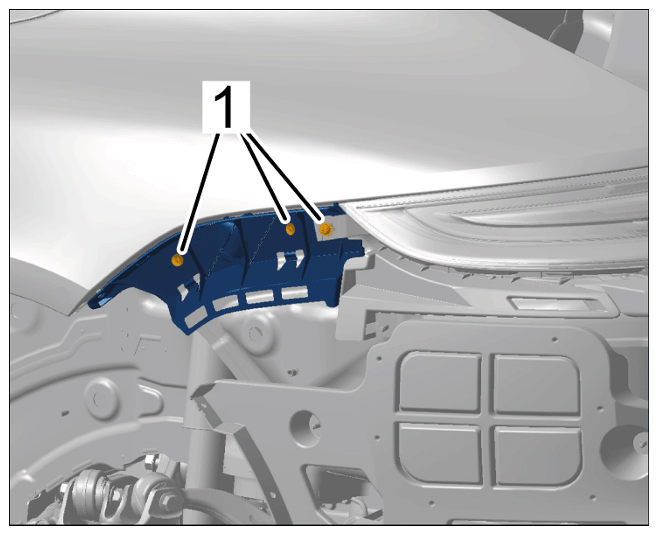

Screws for rear retaining strip side	Item 1	Tightening torque	3.5 Nm (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear retaining strip at the sides

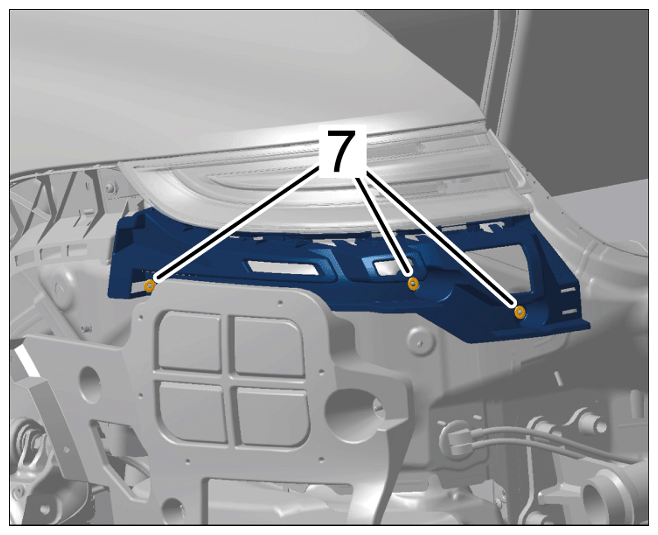

Nut on retaining strip for tail light	Item 7	Tightening torque	3.5 Nm (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for holder with heat protection

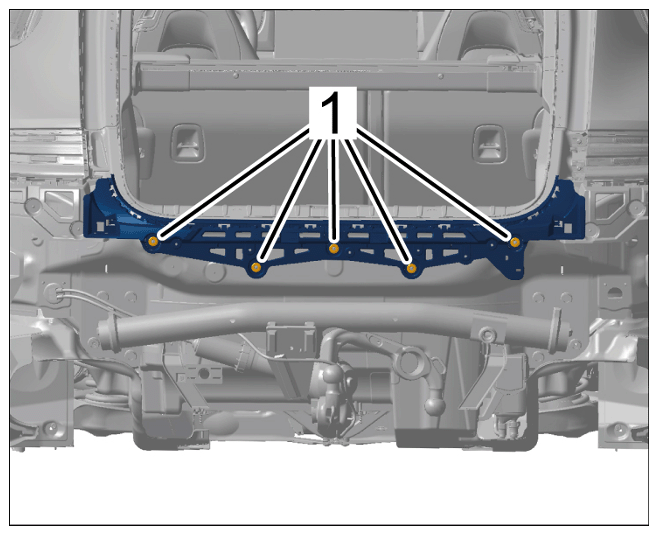

Nuts on centre retaining strip	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on centre retaining strip

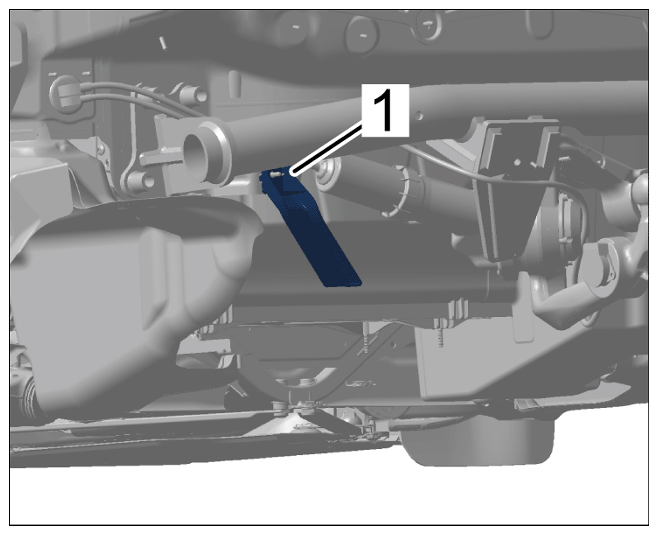

Nut on centre retaining strip bottom	Item 1	Tightening torque	3.5 Nm (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on centre retaining strip at the bottom

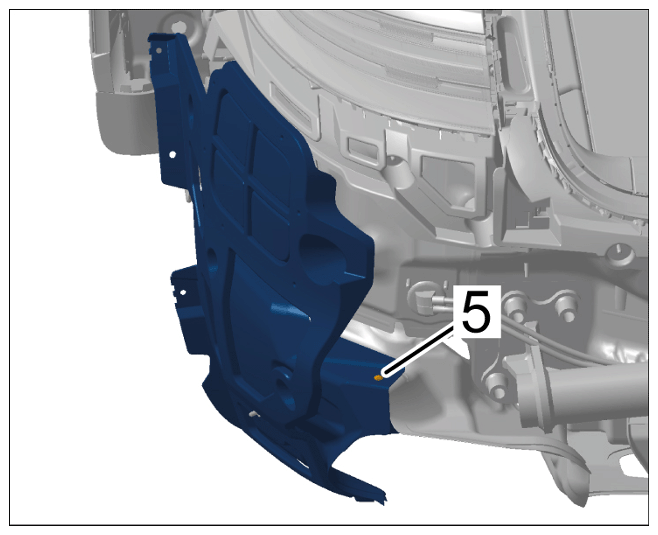

Screw for retaining strip with heat protection	Item 5	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for retaining strip on rear light

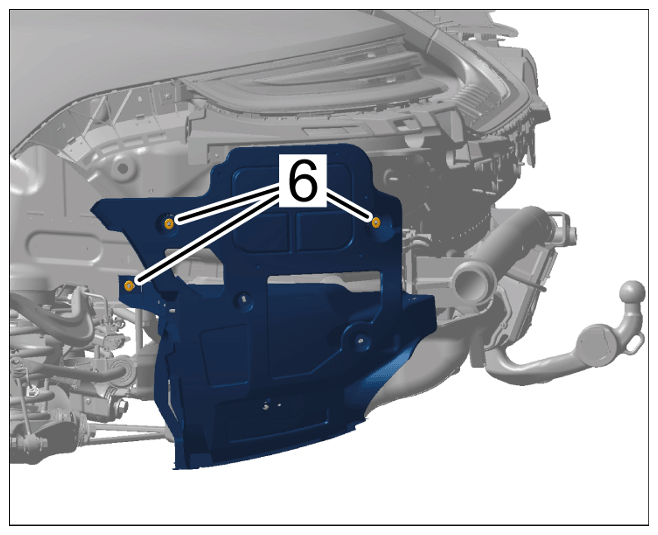

Nut on retaining strip with heat protection	Item 6	Tightening torque	9 Nm (6.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for holder with heat protection
