Technical Values - Rear Apron

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screws on tail light trim panel	Item 6	Tightening torque	6 Nm

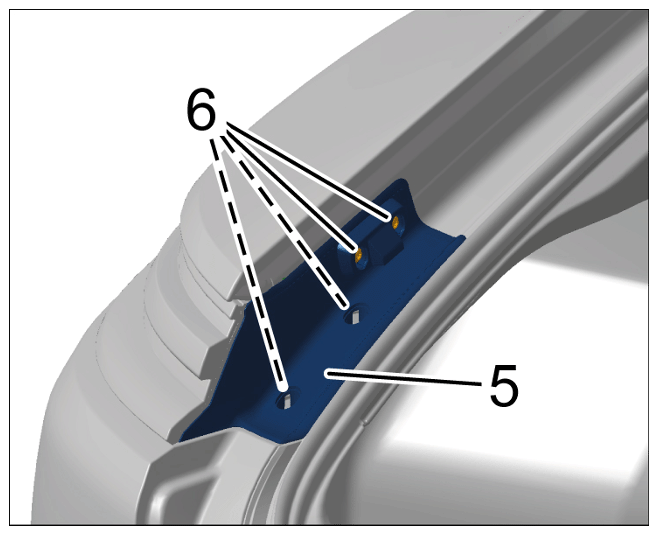

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on tail light trim panel
Screws securing rear apron to retaining frame	Item 2	Tightening torque	3 Nm

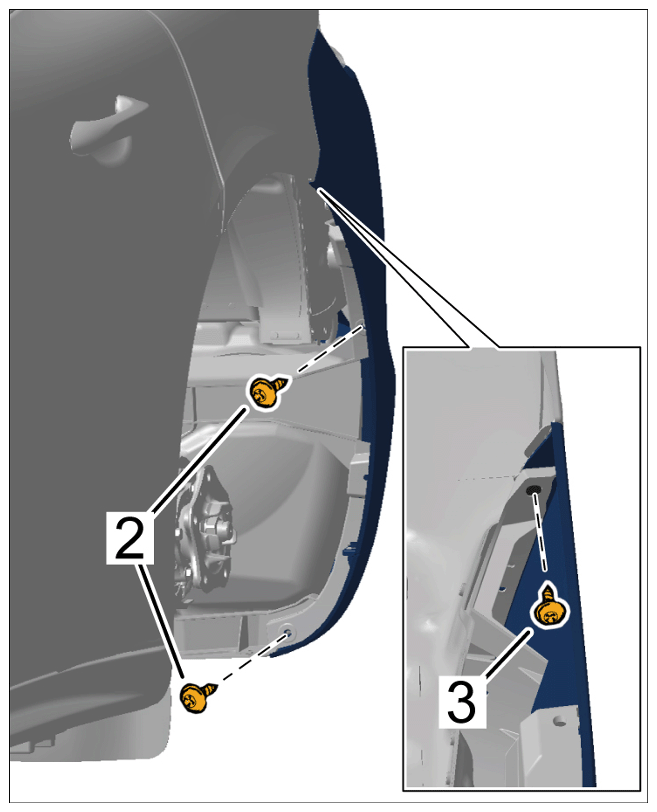

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear apron to retaining frame
Screw securing rear apron to side panel	Item 3 Self-locking screw, must always be replaced	Tightening torque	7 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear apron to side panel
Screw securing rear apron to frame for light	Item 7	Tightening torque	3 Nm

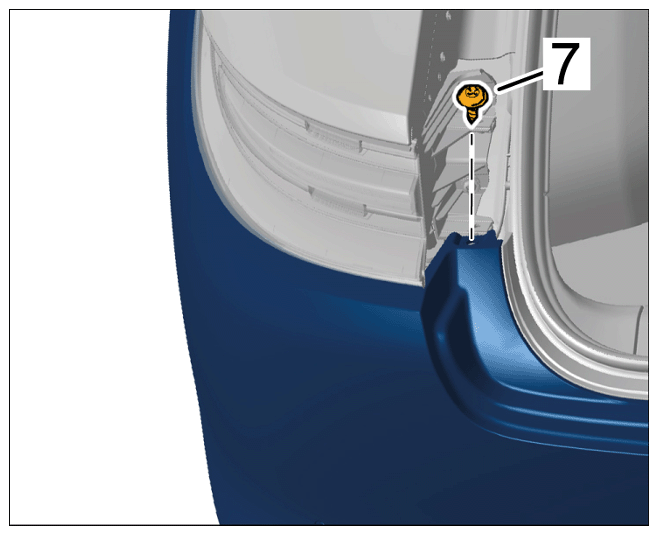

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear apron to frame for light
Screw securing rear skirt to rear apron	Item 1	Tightening torque	2.5 Nm

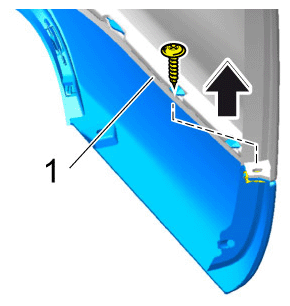

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear skirt to rear apron
Screws for number plate cover		Tightening torque	0.7 Nm

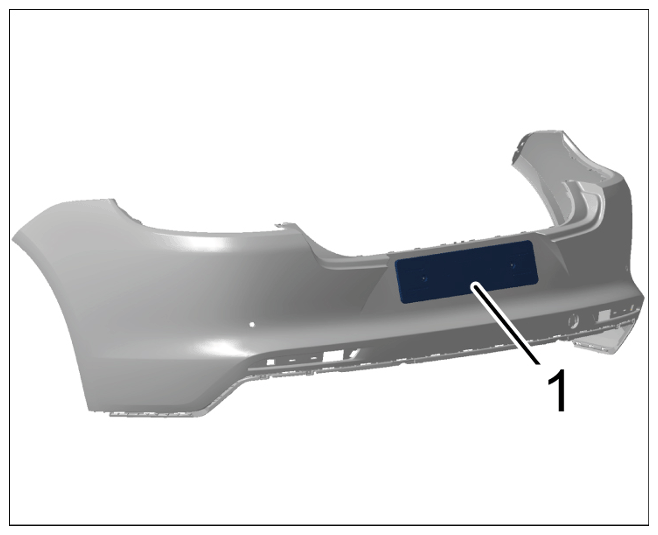

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for number plate trim
