Technical Values - Panoramic Roof

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance
Cap nut for panoramic roof	Item 1	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screwing off cap nut
Nut for panoramic roof	Item 1	Tightening torque	6 Nm (4.5 ftlb.)

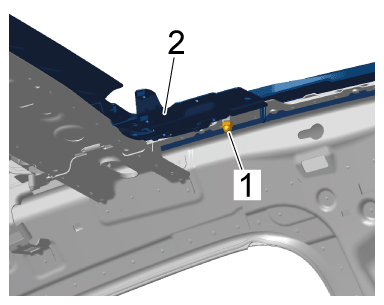

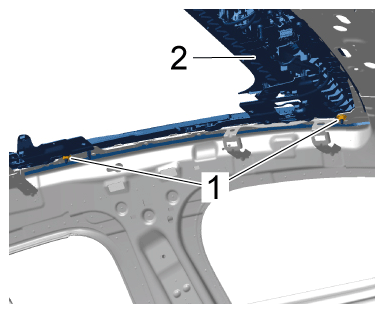

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing nuts
Screw on sliding-roof panel	Item 3	Tightening torque	5.5 Nm (4 ftlb.)	+/- 0.5 Nm (0.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on sliding-roof panel
Nut on sliding roof element	Item 1	Tightening torque	2.4 Nm (1.8 ftlb.)	+/- 0.1 Nm (0.07 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on sliding roof element
Screw on sliding roof element	Item 2	Tightening torque	2.5 Nm (1.8 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on sliding roof element

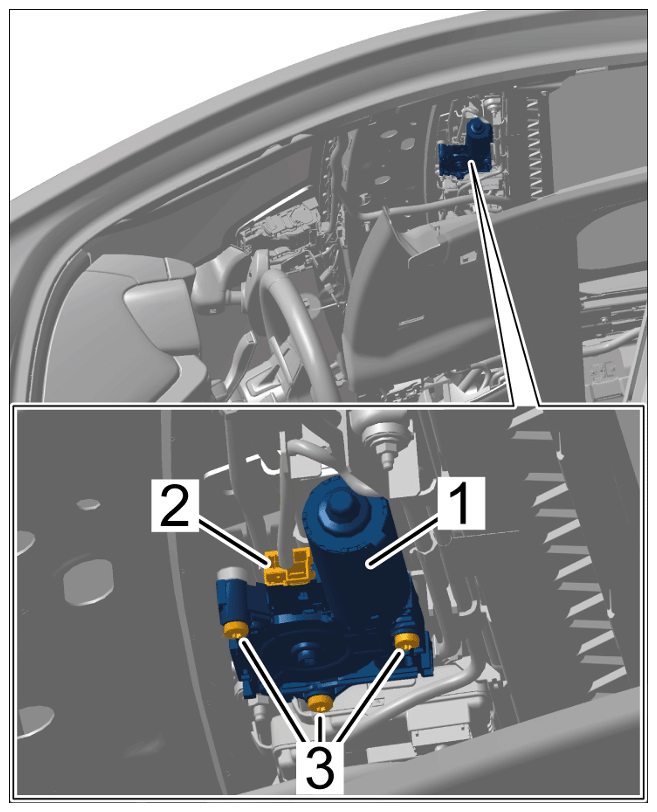

Screws for sun blind motor (front)	Item 3	Tightening torque	3 Nm (2 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)

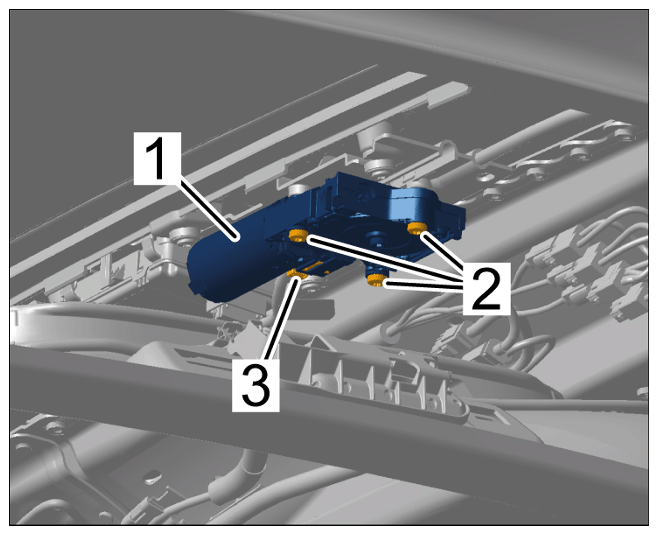

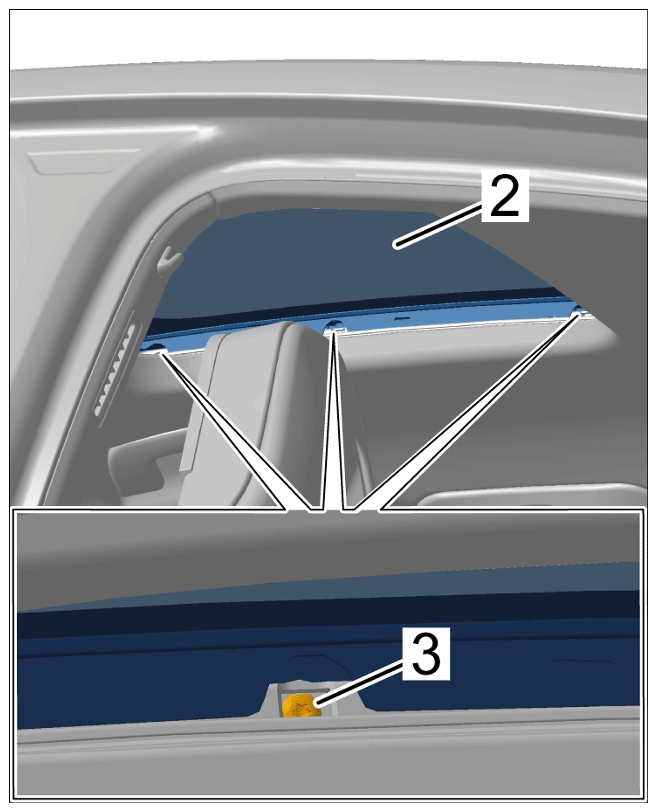

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for sun blind motor (front)
Screws for sun blind motor (rear)	Item 2	Tightening torque	3 Nm (2 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for sun blind motor (rear)
Screw securing front roof sun blind to guide rail on roof frame	Item 4	Tightening torque	2 Nm (1.5 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing sun blind to guide rail on roof frame

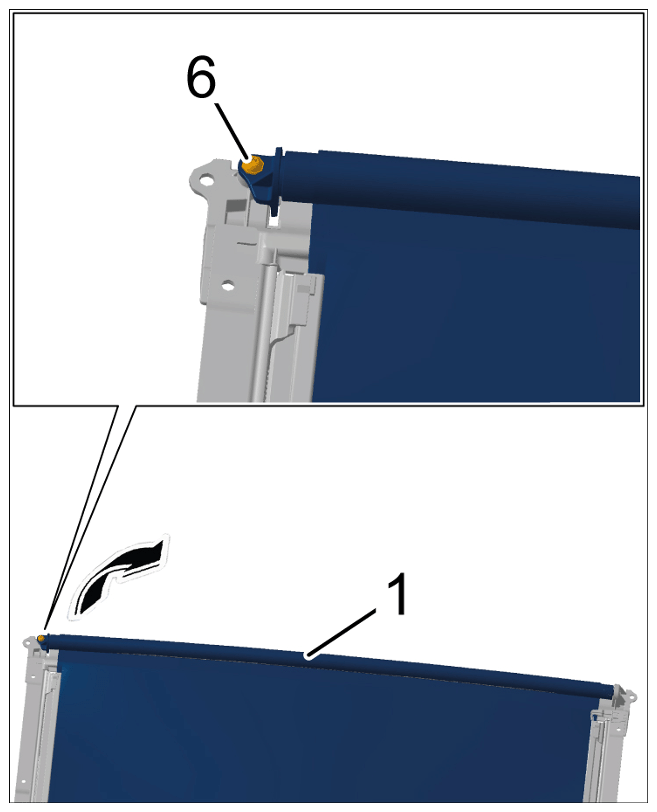

Screw securing rear roof sun blind to frame	Item 6	Tightening torque	2.5 Nm (1.8 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)

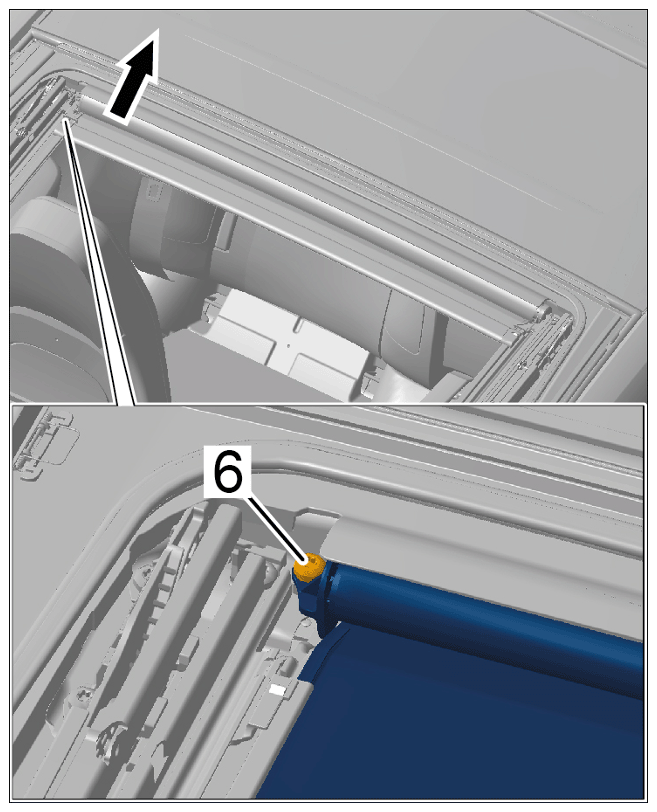

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear roof sun blind
Screw on motor for glass sliding roof	Item 2	Tightening torque	3 Nm (2 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)

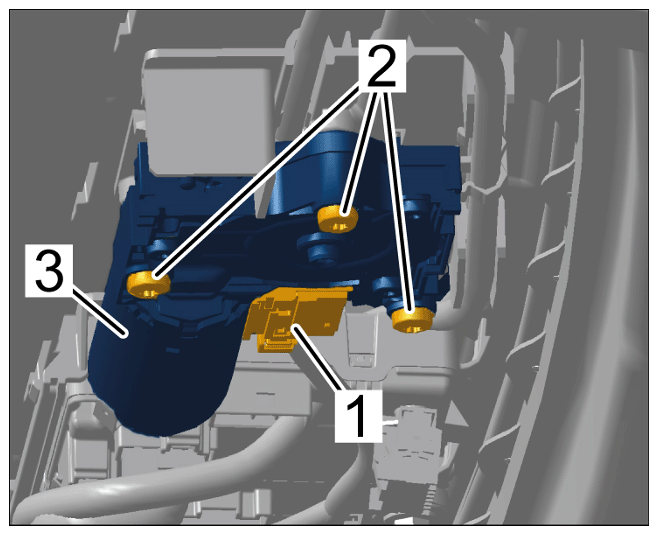

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for glass sliding roof
Nut securing rear panoramic roof glass panel to body	Item 2	Tightening torque	6 Nm (4.5 ftlb.)

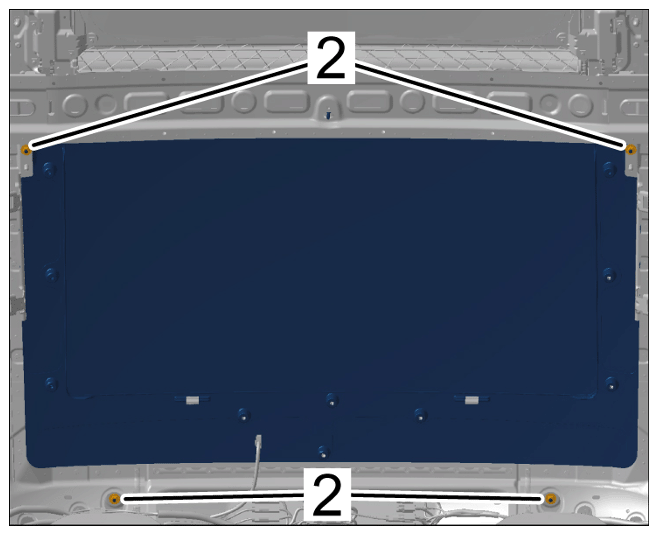

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing rear panoramic roof glass panel to body
Screws securing air deflector to panoramic roof	Item 2	Tightening torque	1.3 Nm (0.8 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)

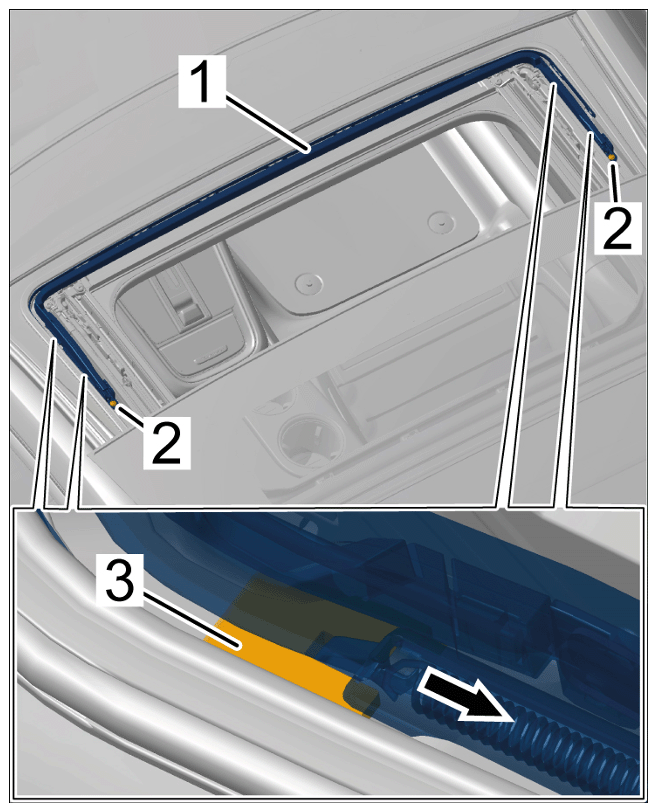

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing air deflector
Screws for rear roof sun blind mechanism	Item 1	Tightening torque	2 Nm (1.5 ftlb.)

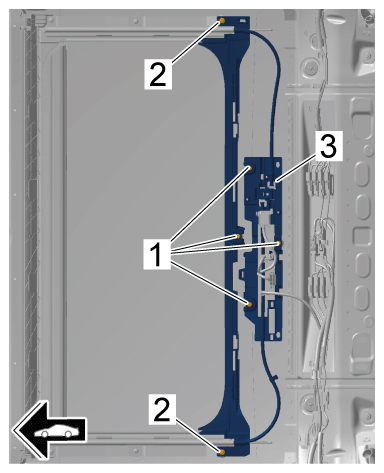

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear sun blind mechanism
Screws for bracket for rear roof sun blind motor	Item 1	Tightening torque	2.5 Nm (2 ftlb.)

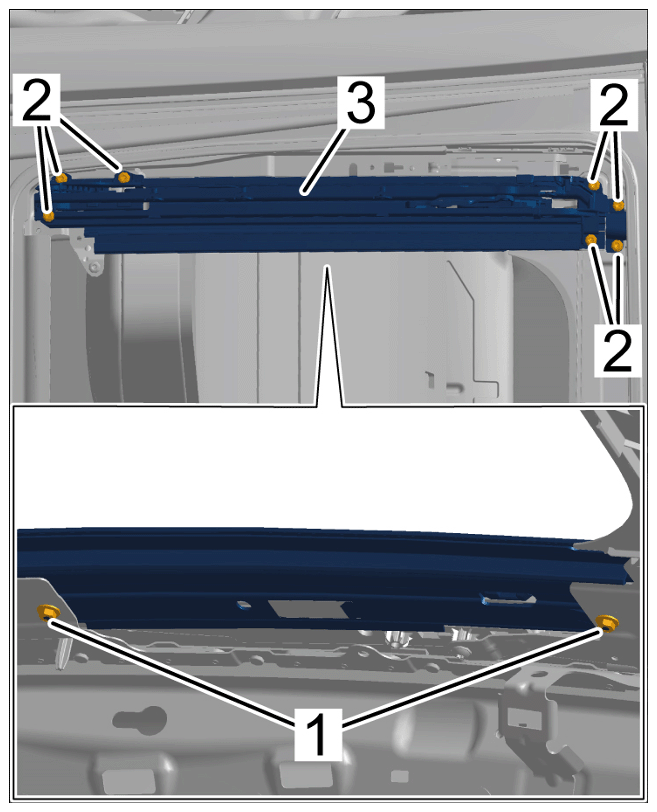

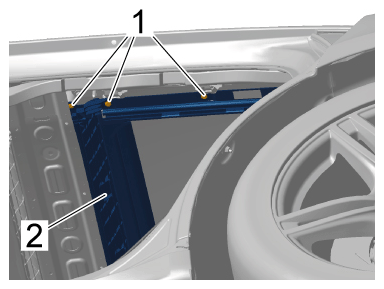

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for motor
Screws on mechanism for bracket for rear roof sun blind motor	Item 2	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for motor
