Technical Values - Occupant Protection

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance
Screws securing passenger airbag unit to cross member	Position 3, screws must be replaced	Tightening torque	9.7 Nm (7.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Airbag unit

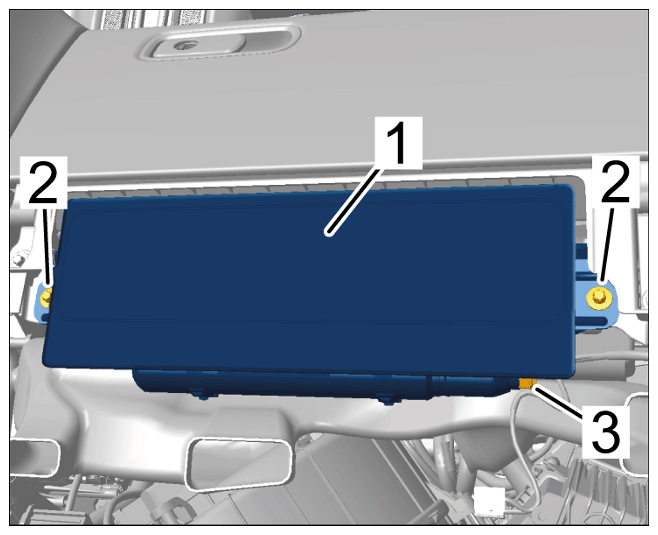

Screws securing knee airbag on driver's side to cross member	Item 2, screws must be replaced	Tightening torque	13 Nm (9.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for knee airbag

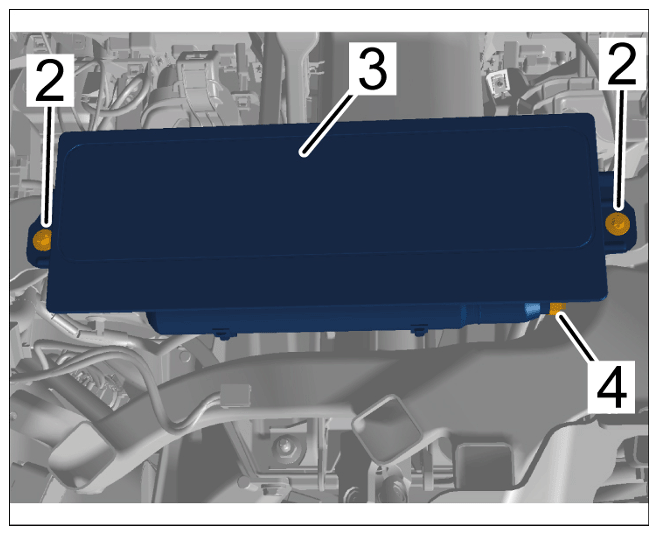

Screws securing knee airbag on passenger's side to cross member	item 2, screws must be replaced	Tightening torque	13 Nm (9.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Knee airbag
Front side airbag to seat frame	Item 4	Tightening torque	9.7 Nm (7.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing screw

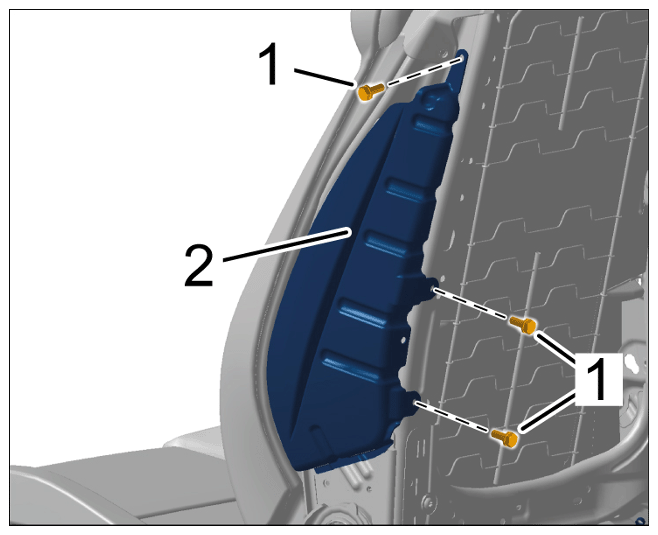

Screws securing trim panel over side airbag	Position 1	Tightening torque	5.6 Nm (4.1 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing trim panel over side airbag

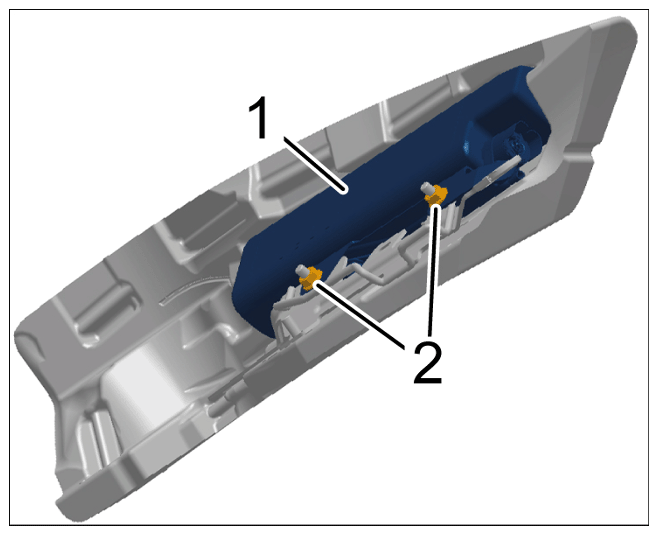

Nut on rear seat airbag	Item 2	Tightening torque	9.7 Nm (7.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear seat airbag

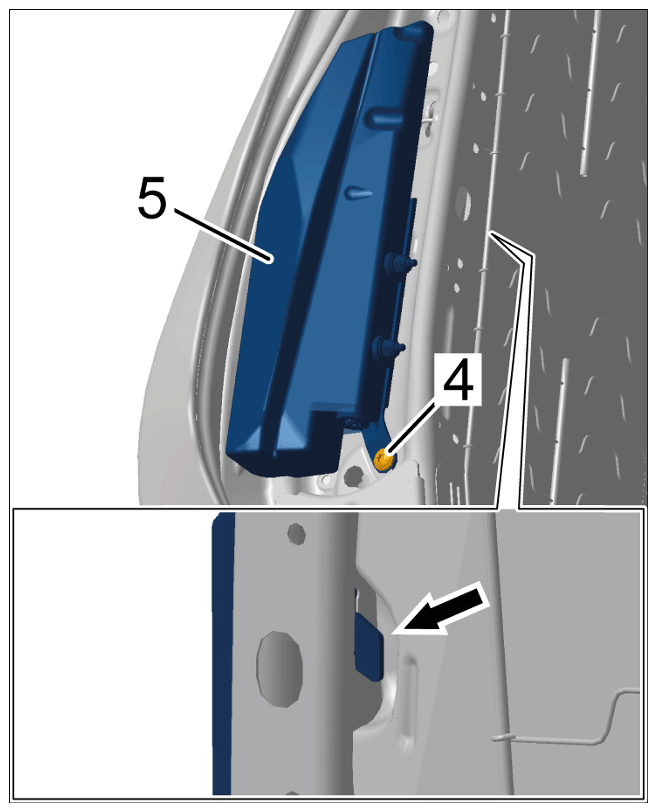

Screw securing head airbag to A-post	Position 4	Tightening torque	5.6 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing head airbag to A-post

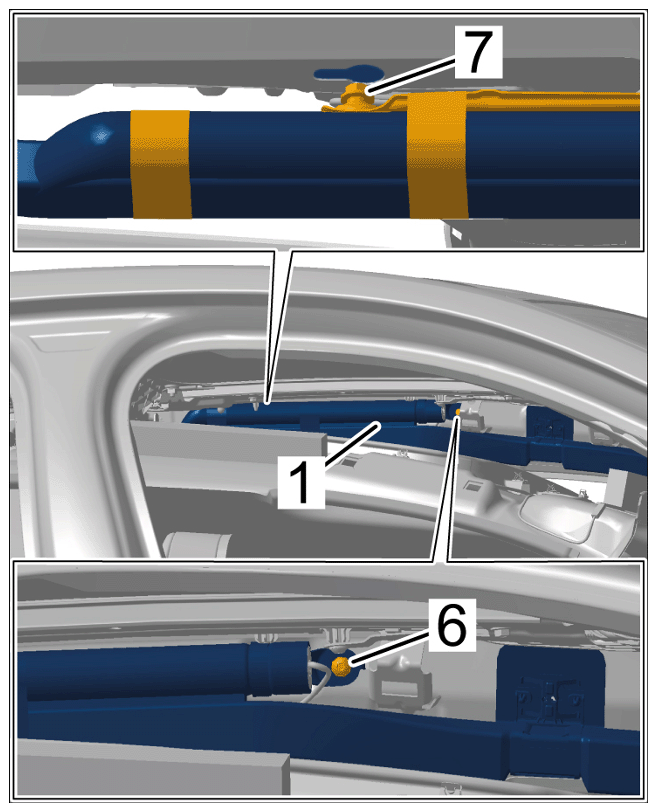

Screw securing head airbag to roof frame	Position 6	Tightening torque	5.6 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing head airbag to roof frame

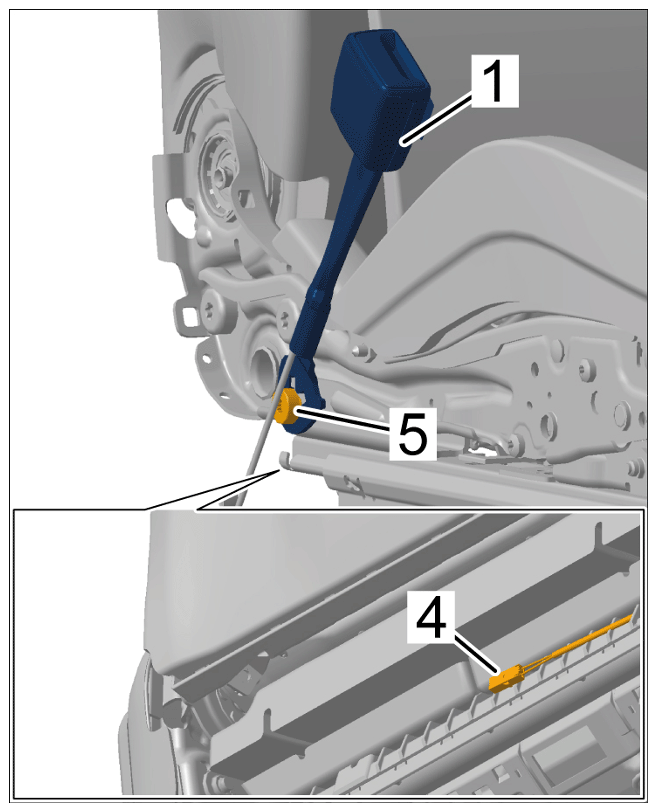

Screw securing front belt lock	Position 5	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front belt lock

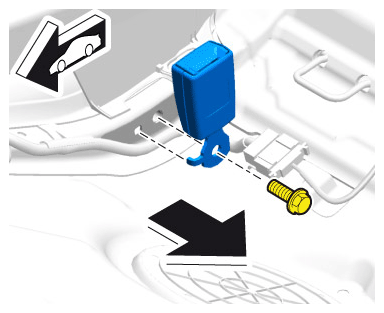

Screw securing centre and left rear belt lock		Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear belt lock
Screw securing right rear belt lock		Tightening torque	55 Nm (40.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear belt lock

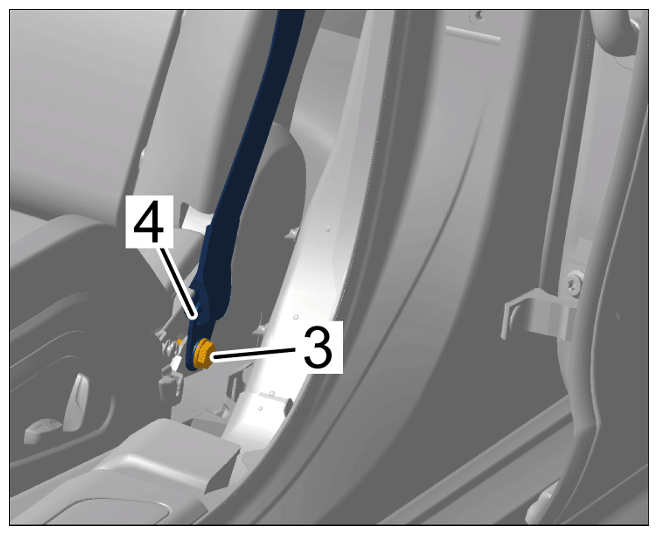

Screw securing seat belt mount to front seat	Position 3	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat belt mount

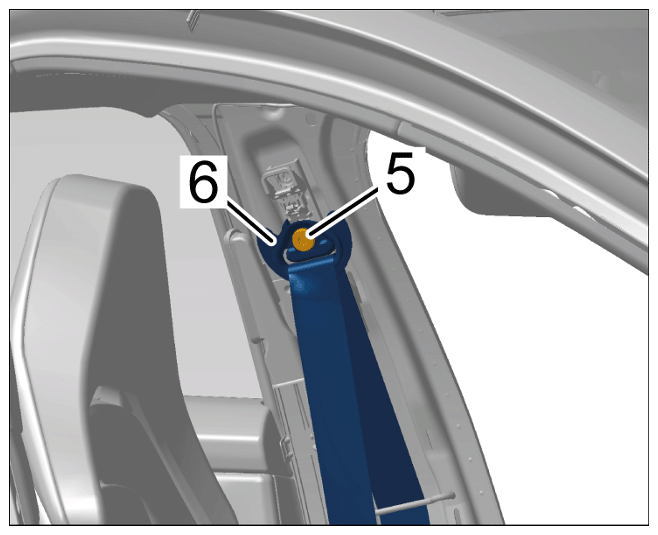

Screw securing belt deflector on B-pillar	Position 5	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt deflector

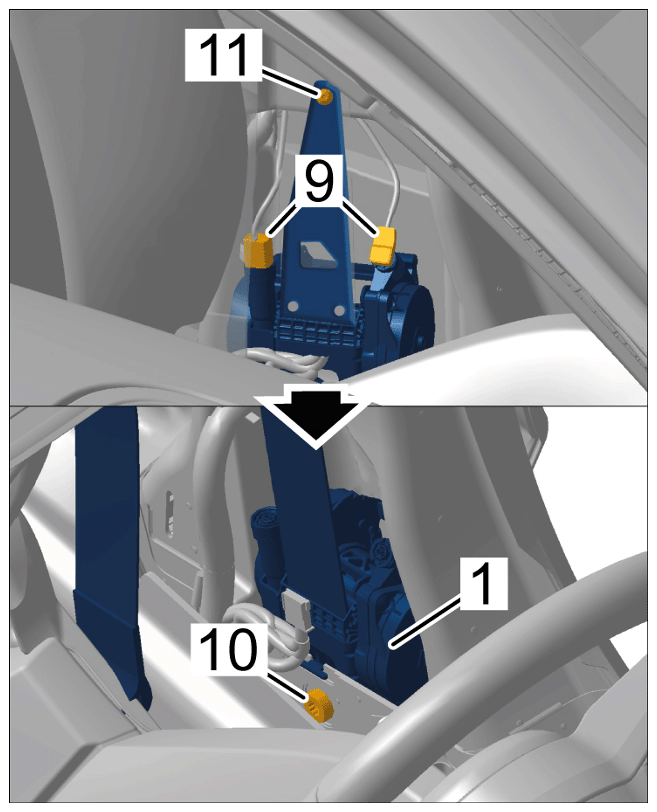

Upper screw on front automatic belt device	Item 11	Tightening torque	5.6 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt reel
Lower screw on front automatic belt device	Item 10	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt reel

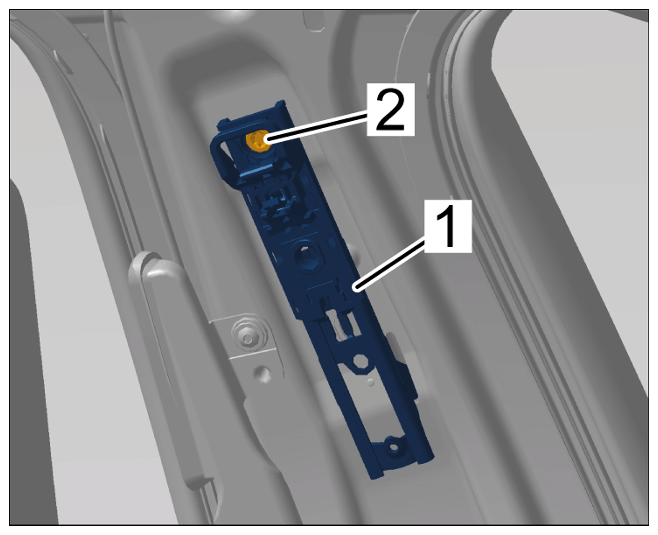

Screw securing seat belt height adjuster	Position 2	Tightening torque	33 Nm (24.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjustment fitting

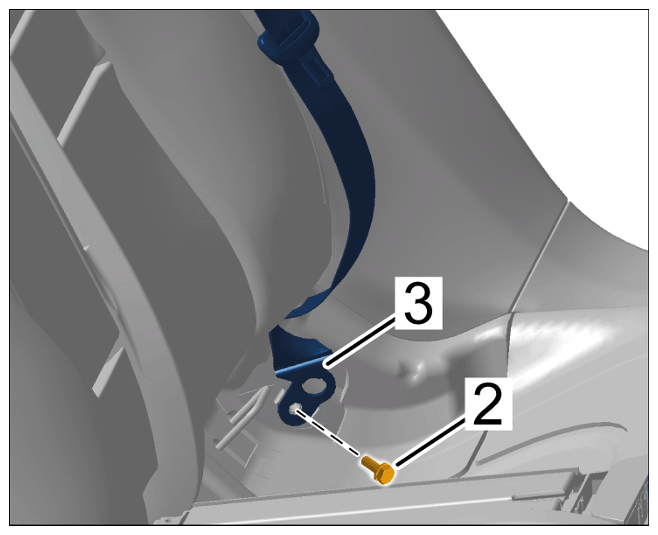

Screw securing rear seat belt mount	Position 2	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear seat belt mount

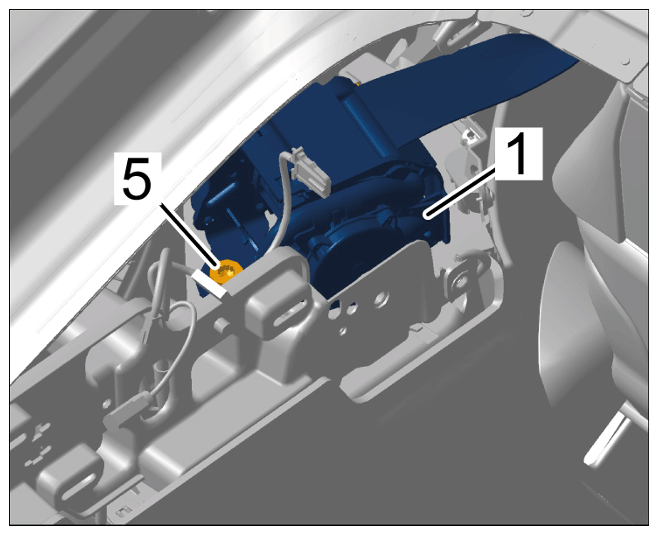

Screw securing rear automatic belt device	Position 5	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear belt reel

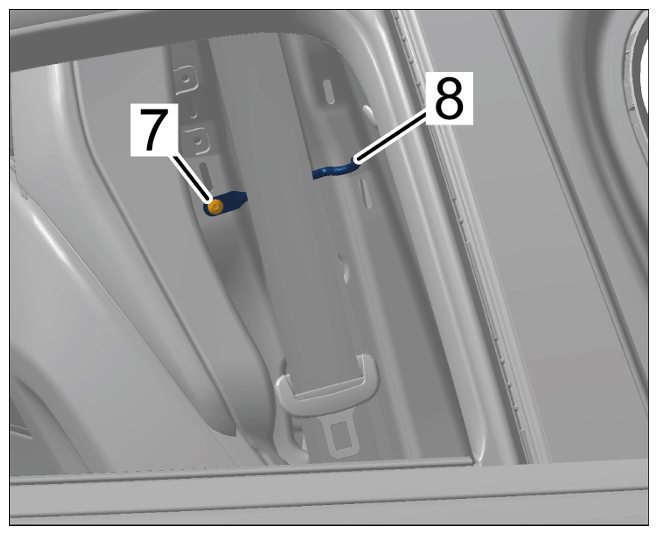

Screw securing retaining bar to B-pillar	Position 7	Tightening torque	5.6 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing retaining bar to B-pillar

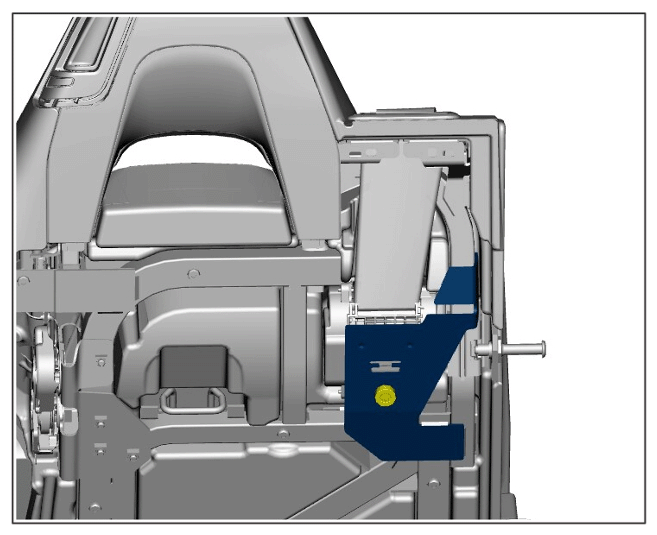

Screw securing cover for three-point belt, rear at the centre to seat backrest		Tightening torque	9.5 Nm (7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing cover for three-point belt, rear at the centre
Screw securing three-point belt, rear centre to seat backrest	Screw must be replaced	Tightening torque	50 Nm (36.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing three-point belt, rear centre to left rear seat backrest
