Technical Values - Interior Equipment

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance

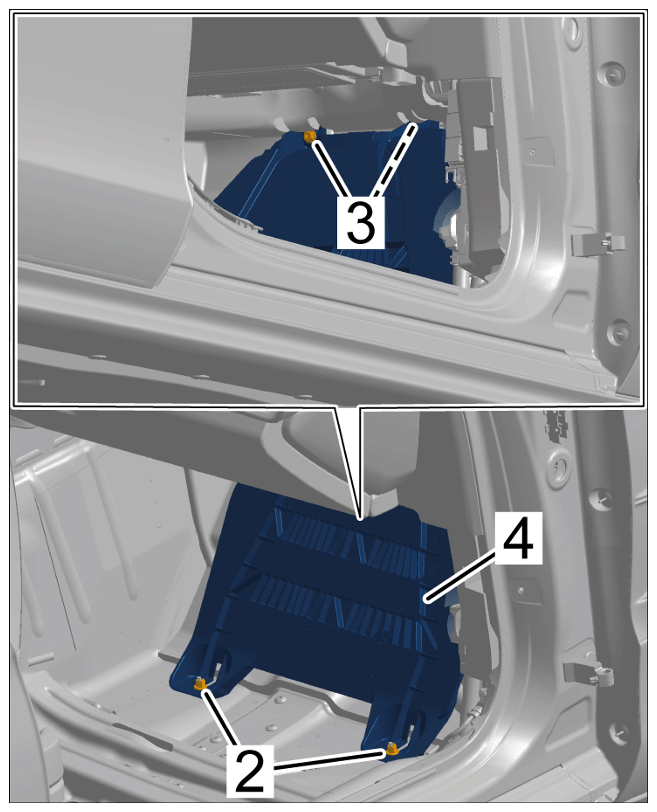

Screw for floor plate	Item 3	Tightening torque	8 Nm (6 ftlb.)	+/- 0.5 Nm (0.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for floor plate
Nut for floor plate	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)	+/- 0.25 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut for floor plate

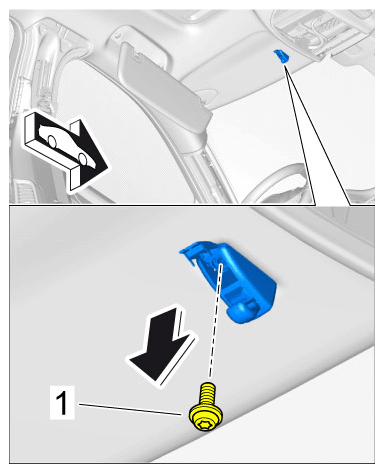

Screw for sun visor bearing	Item 1	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for sun visor bearing
