Technical Values - Front Apron

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screw securing front apron to wing	Item 1	Tightening torque	2.8 Nm (2 ftlb.) (2.1 ftlb.)

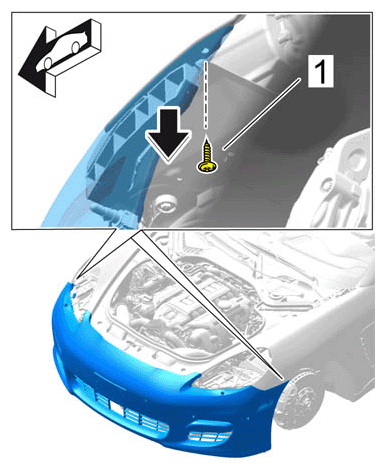

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing screw on fender
Screw securing front bumper to mounting bracket	Item 3	Tightening torque	5.5 Nm (4.1 ftlb.)

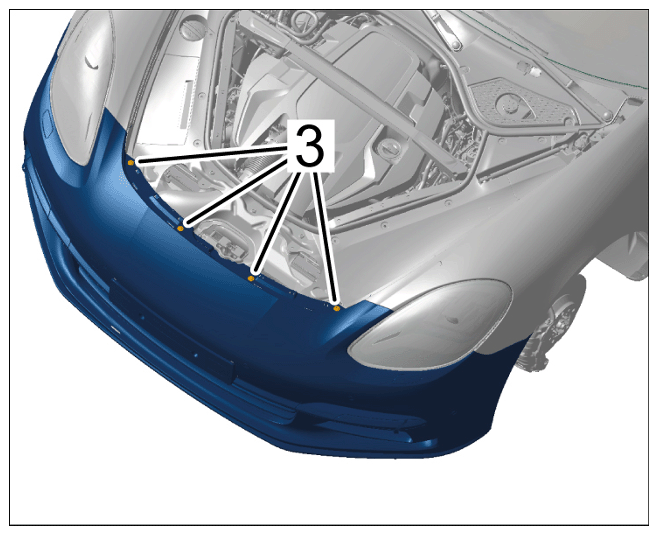

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing screw on fender
Screws for number plate trim ECE/USA	Item 2	Tightening torque	2.5 Nm (1.8 ftlb.) (1.8 ftlb.)

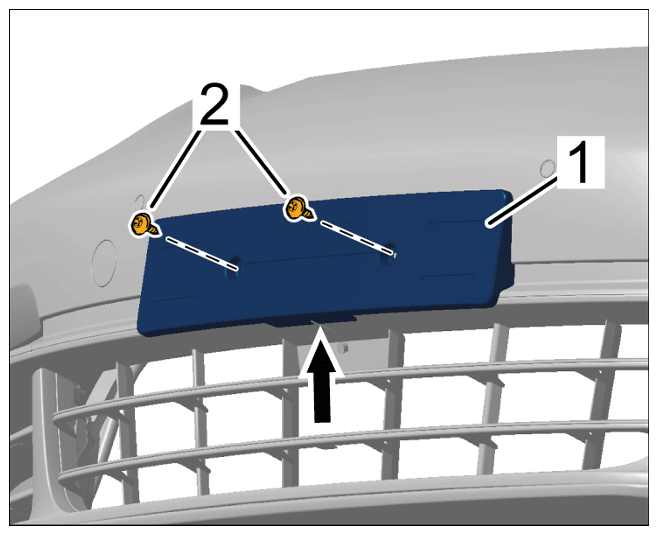

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for number plate cover, ECE/USA
Screw securing frame to front bumper	Item 2	Tightening torque	2.5 Nm (1.8 ftlb.) (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening frame
Screws for number plate trim Japan/China		Tightening torque	0.6 Nm (0.44 ftlb.) (0.4 ftlb.)
