Technical Values - Centre Console

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance

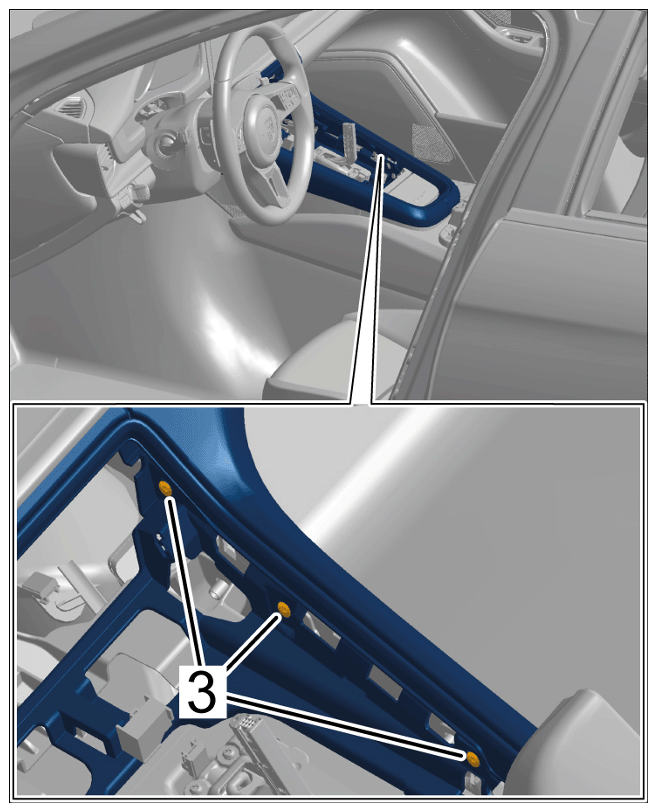

Screws for centre console oddments tray	Item 3	Tightening torque	8 Nm (6 ftlb.)	+/- 0.5 %

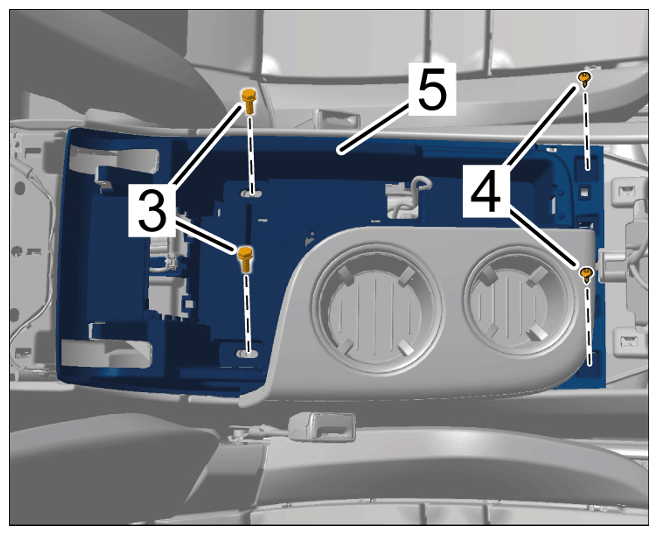

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for oddments tray
Screw for upper part of front centre console	Item 3	Tightening torque	1.5 Nm (1 ftlb.)

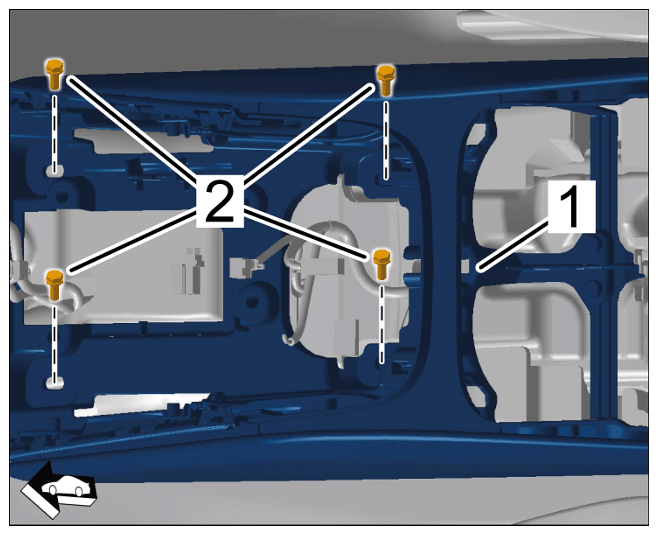

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for upper part of front centre console
Screw for centre console	Item 2	Tightening torque	8 Nm (6 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)

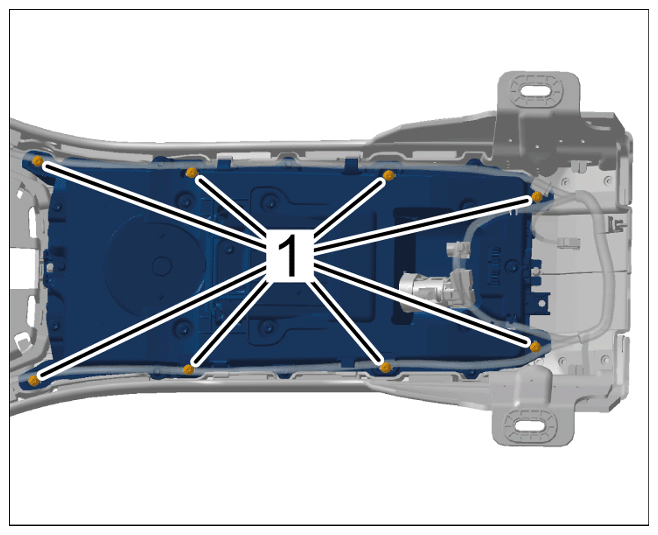

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Centre console screw
Screw for telephone bracket	Item 3	Tightening torque	1.5 Nm (1 ftlb.)

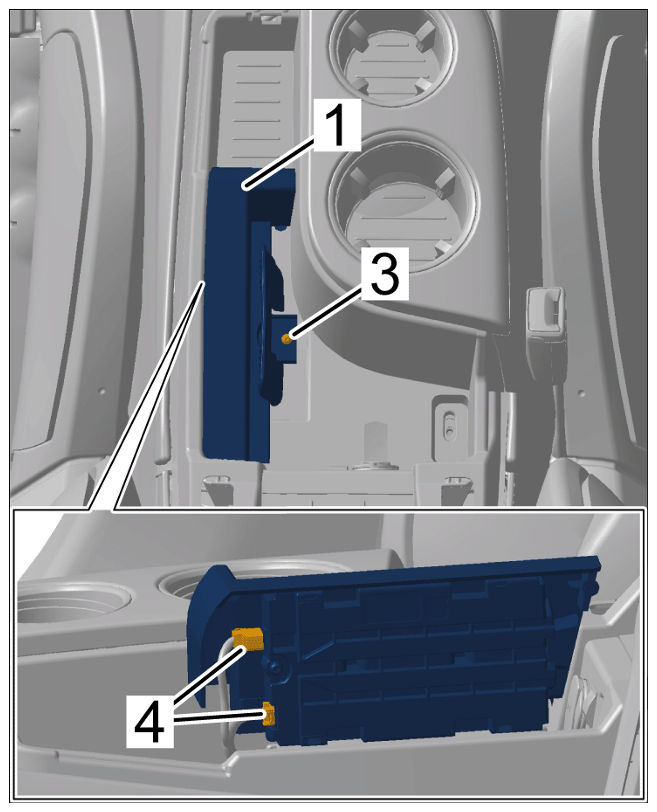

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for telephone bracket
Screws securing centre console holder to centre console	Item 1	Tightening torque	8 Nm (6 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)

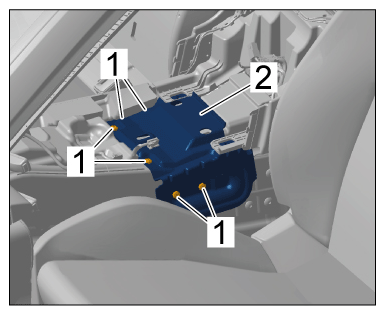

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing centre console holder to centre console
Screws for front cupholder	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cupholder
Screws for front ashtray/tray	Item 2	Tightening torque	1.5 Nm (1 ftlb.)

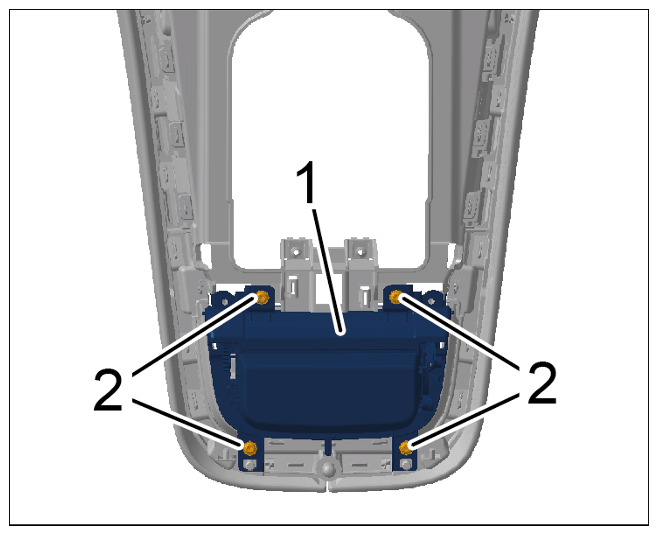

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front ashtray/tray
Screw securing cupholder to rear centre console	Item 1	Tightening torque	1.2 Nm (0.8 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)

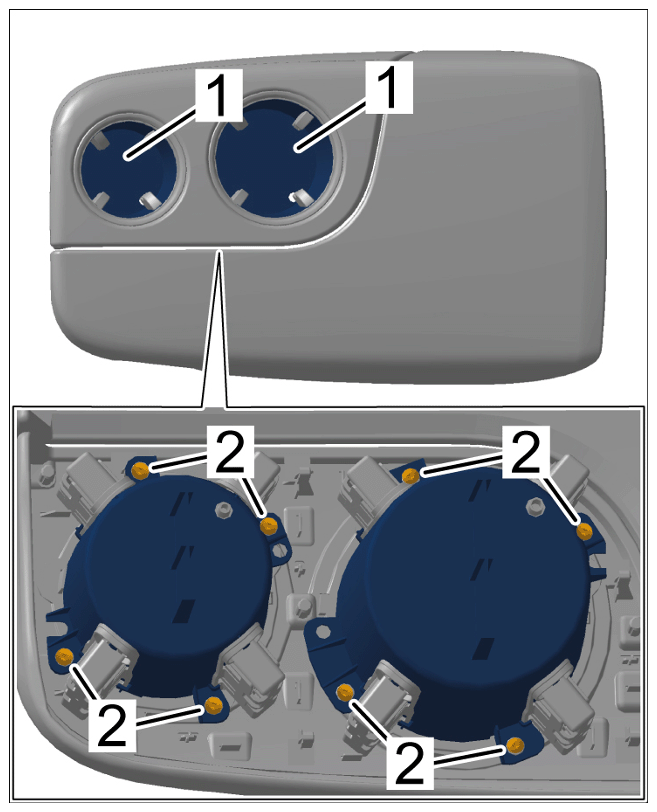

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing cupholder to rear centre console
Screws for rear centre console (Business)	Item 1	Tightening torque	12 Nm (9 ftlb.)	+/- 0.5 Nm (0.35 ftlb.)

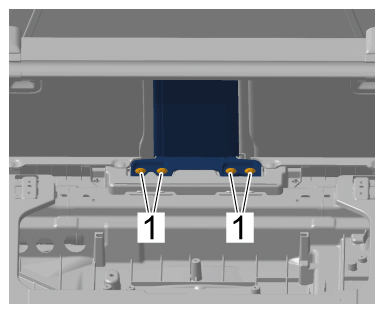

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear centre console (Business)
