Technical Values - Bumpers/Lock Carrier

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance

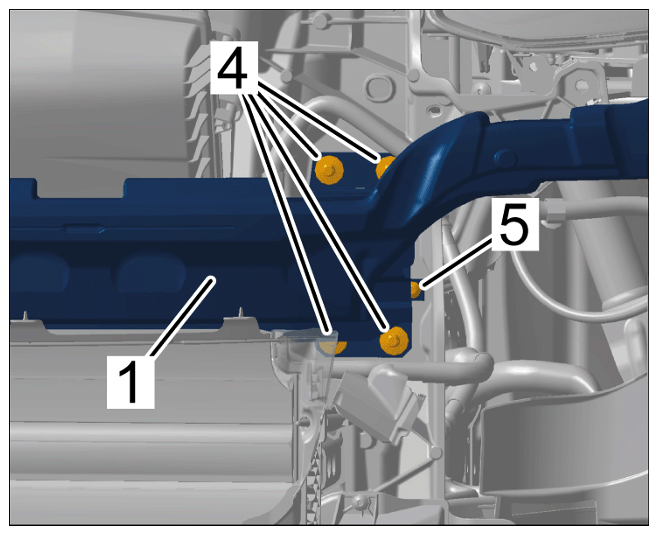

Screw for front bumper	Item 4	Tightening torque	50 Nm (37 ftlb.)	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front bumper
Screw for front bumper	Item 5	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front bumper

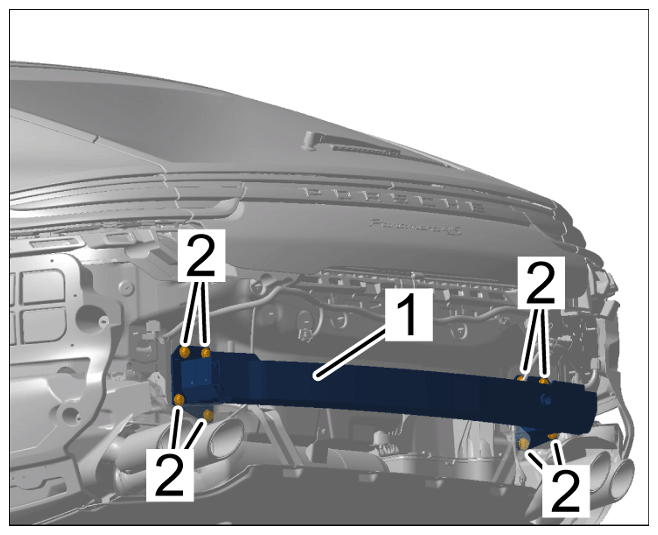

Screw for rear bumper	Item 2	Initial tightening	20 Nm (15 ftlb.)
Screw for rear bumper	Item 2	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for rear bumper

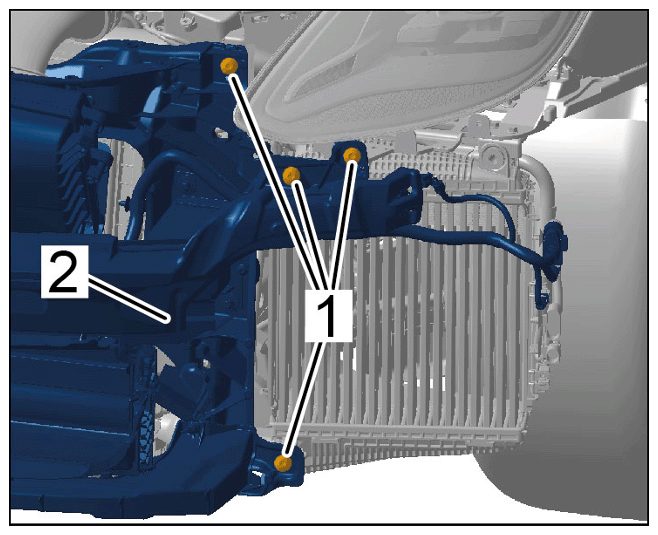

Screw for lock carrier	Item 1	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for lock carrier

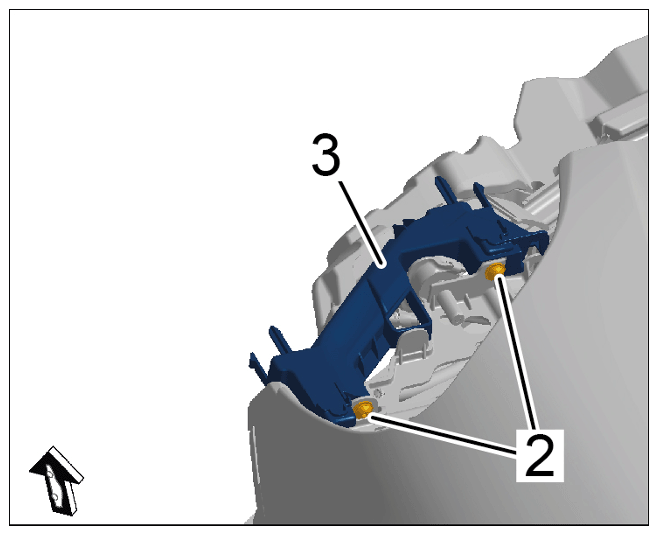

Screws for headlight mounting point	Item 2	Tightening torque	5.5 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for headlight mounting point
