Technical Values - Air Intake Grille

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

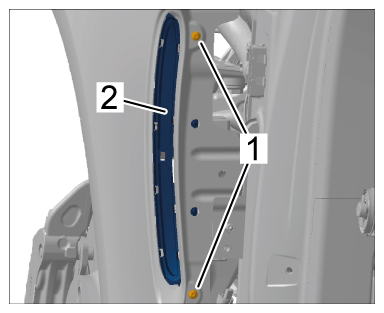

Screw on side air intake grille	Item 2	Tightening torque	2.8 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on side air intake grille

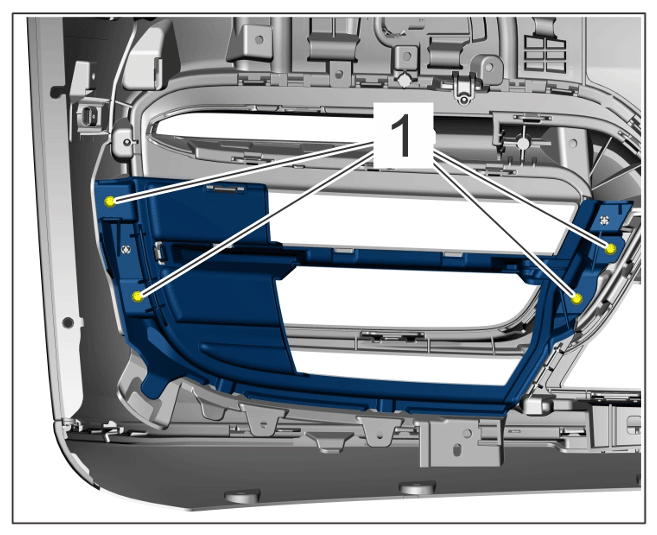

Screws securing air grille to front apron	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing air grille to front apron

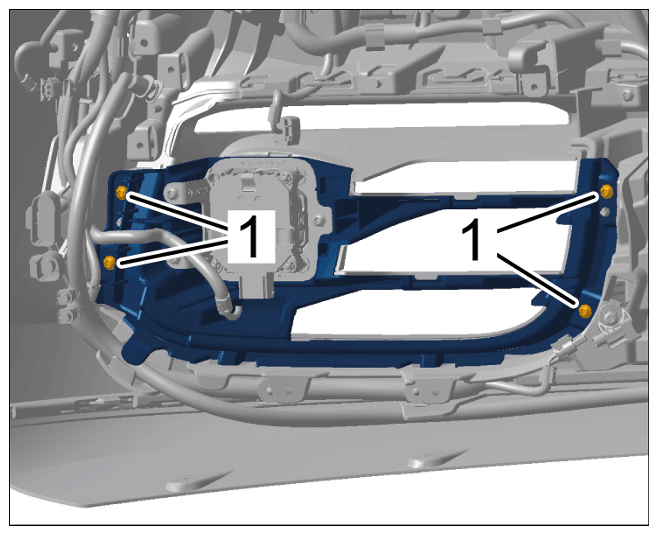

Screws for air grille	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover

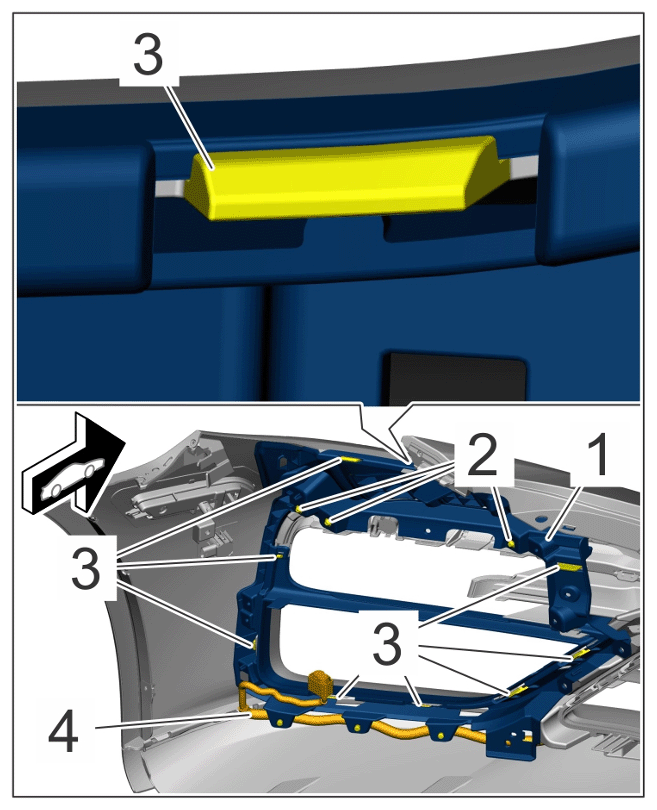

Front air grille (retaining frame)	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front air grille (retaining frame)
