Sun Blind
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

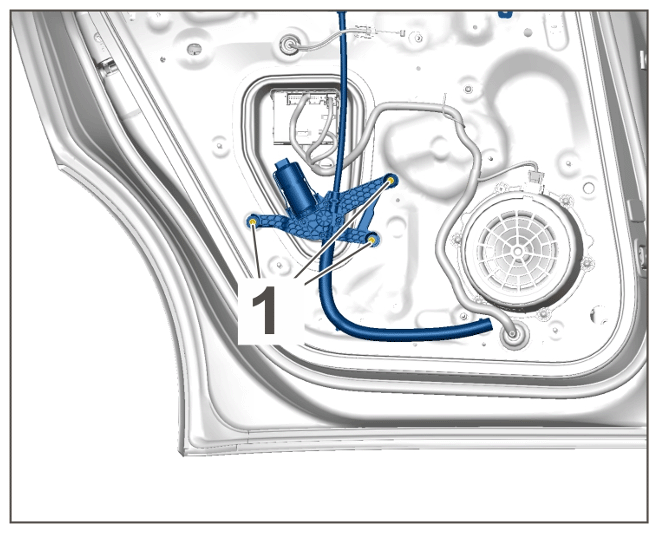

| Sun blind motor bracket to door bodyshell |
Item 1 |
Tightening torque |
3.5 Nm (2.5 ftlb.) |
+/- 0.5 Nm (0.3 ftlb.) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |

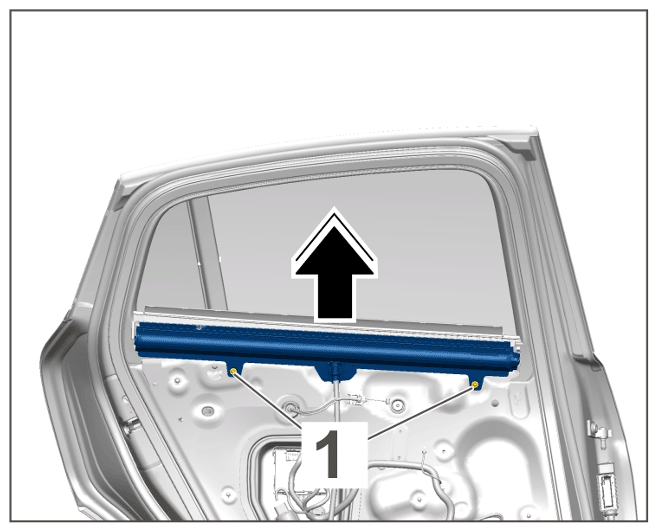

| Sun blind to door bodyshell |
Item 1 |
Tightening torque |
3.5 Nm (2.5 ftlb.) |
+/- 0.5 Nm (0.3 ftlb.) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing sun blind |
