Rear-View Mirror

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance

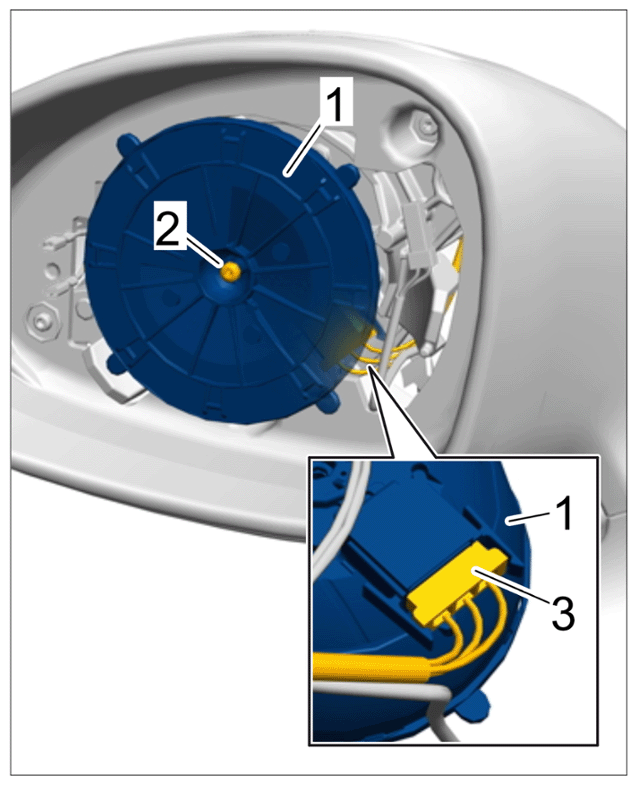

Mirror adjusting motor	Item 2	Tightening torque	1 Nm (0.5 ftlb.)	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mirror adjusting motor

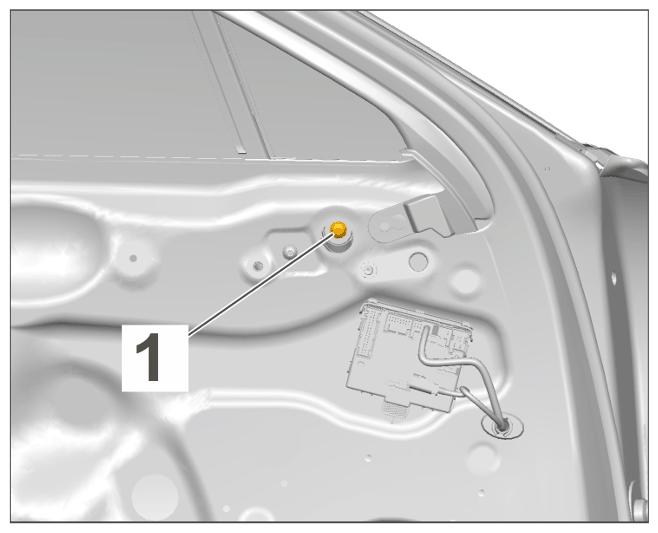

Rear-view mirror to bare door shell	Item 1	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

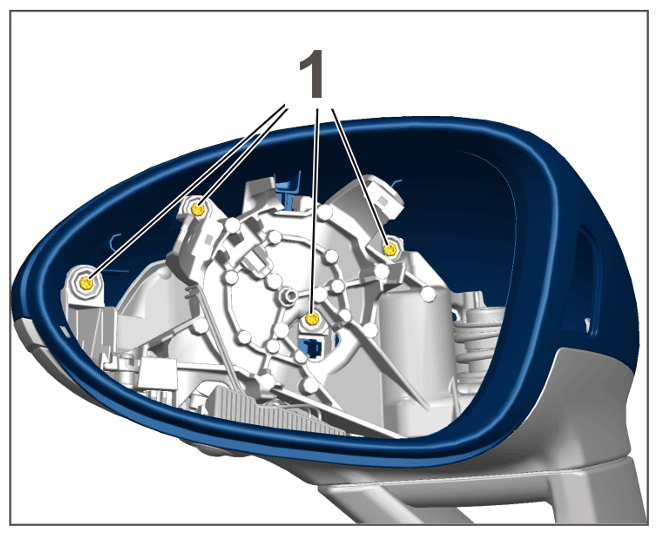

Rear-view mirror housing (upper part)	Item 1	Tightening torque	0.55 Nm (0.4 ftlb.)	+/- 0.25 Nm (0.15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Trim panel for mirror base	Item 1	Tightening torque	0.55 Nm (0.4 ftlb.)	+/- 0.25 Nm (0.15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

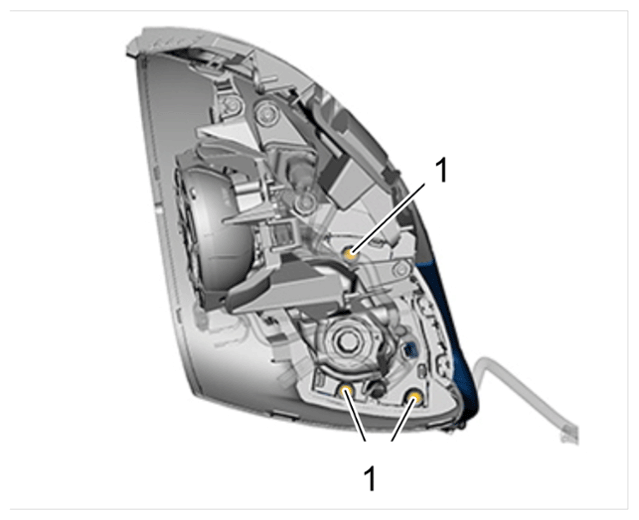

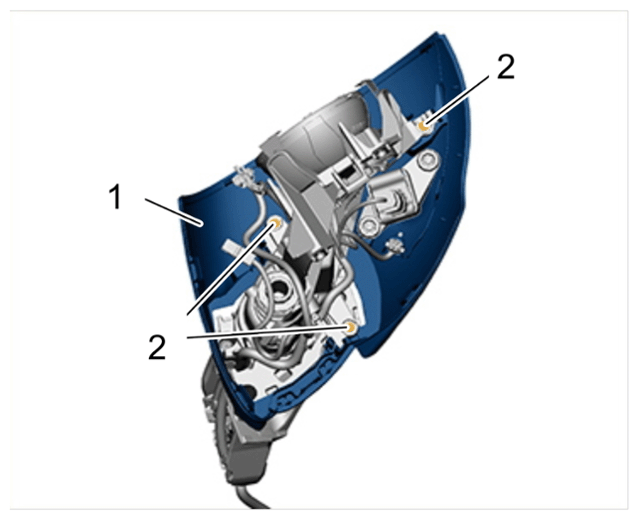

Rear-view mirror housing (lower part)	Item 2	Tightening torque	0.55 Nm (0.4 ftlb.)	+/- 0.25 Nm (0.15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
