Pedestrian Protection

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

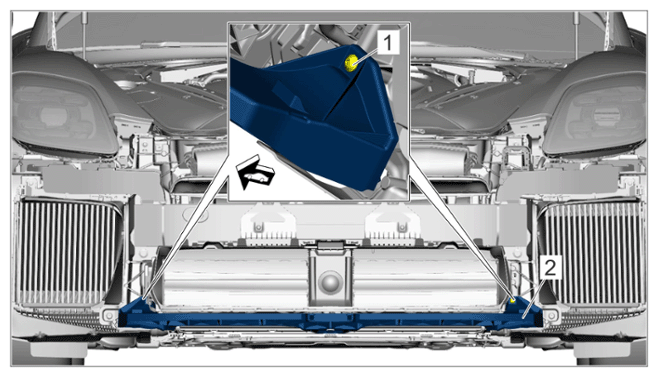

Screw securing pedestrian protection to front module	Item 1	Tightening torque	9.7 Nm (7.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

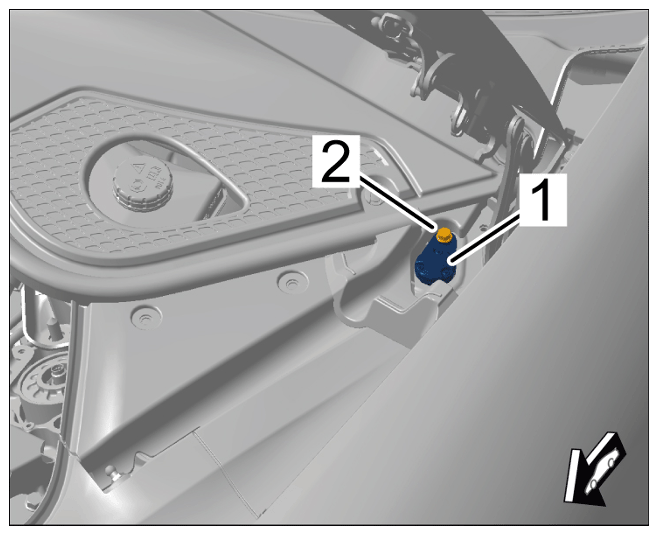

Screw securing ignition module to body	Item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for ignition module

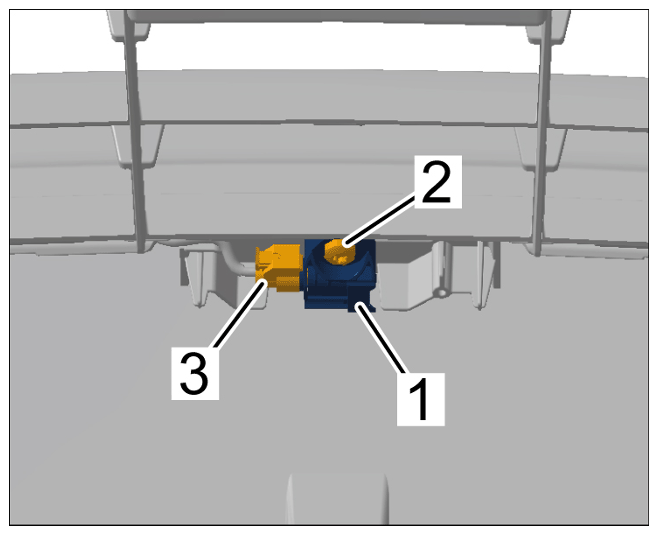

Screw securing pedestrian-protect. sensor to front bumper	Item 2	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing pedestrian-protect. sensor to front bumper
