Front Corner Window Pane
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |
| Fastening screw for front corner window pane, outer |
Item 1 |
Tightening torque |
4.5 Nm (3.3 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

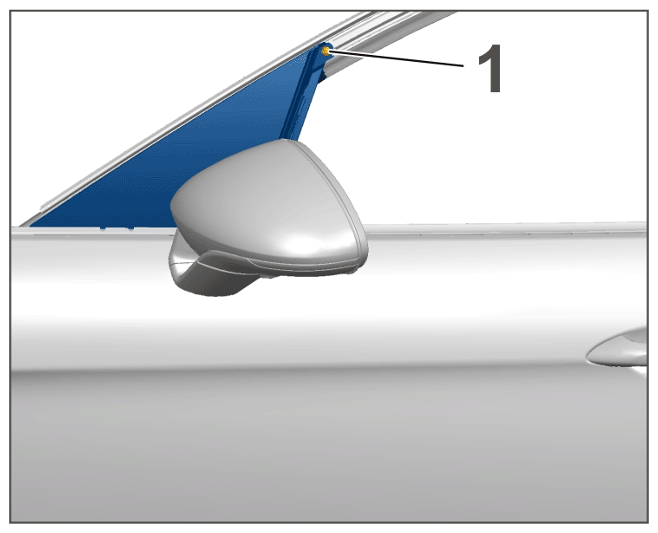

Outer fastening screw |
| Fastening screws for front corner window pane, inner |
Item 1 |
Tightening torque |
4.5 Nm (3.3 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

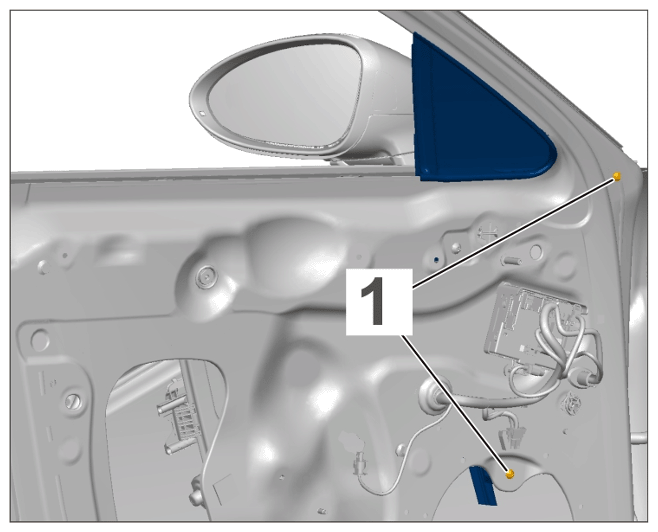

Inner fastening screws |
