Cutting Force For Removing Glass With Cutting Thread

Information

• The force required for separating the glass is lower when the cutting thread is deflected to its maximum point. An angle greater than 90° should be avoided.

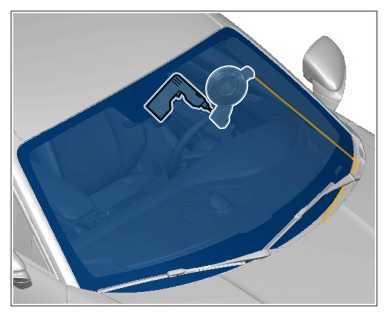

Unfavourable angle (strong pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High pulling force

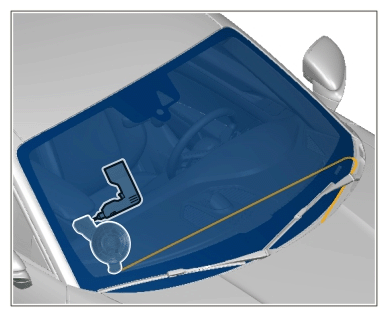

Favourable angle (average pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Average pulling force

Optimum angle (minimum pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low pulling force
