Tools And Materials
WARNING: This page is about a different variant/trim than selected.
The following tools and materials are required for removing and installing the rear window with 2-component adhesive:

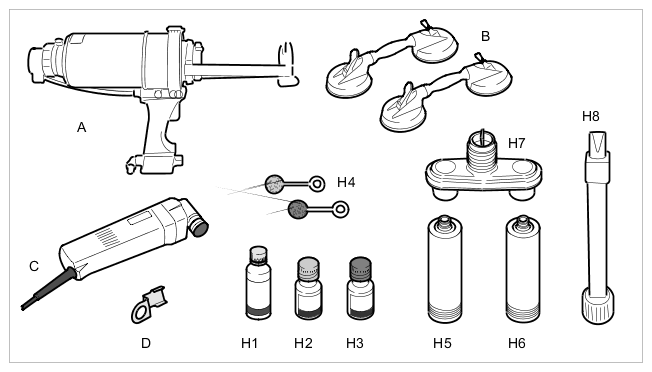

Tools and materials for removing and installing rear window
| A | Double cartridge gun > VAS 5237 - Double cartridge gun ; see Workshop Equipment Information, Chapter 3.5 |
| B | Suction cups VAG 1344; see Workshop Equipment Information, Chapter 3.5 |
| C | Special electric cutter (fine) > V.A.G 1561B - Electric cutter ; see Workshop Equipment Information, Chapter 3.5 |
| D | Flashing knife, U-shaped 639.031.130.22; see Parts Information, Main Article 8 |
| H | 2-component window bonding agent 000.043.300.94, contains set components H1 - H8; see Parts Information, Main Article 8 |
| H1 | Cleaning solution |
| H2 | Primer |
| H3 | Activator |
| H4 | Swab |
| H5 | Cartridge, component A |
| H6 | Cartridge, component B |
| H7 | Mixing nozzle |
| H8 | Processing nozzle |

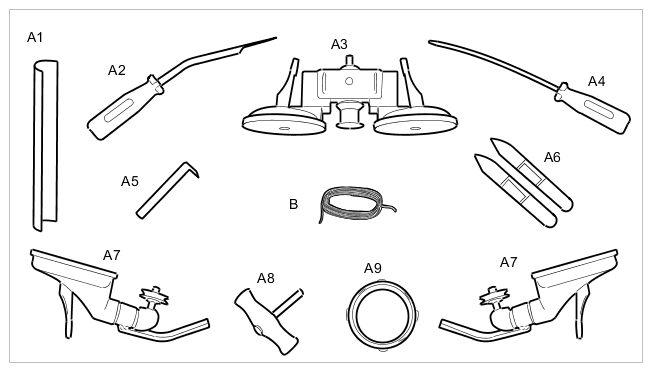

| A | Glass removal kit > V.A.G 1474B - Removal kit for flush bonded windows , contains set components A1 - A9; see Workshop Equipment Information, Chapter 3.5 |
| B | Cutting thread; see Parts Information, Main Article 8 |
| A1 | Guide rail |
| A2 | Cutting tool (wire holder) |
| A3 | Spooling device |
| A4 | Awl |
| A5 | Guide rail |
| A6 | Filler |
| A7 | Steering roller with arm bracket |
| A8 | Handle |
| A9 | Square cutting wire |
