Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...

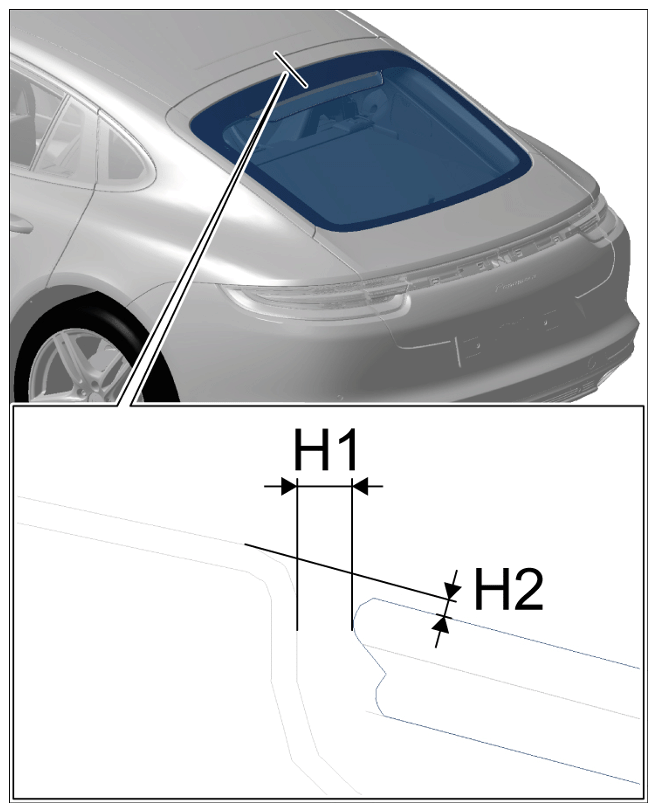

Rear window to rear lid (H1)		Gap dimension	2.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid
Rear window to rear lid (H2)	Offset	Gap dimension	- 1 mm	+ 0.8	mm - 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid

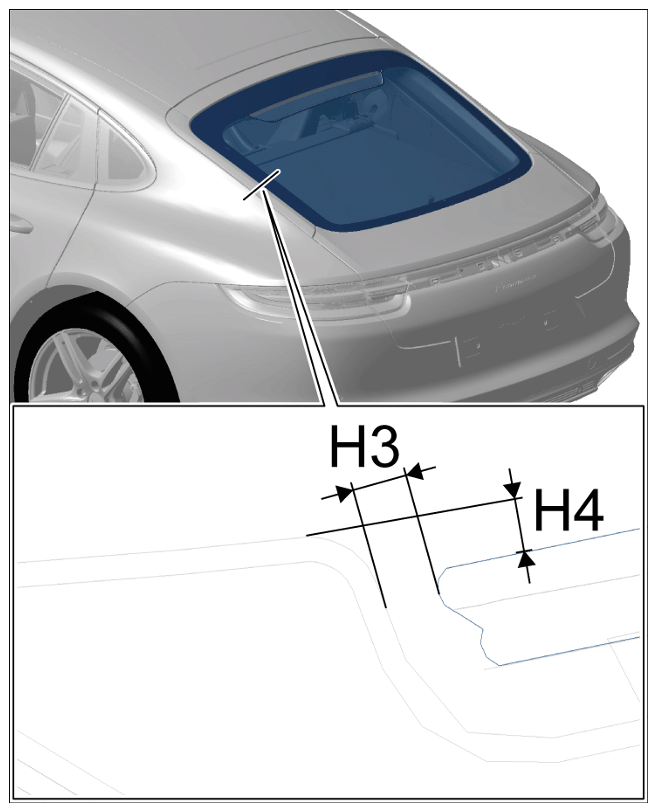

Rear window to rear lid (H3)		Gap dimension	2.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid
Rear window to rear lid (H4)	Offset	Gap dimension	- 2.1 mm	+ 0.8 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear lid

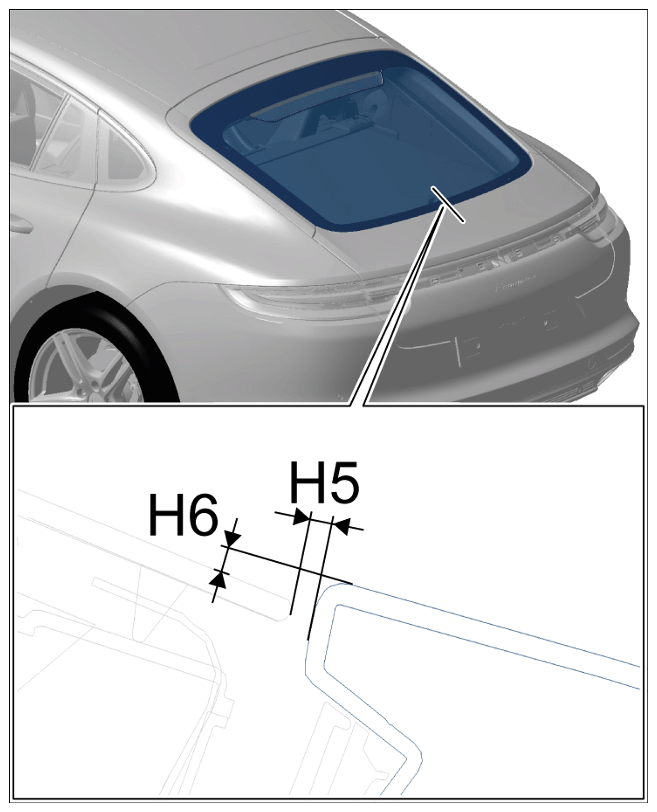

Rear window to rear spoiler (H5)		Gap dimension	3.5 mm	+ 1.5 mm	- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear spoiler
Rear spoiler to rear window (H6)	Offset	Gap dimension	- 2.5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear window to rear spoiler
Cutting wire, total length	Approx. 6 turns of the reel	Length	6 m
