Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

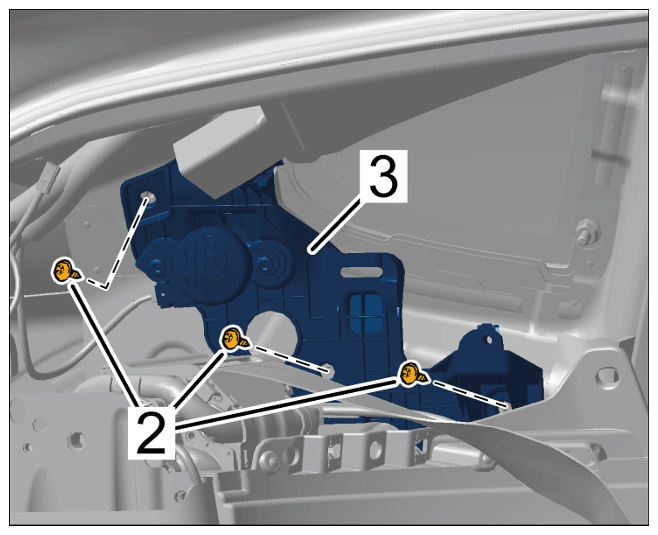

| Screws for belt collar holder on D-pillar |
Item 2 |
Tightening torque |
5.6 Nm (4 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws for belt collar holder on D-pillar |

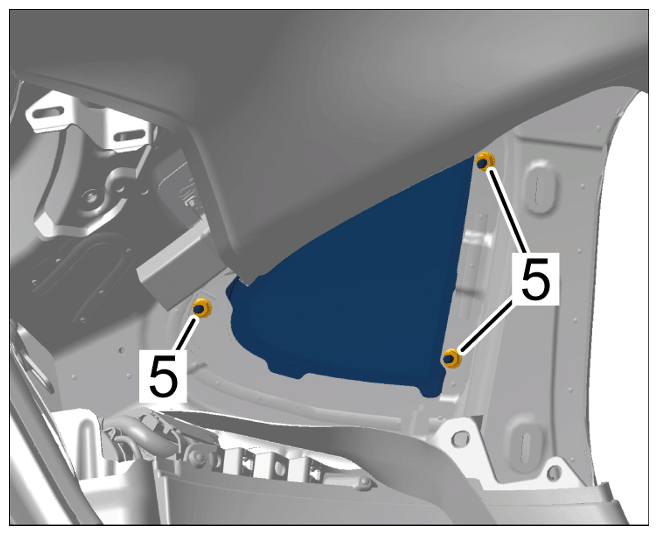

| Nut securing rear side window to body |
Item 5 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nut securing rear side window to body |
