Subsequent Work
WARNING: This page is about a different variant/trim than selected.

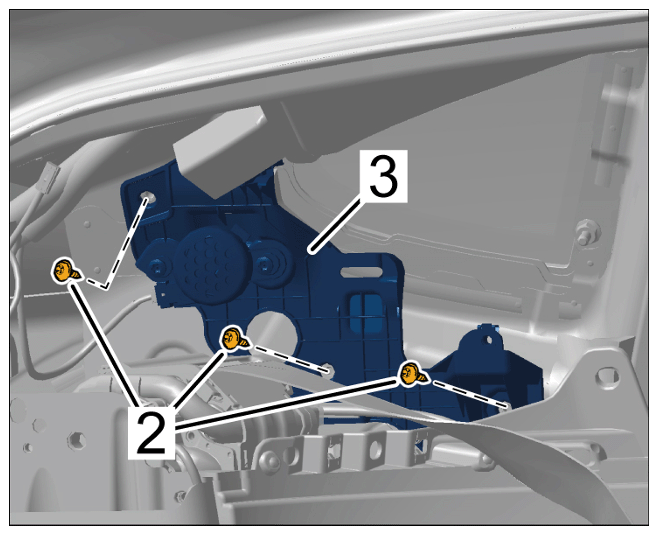

- Position holder -3-
with parking aid buzzer and screw in and tighten screws -2-
> Tightening torque 5.6 Nm (4 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screwing in screws

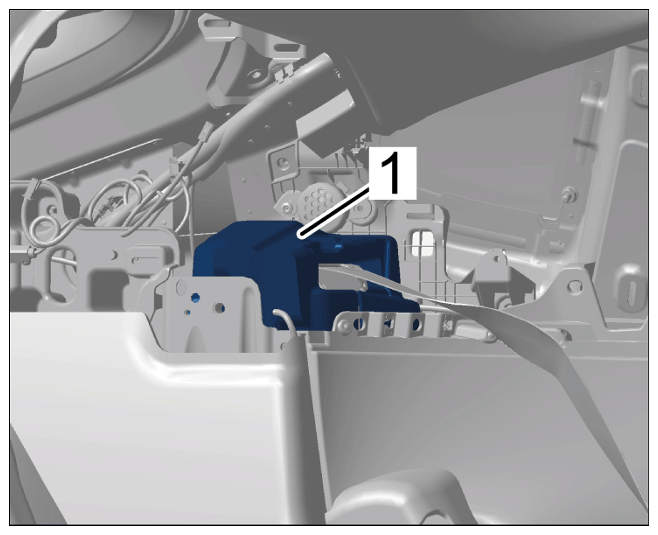

- Position foam part -1-
of belt retractor.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Positioning foam part
- Install headliner.
> WM, 708419 REMOVING AND INSTALLING ROOF TRIM PANEL
