Removing Rear Side Window Pane
WARNING: This page is about a different variant/trim than selected.
Information
The new rear side window is supplied complete with trim frame and trim.
Information
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

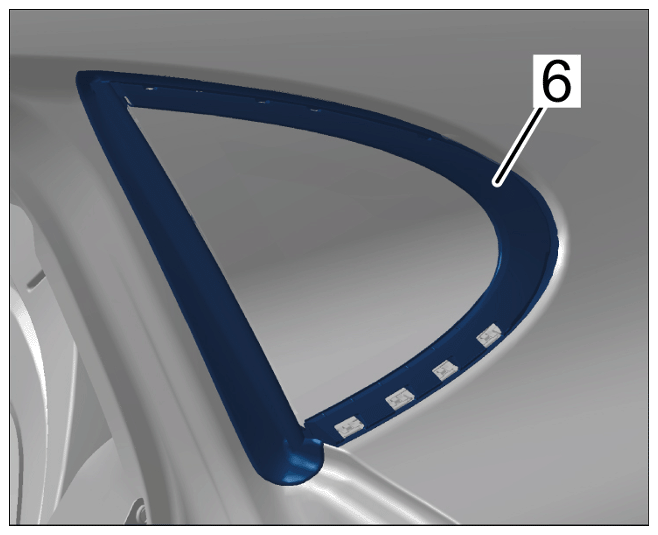

Seal on rear side window
- Do not damage the seal -6-
.

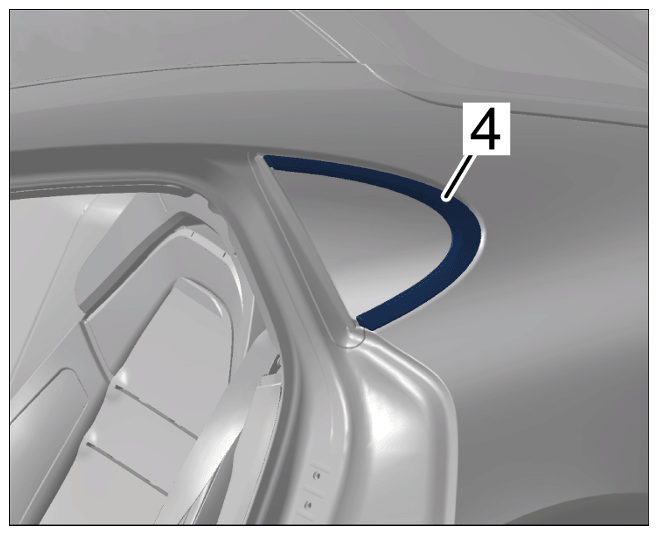

- Unclip trim frame -4-
using a plastic wedge.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unclipping trim frame

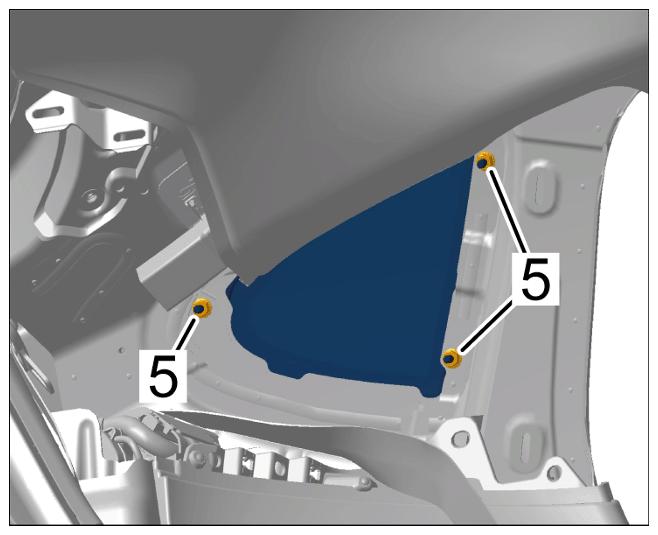

- Unscrew nuts -5-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrew nuts
- Loosen sealing lip.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

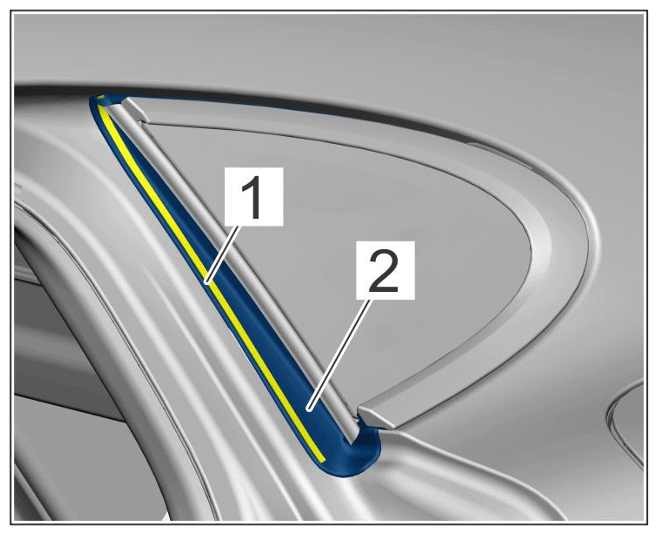

Bonding
- 3.1 Pull sealing lip -2-
off the bonding (double-sided adhesive tape) -1-
on the body.
- Take off side window pane.
