Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Detach the headliner.
> WM, 708419 REMOVING AND INSTALLING ROOF TRIM PANEL

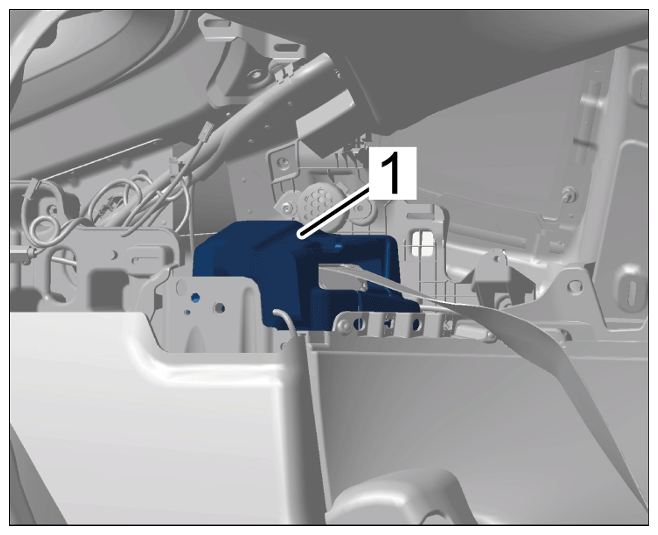

- Remove foam part -1-
from the belt retractor.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing foam part

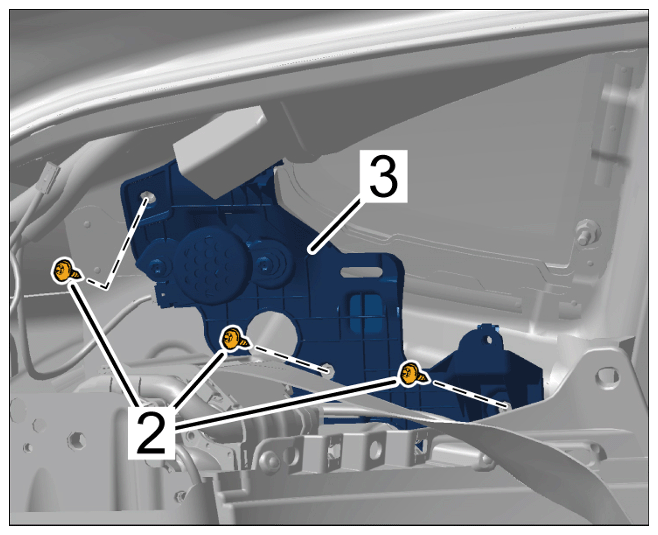

- Unscrew screws -2-
and move holder -3-
with parking aid buzzer aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws
