Installing Rear Side Window Pane

WARNING: This page is about a different variant/trim than selected.
  1. Clean the body in the front sealing lip area using isopropyl.
  2. Insert the rear side window pane into the window aperture.
  3. Set a uniform gap dimension by moving the side window.

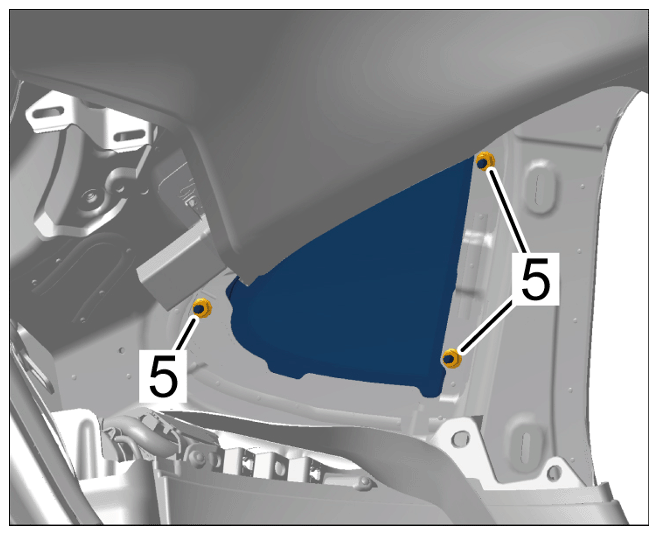

  4. Screw in and tighten nuts -5-  > Tightening torque 8 Nm (6 ftlb.)
    G15866125Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tighten nuts

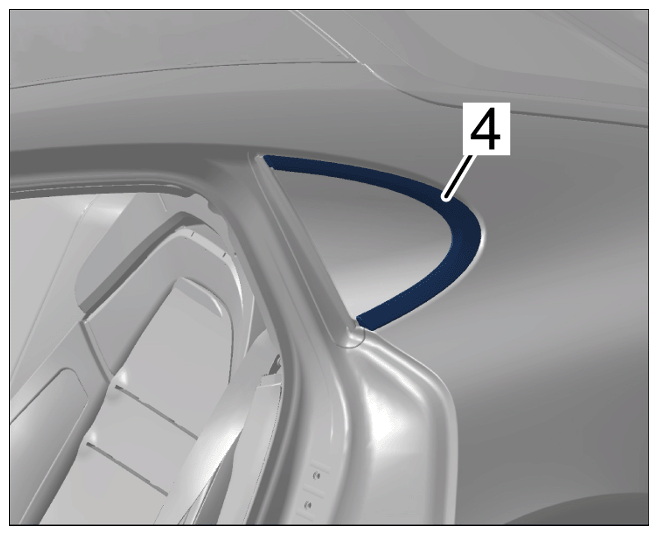

  5. Clip in trim frame -4-  .
    G15866126Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in trim frame

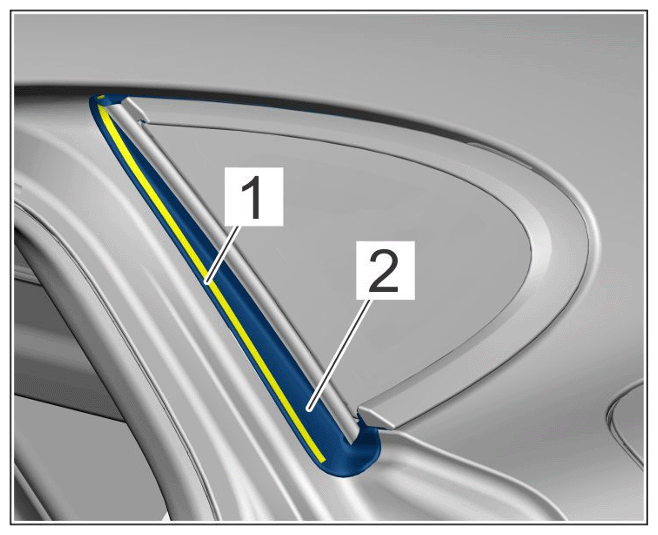

  6. Affix sealing lip.
    G15866127Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding

    1. 6.1 Pull off protective film -1-  on the back of the sealing lip -2-  .
    2. 6.2 Press sealing lip -2-  on evenly from the bottom up.
