Removing Rear Power Windows
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Installation position of rear power windows
Information
The adhesive pad cannot be pulled off without damaging it and must always be replaced.
- Pull off adhesive pad -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adhesive pad

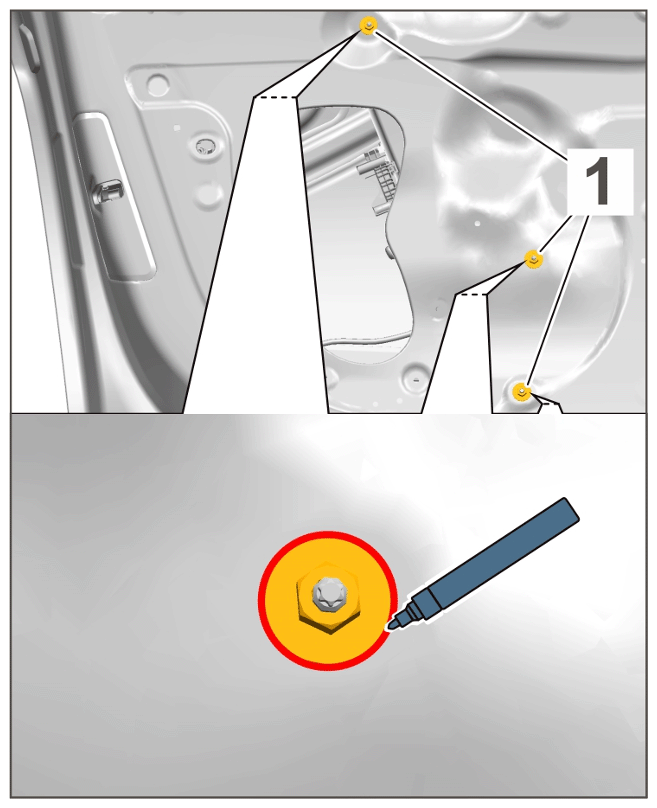

- Mark position of fastening nuts -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening nuts
- Unscrew fastening nuts -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening nuts
- Release and disconnect electric plug connection -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection
- Remove rear power windows mechanism.
