Removing Rear Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

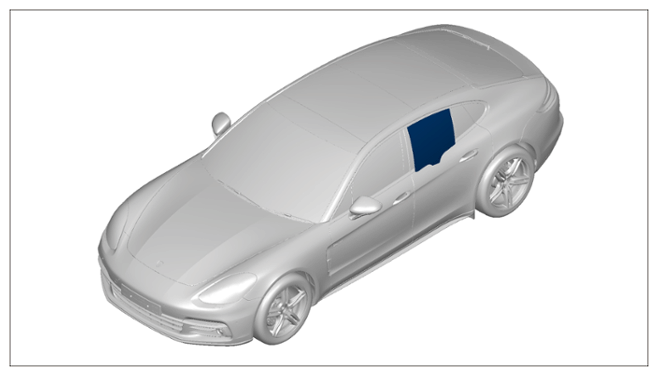

Installation position of rear door window

1. Roll the door window down.

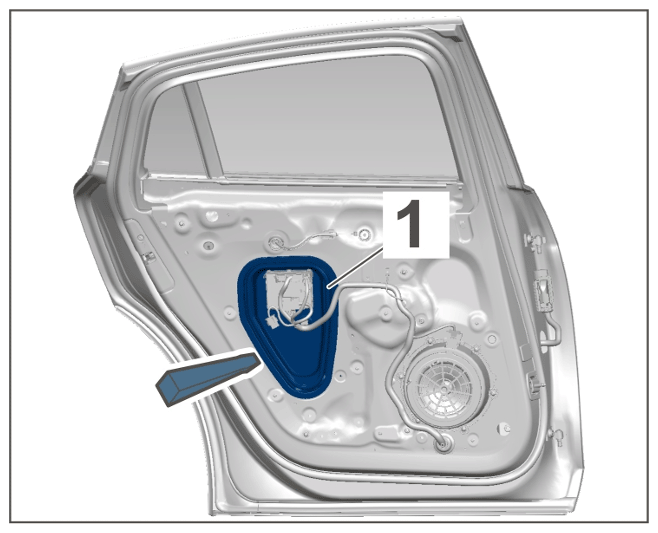

2. Lever off trim -1-  using a plastic wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Levering off trim

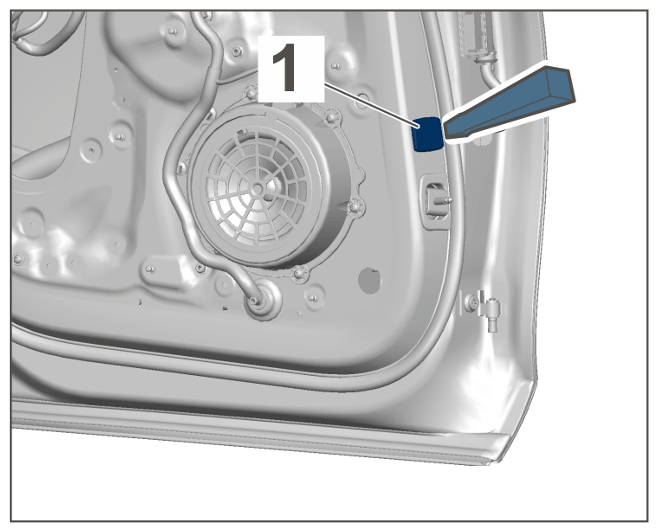

3. Lever off trim -1-  using a plastic wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Levering off trim

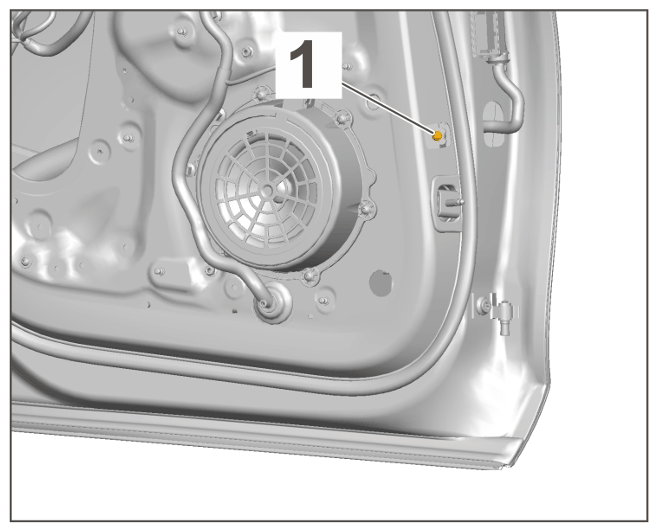

4. Unscrew lower fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw

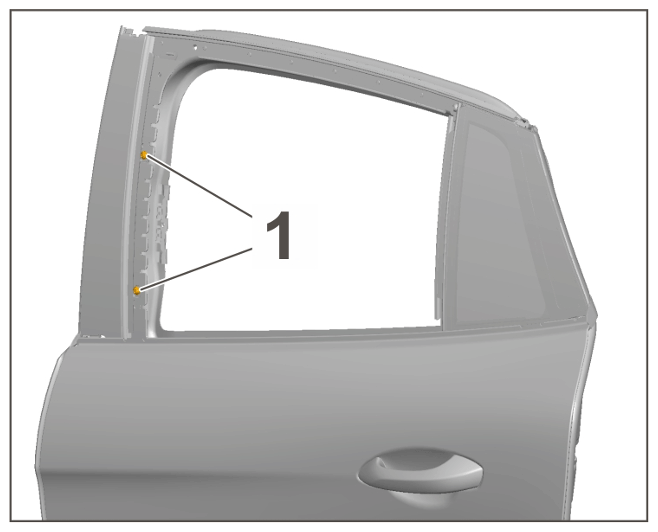

5. Unscrew outer fastening screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

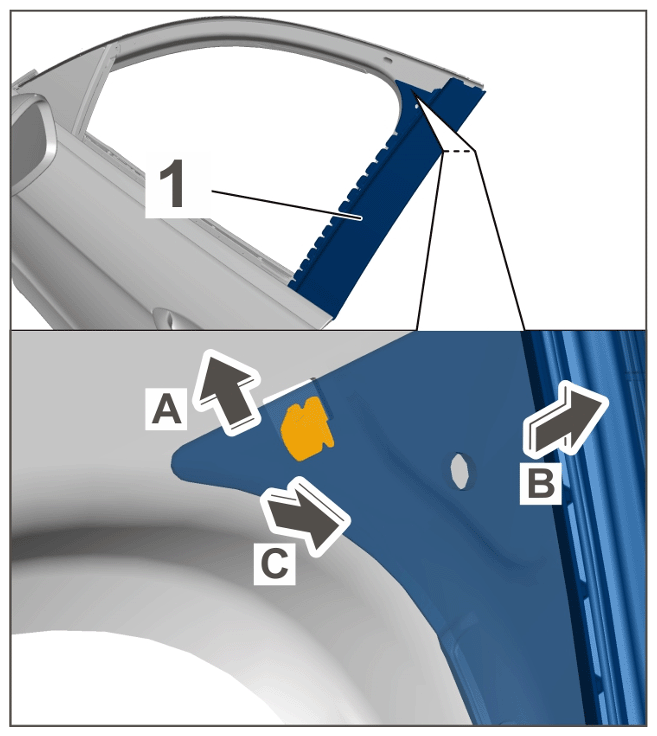

6. Disengage rear window guide -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening rear window guide (shown on front door)

   1. 6.1 Push rear window guide up slightly. -arrow A-
   2. 6.2 Push rear window guide slightly to the rear. -arrow B-
   3. 6.3 Pull rear window guide out slightly. -arrow C-
7. Move rear door window into position.
   1. 7.1 Connect wiring harness in door panel.

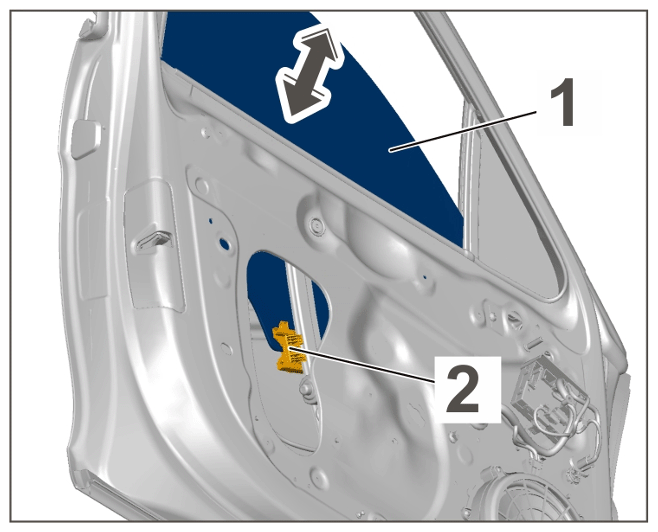

   2. 7.2 Raise the rear door window -1-  (-arrow-  ) until the fixing clip -2-  is easily accessible.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Moving rear door window into position (shown on front door)

   3. 7.3 Disconnect wiring harness in door panel.

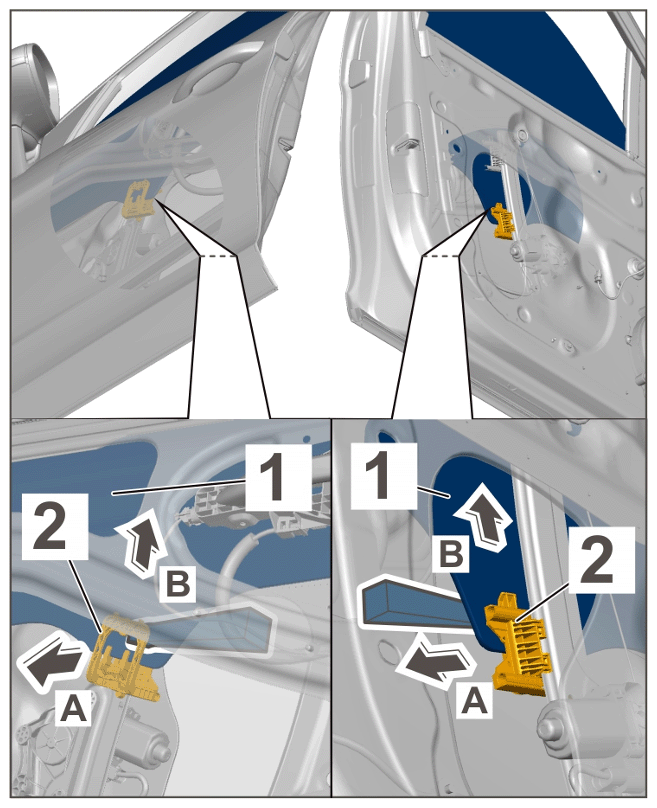

8. Use a plastic wedge to unclip the rear door window -1-  from the fixing clip -2-  (-arrow A-  ) and unclip rear door window -1-  by pulling it upwards. -arrow B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping rear door window (shown on front door)

9. Pull rear door window together with the rear window guide up and out.
10. Pull rear window guide off the rear door window.
