Removing Outer (Front) Window Channel Seal

WARNING: This page is about a different variant/trim than selected.
G15866068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

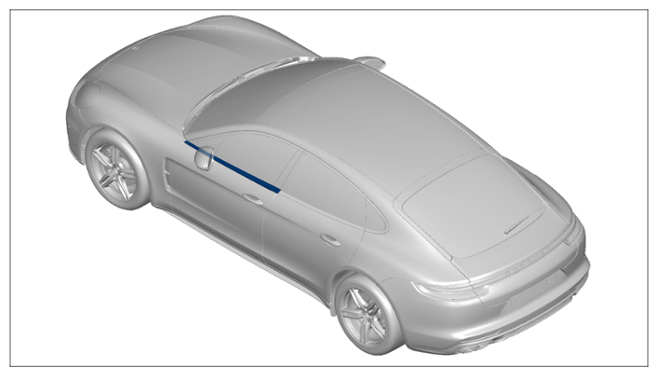

Installation position of outer (front) window channel seal

  1. Roll the door window down.
  2. Lever out outer (front) window channel seal -1-  with both hands -arrow-  .
G15866069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

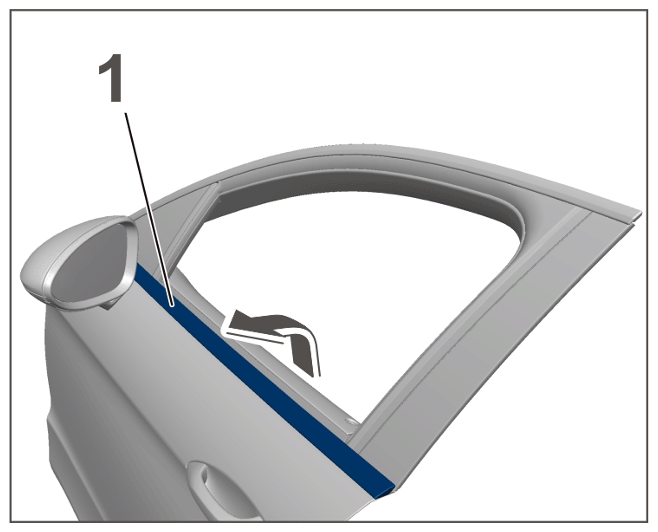

Outer (front) window channel seal
