Removing (Rear) Door Window Frame
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

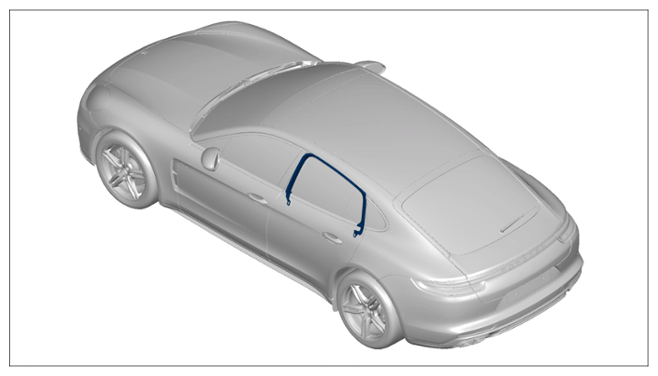

Installation position of front door window frame
- Unclip trim on corner window pane -1-
. -arrow-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

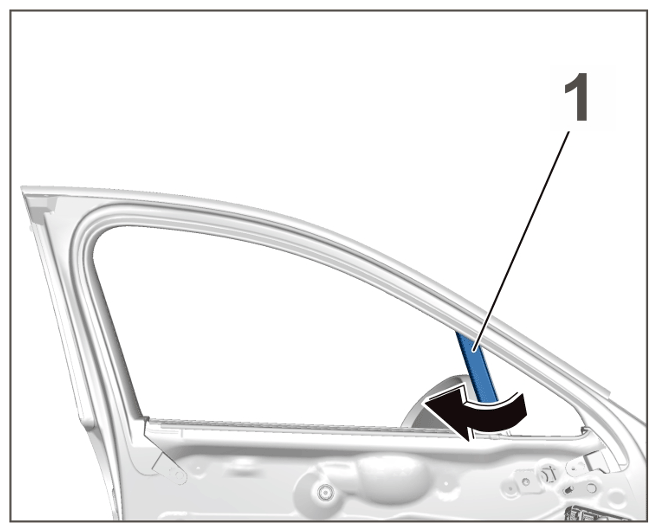

Corner window pane trim (shown on front door)
- Remove trim on corner window pane.
- Unhook rear door window frame -1-
from its mounting -2-
. -arrow-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

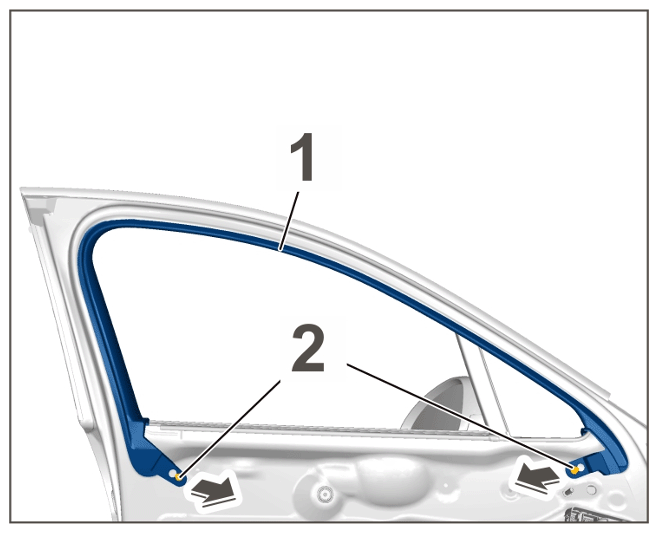

Door window frame (shown on front door)
- Remove rear door window frame.
