Removing (Front) Door Window Frame
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

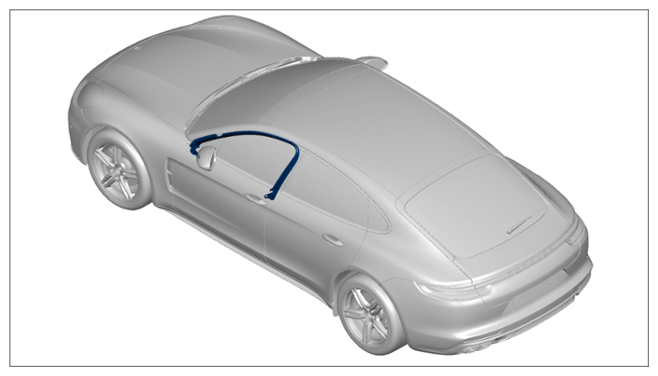

Installation position of (front) door window frame
- Unclip trim on corner window pane -1-
. -arrow-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Trim on corner window pane
- Remove trim on corner window pane.
- Unhook (front) door window frame -1-
from its mounting -2-
. -arrow-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

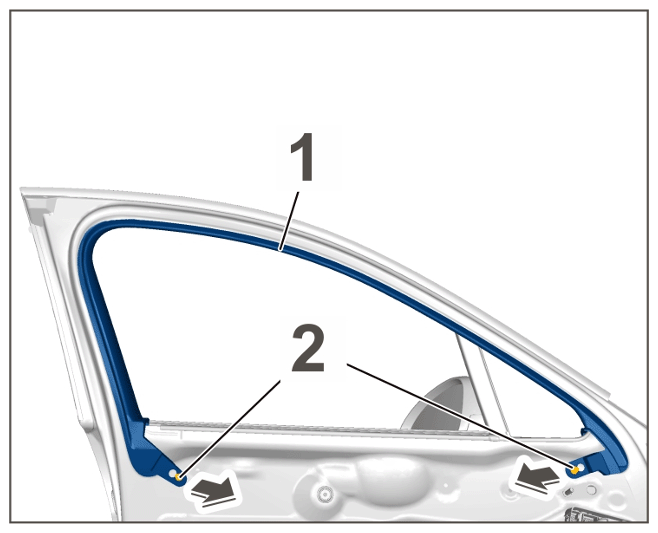

(Front) door window frame
- Remove (front) door window frame.
