Removing (Front) Seal

WARNING: This page is about a different variant/trim than selected.
G15866049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

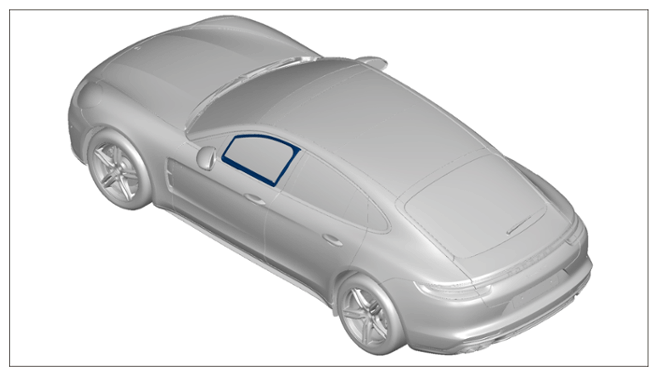

Installation position of (front) seal

  1. Pull off (front) seal -1-  at the corner window pane. -arrow A-
    G15866050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing (front) seal

  2. Unclip (front) seal -1-  in an upward direction. -arrows B-
    G15866051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing (front) seal

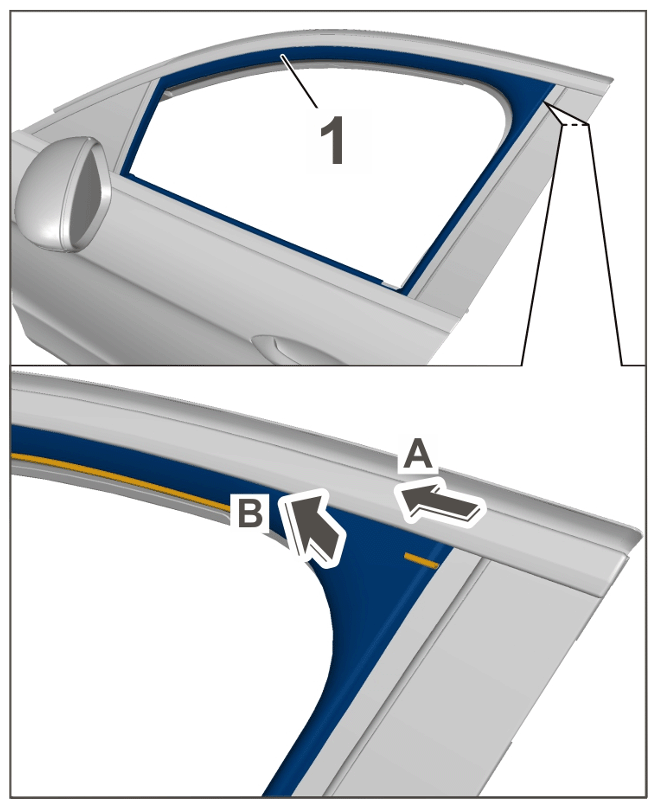

  3. Push upper corner of (front) seal -1-  in direction -arrow A-  and pull it off in direction -arrow B-  .
    G15866052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing (front) seal

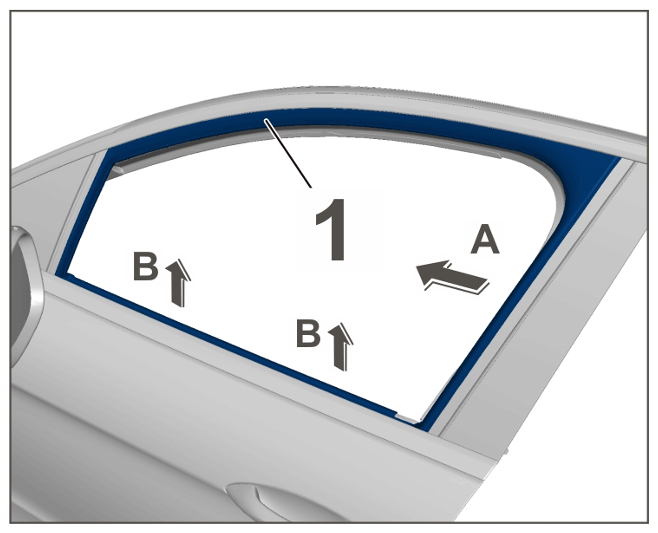

  4. Pull off rear part of (front) seal -1-  in direction -arrow A-  .
    G15866053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing (front) seal

  5. Remove (front) seal -1-  in direction -arrow B-  .
G15866054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing (front) seal
