Removing Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

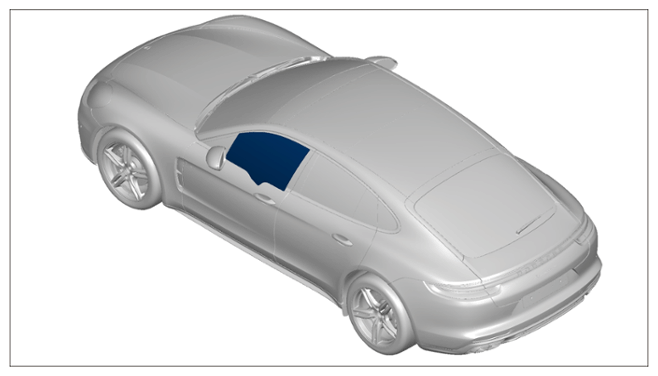

Installation position of front door window

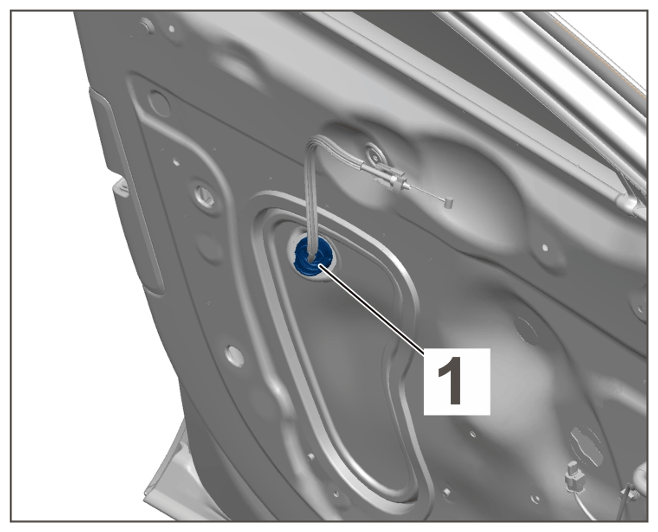

1. Unclip rubber sleeve for bowden cable -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping rubber sleeve

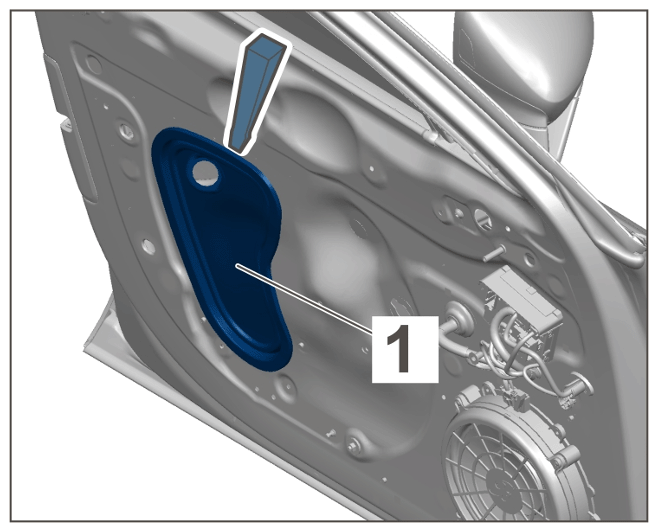

2. Lever off trim -1-  using a plastic wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Levering off trim

3. Move front door window into position.
   1. 3.1 Connect wiring harness in door panel.

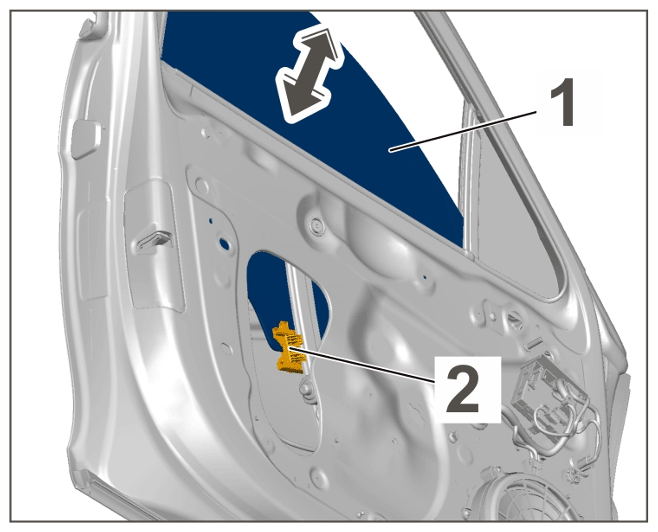

   2. 3.2 Raise the front door window -1-  (-arrow-  ) until the fixing clip -2-  is easily accessible.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Moving front door window into position

   3. 3.3 Disconnect wiring harness in door panel.

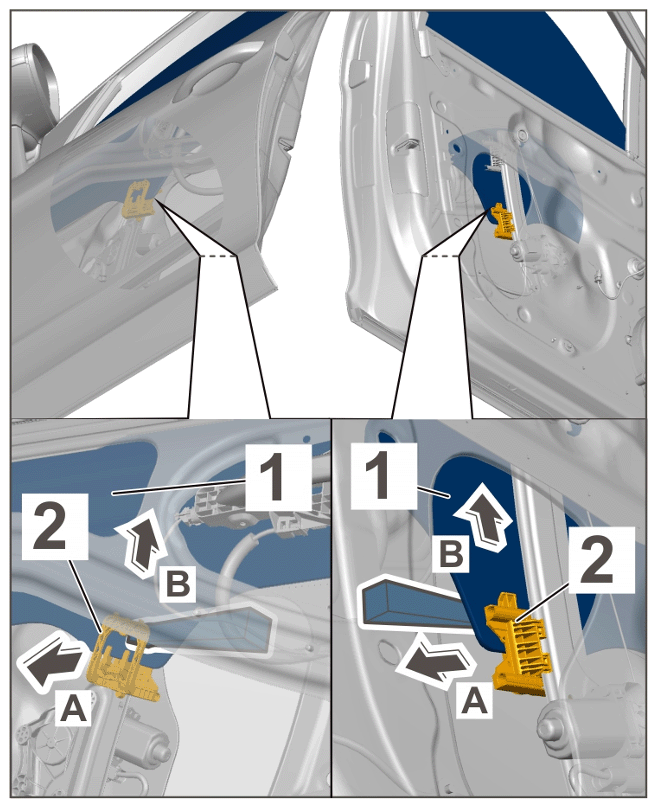

4. Use an assembly wedge to unclip the front door window -1-  from the fixing clip -2-  (-arrow A-  ) and remove front door window -1-  by pulling it upwards. -arrow B-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping front door window
