Removing Front Corner Window Pane

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

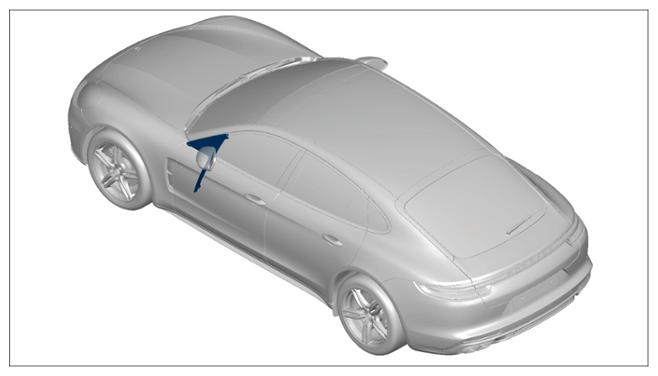

Installation position of front corner window pane

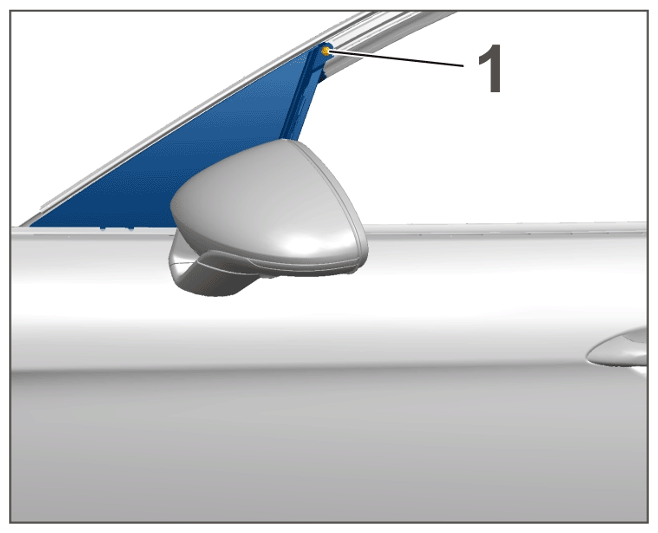

1. Unscrew outer fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outer fastening screw

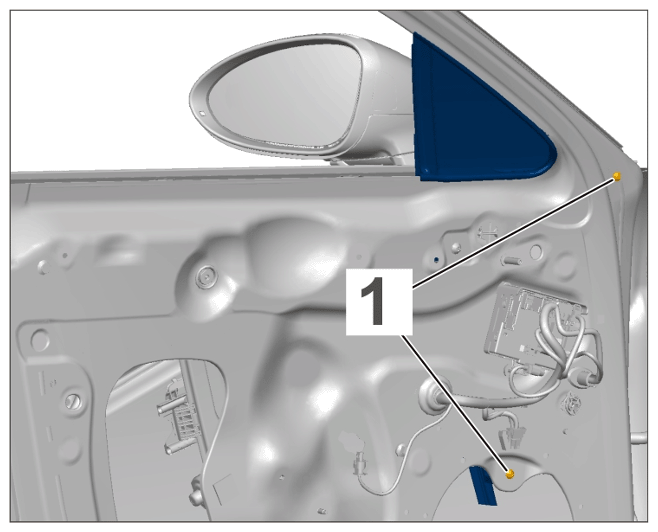

2. Unscrew fastening screws -1-  on the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner fastening screws

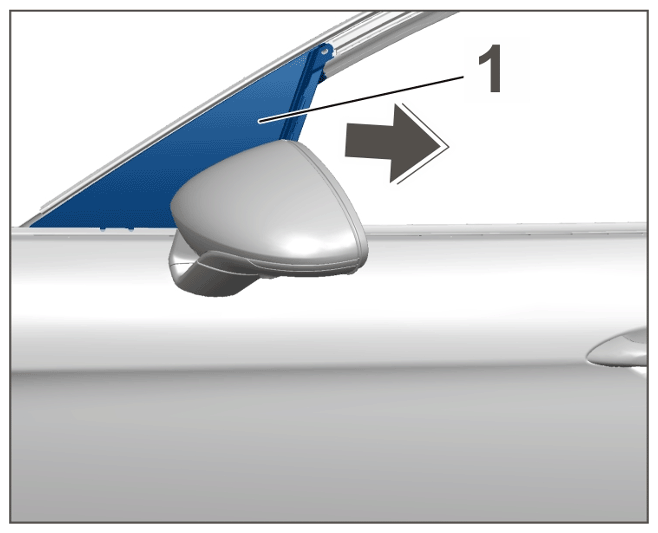

3. Move front corner window pane -1-  in X direction. -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening front corner window pane

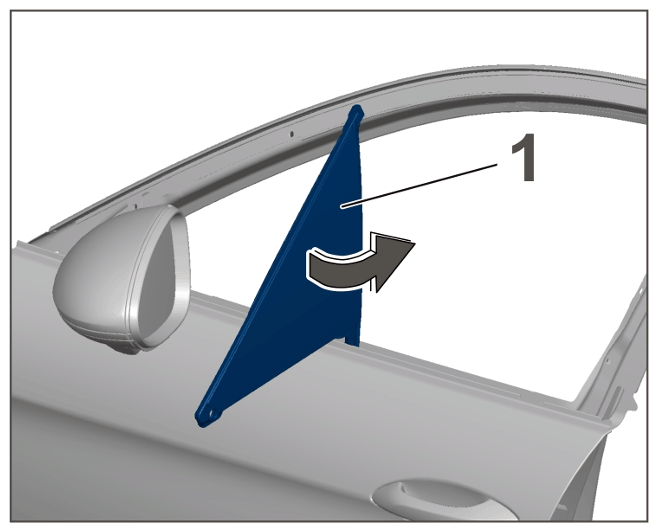

4. Turn front corner window pane -1-  around the Z-axis. -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Turning front corner window pane

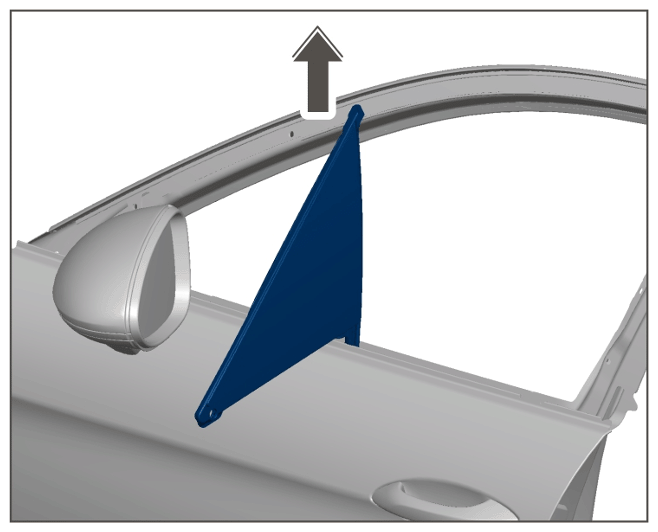

5. Remove front corner window pane -1-  . -arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front corner window pane
