Tools And Materials
WARNING: This page is about a different variant/trim than selected.
The following tools and materials are required for removing and installing the windscreen with 2-component window bonding agent:

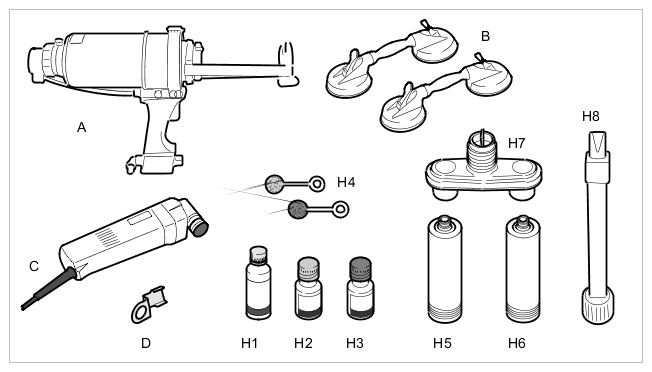

Tools and materials for removing and installing windscreen
| A | Double cartridge gun VAS 5237; see Workshop Equipment Information, Chapter 3.5 |
| B | Suction cups VAG 1344; see Workshop Equipment Information, Chapter 3.5 |
| C | Special electric cutter (fine) VAG 1561 A; see Workshop Equipment Information, Chapter 3.5 |
| D | Flashing knife, U-shaped 639.031.130.22; see Parts Information, Main Article 8 |
| H | 2-component window adhesive 000.043.300.94, contains set components H1-H8; see Parts Information, Main Article 8 |
| H1 | Cleaning solution |
| H2 | Primer |
| H3 | Activator |
| H4 | Swab |
| H5 | Cartridge, component A |
| H6 | Cartridge, component B |
| H7 | Mixing nozzle |
| H8 | Processing nozzle |

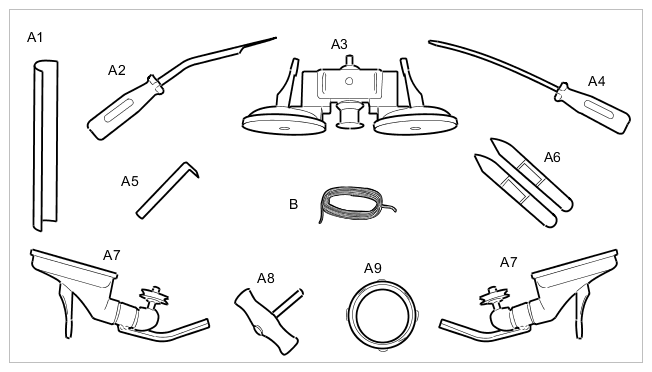

| A | Removal kit for flush bonded windows VAG 1474 B, contains set components A1-A9; see Workshop Equipment Information, Chapter 3.5 |
| B | Cutting thread; see Parts Information, Main Article 8 |
| A1 | Guide rail |
| A2 | Cutting tool |
| A3 | Spooling device |
| A4 | Awl |
| A5 | Guide rail |
| A6 | Filler |
| A7 | Steering roller with arm bracket |
| A8 | Handle |
| A9 | Cutting cord |
