Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Windscreen to roof (W1) | Gap dimension | 2.5 mm | +/- 0.5 mm | ||
|

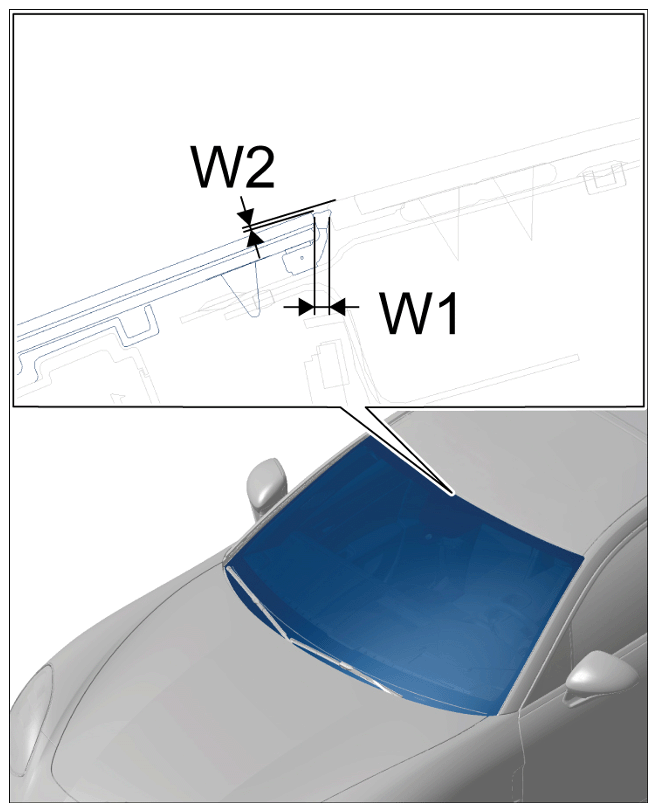

Gap dimensions from windscreen to roof |
|||||
| Windscreen to roof (W2) | Offset | -0.6 mm | +/- 0.5 mm | ||
|
Gap dimensions from windscreen to roof |
|||||
| Windscreen to panoramic roof (W2) | Offset | -0.6 mm | +/- 0.7 mm | ||
|
Gap dimensions from windscreen to roof |
|||||
| Cutting wire, total length | approx. 6 turns of the reel | Length | 6 m | ||
| Cutting wire, pull-in length | Length | 1 m | |||
| Applying adhesive | Application depth | 15 mm | |||
