Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Des... Type Basic val... Toleranc... Toleranc...
Screw on trailer hitch Item 1, always replace following removal Initial tightening 50 Nm (37 ftlb.)
G15866376Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch
Screw on trailer hitch Item 1, always replace following removal Final tightening + 120°
G15866377Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch
Screw on trailer hitch Item 2, always replace following removal Initial tightening 16 Nm (12 ftlb.)
G15866378Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch
Screw on trailer hitch Item 2, always replace following removal Final tightening + 90°

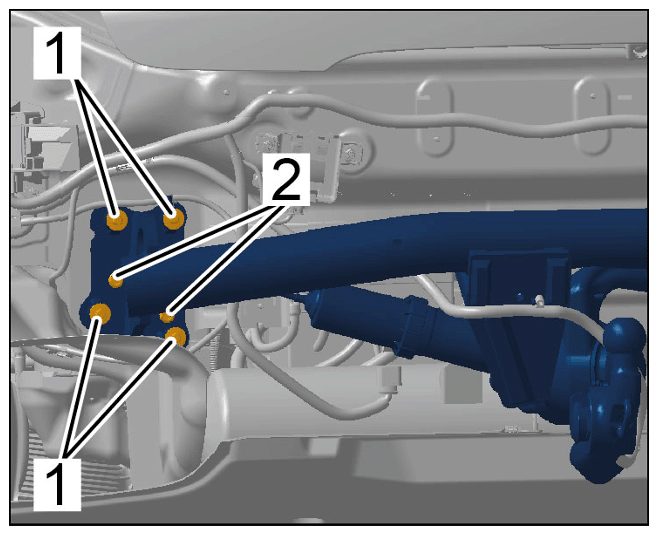

G15866379Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on trailer hitch
