Installing Trailer Hitch

Information

Some of the steps are shown only on one side of the vehicle. Complete the steps on both sides of the vehicle.

1. Installation is performed in reverse order.
2. Screw in new  screws -1-  at the left and right and tighten in the tightening sequence -1-8-  .

   > Initial tightening 50 Nm (37 ftlb.)

   > Final tightening + 120°

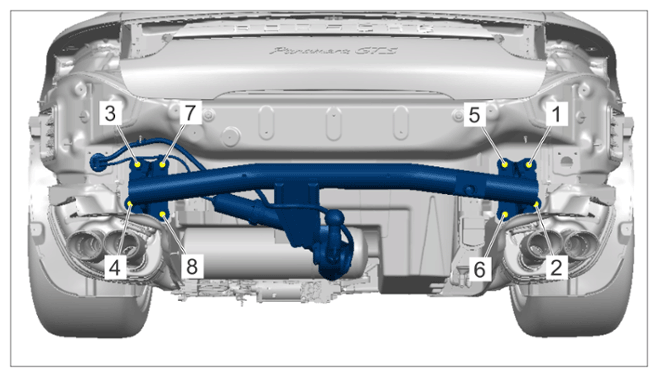

   Fig 1: Trailer Hitch Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence

3. Screw in and tighten new  screws -2-  .

   > Initial tightening 16 Nm (12 ftlb.)

   > Final tightening + 90°

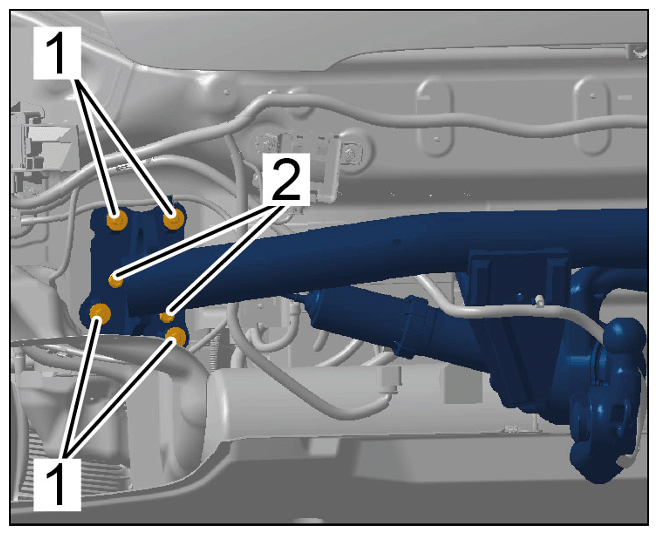

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing in and tightening screws
