Installing Rear-View Mirror

1. Position rear-view mirror. -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

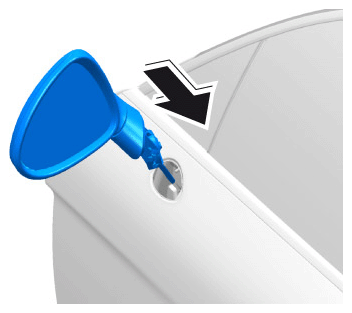

   Positioning rear-view mirror

   1. 1.1 Tie cord to the wire harness.
   2. 1.2 Pull wire harness for rear-view mirror into the door using the cord.
   3. 1.3 Detach the cord.
   4. 1.4 Check that the rubber seal is seated correctly.
2. Screw in and tighten fastening screw to > Tightening torque 23 Nm (17 ftlb.)  .

   Information

   The adhesive pad cannot be pulled off without damaging it and must always be replaced.

3. Stick new adhesive pad on firmly.
   1. 3.1 Position adhesive pad so that the assembly opening is completely covered.
   2. 3.2 Press adhesive pad on firmly.
4. Connect and lock the plug connection.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

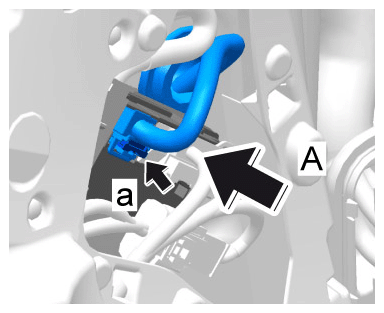

Connecting plug connection
