Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

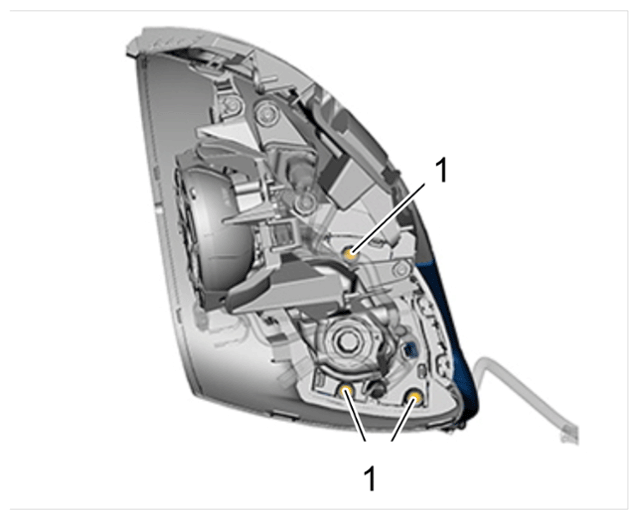

| Trim panel for mirror base |
Item 1 |
Tightening torque |
0.55 Nm (0.4 ftlb.) |
+/- 0.25 Nm (0.15 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |

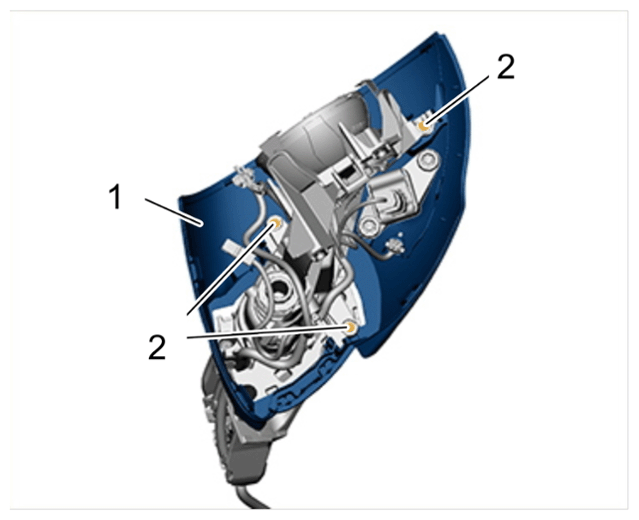

| Rear-view mirror housing (lower part) |
Item 2 |
Tightening torque |
0.55 Nm (0.4 ftlb.) |
+/- 0.25 Nm (0.15 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
