Removing Rear-View Mirror Housing (Lower Part)

1. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

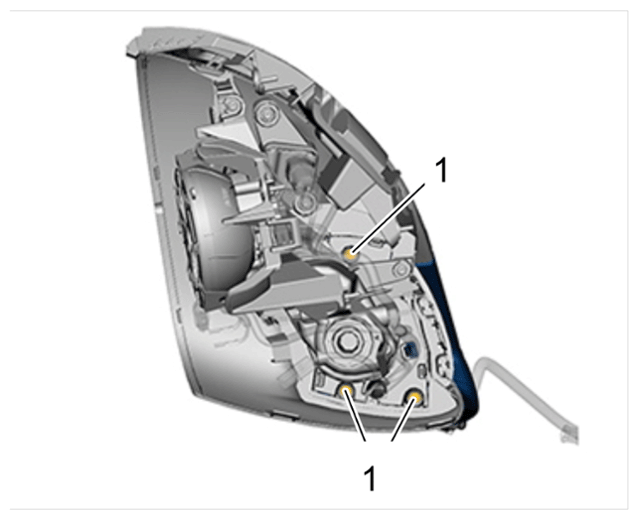

   Screws on trim panel for mirror base

2. Unclip trim panel for mirror base -1-  and remove it in a downward direction.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

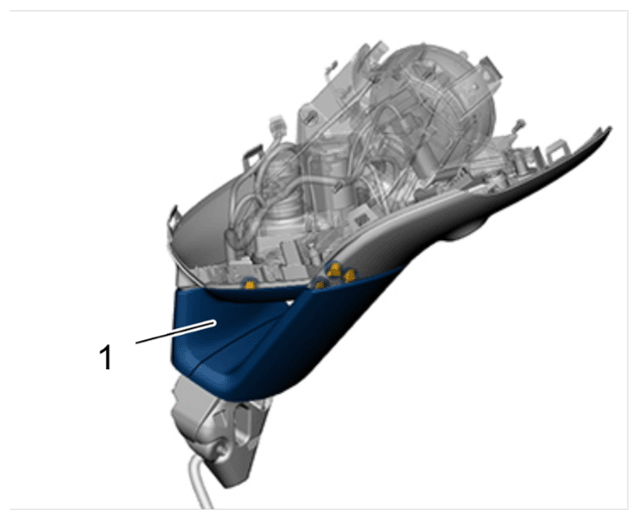

   Trim panel for mirror base

3. Unclip joint gap seal -1-  from mirror base.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

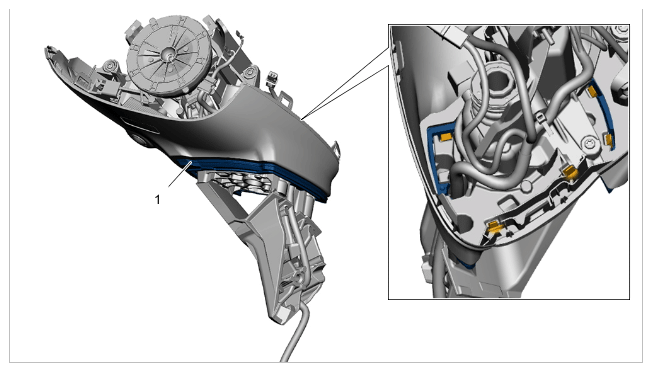

   Joint gap seal on mirror base

4. Release and disconnect electric plug connections -1 and 2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

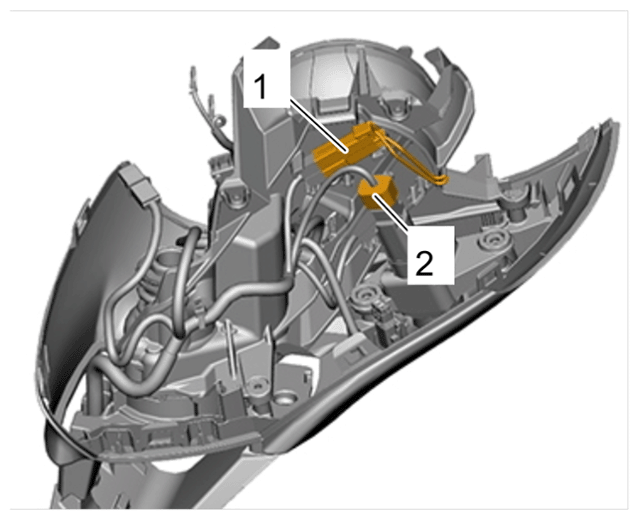

   Electric plug connections

5. Remove rear-view mirror housing (lower part) -1-  .
   1. 5.1 Unscrew and remove screws -2-  .
   2. 5.2 Remove rear-view mirror housing (lower part) -1-  by pulling it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

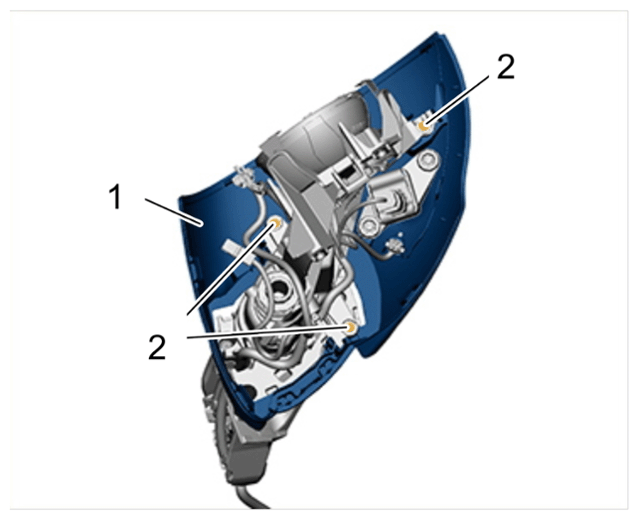

Screws on rear-view mirror housing (lower part)
