Removing Mirror Glass
WARNING: This page is about a different variant/trim than selected.

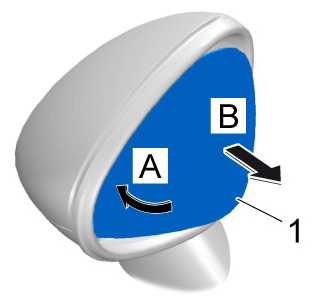

- Press the outside of the mirror glass inwards -A-
and carefully pull it out on the inside -B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing mirror glass

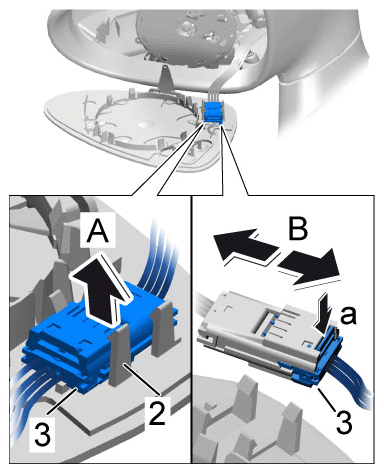

- Unclip plug connection -3-
from the bracket -2-
(-A-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Disconnecting plug connection
- Release plug connection -3-
(-a-
) and disconnect it -B-
.
