Installing Mirror Glass
WARNING: This page is about a different variant/trim than selected.

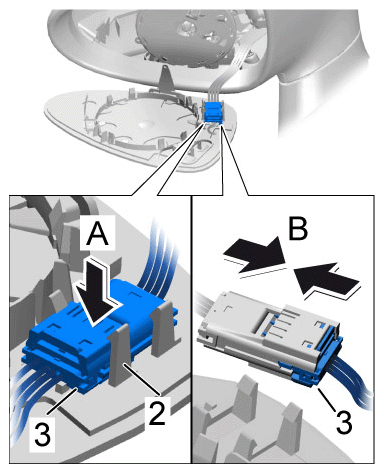

- Press plug connection -3-
together -B-
until it clicks into place.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Connecting plug connection
- Clip plug connection -3-
into the bracket -2-
(-A-
).

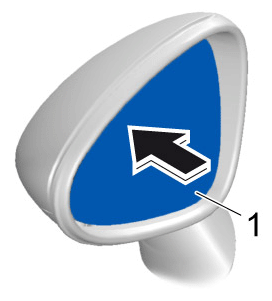

- Clip in mirror glass -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Installing mirror glass
- Perform a function test.
