Subsequent Work

Information

The steps are described only for the left-hand side of the vehicle. Complete some steps on both sides of the vehicle.

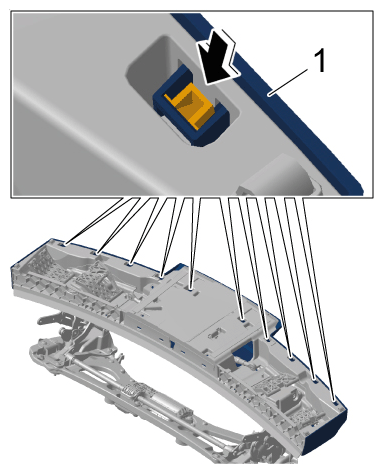

1. Clip in trim on lower part of spoiler -1-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing trim on lower part of spoiler

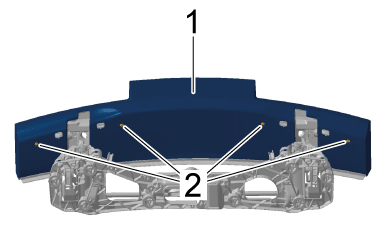

2. Screw in and tighten screws -2-  on trim for lower part of spoiler -1-  > Tightening torque 1.3 Nm (1 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing in and tightening screws on trim for lower part of spoiler

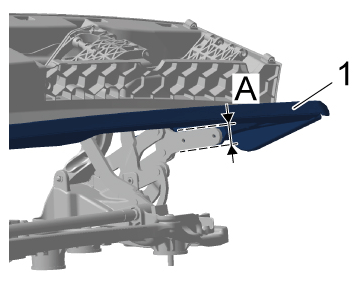

3. Install closing element of rear spoiler (wing) -1-  according to the markings applied earlier -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing closing element of rear spoiler (wing)

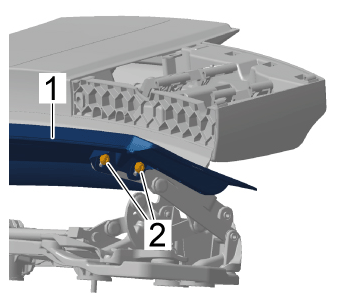

4. Screw in and tighten screws -2-  on both spoiler drives -1-  > Tightening torque 4.5 Nm (3.3 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing closing element of rear spoiler (wing)

5. Install centre rear spoiler trim.

   > WM, 66581905 REMOVING AND INSTALLING REAR SPOILER TRIM

6. Install rear spoiler.

   > WM, 66581930 REMOVING AND INSTALLING REAR SPOILER
