Replacing Rear Spoiler Seal
WARNING: This page is about a different variant/trim than selected.

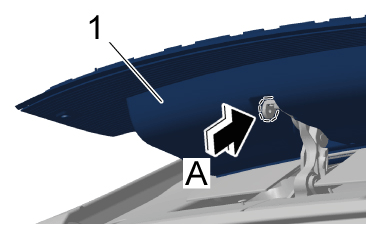

- Mark installation position of lower part of spoiler -1-
(-arrow A-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Marking installation position of lower part of spoiler

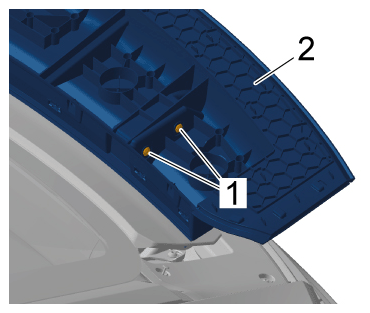

- Unscrew screws -1-
and remove lower part of spoiler -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws

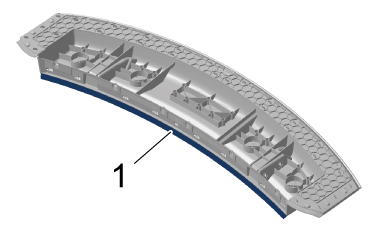

- Pull off seal on rear spoiler -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulling off seal
